npu-dra-plugin ​

Feature Introduction ​

The traditional Device Plugin resource scheduling approach requests device resources based on "countable" interfaces, where users can only request devices in fixed quantities. This makes it difficult to perceive and utilize device internal characteristics, and impossible to perform fine-grained scheduling based on actual workload hardware requirements.

To address this challenge, DRA (Dynamic Resource Allocation) technology was developed, providing Kubernetes with a more flexible and semantically richer resource scheduling mechanism. Based on the Kubernetes native DRA architecture, we have completed deep adaptation for Ascend NPU devices, enabling users to not only request NPU devices but also make scheduling decisions based on device attributes, computing power specifications, and other metadata, thereby achieving higher-performance and higher-quality heterogeneous computing resource scheduling.

Application Scenarios ​

Users deploy business Pods and use ResourceClaim for resource requests.

Capability Scope ​

• Supports resource discovery and reporting for Ascend 910B, 910C, and 310P series NPU devices.
• Supports device filtering through DeviceClass/CEL.
• Supports resource requests using ResourceClaim/ResourceClaimTemplate, enabling binding of business Pods with ResourceSlice.
• Supports injecting devices into containers through CDI.
• Supports 910B hard partition (fixed template vNPU) functionality, which can automatically match templates based on requested memory size, partitioning a full card into multiple vNPU instances for different business Pods.

Highlight Features ​

Completed the adaptation of Ascend NPU devices with DRA technology, supporting 910B, 910C, and 310P chip models; supports 910B hard partition (fixed template vNPU) scheduling capability.

Implementation Principle ​

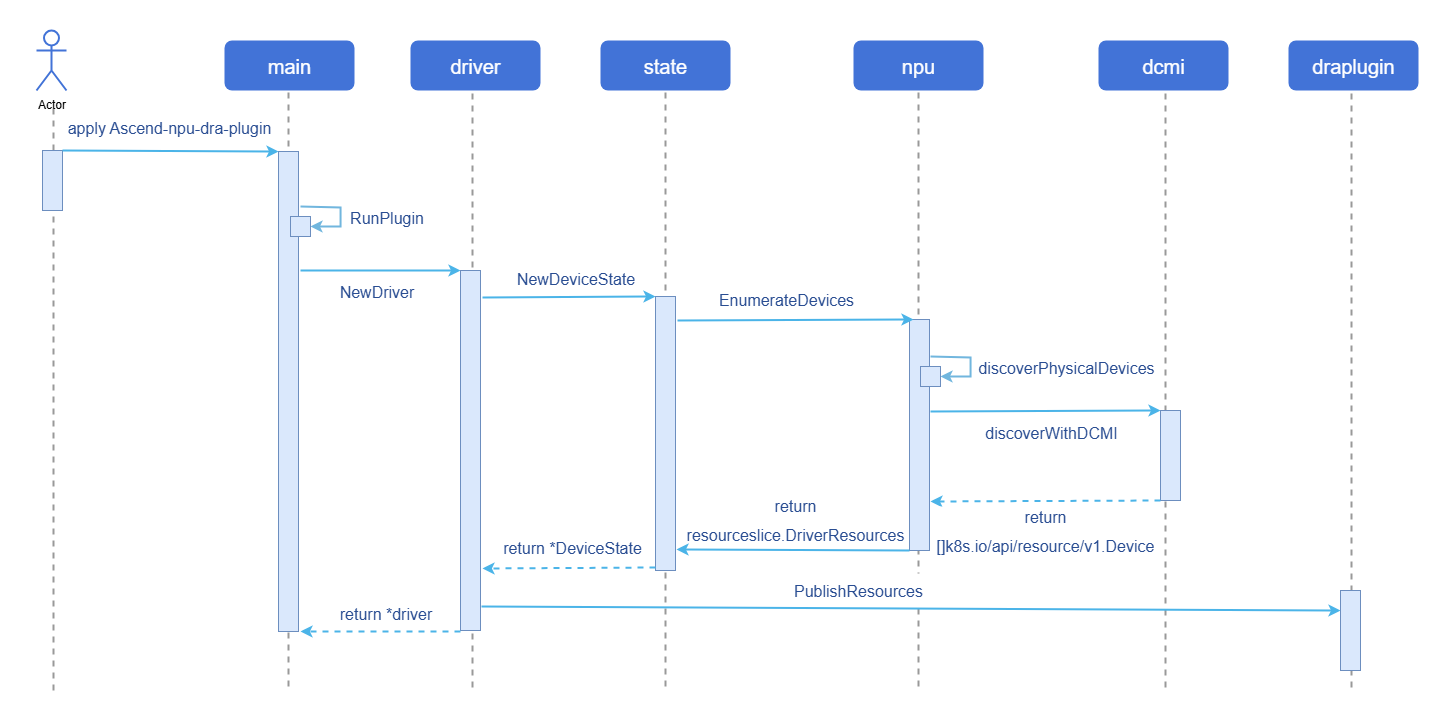

Figure 1 Device Discovery and Reporting Implementation Principle Diagram

Relationship with Related Features ​

Depends on Ascend NPU device interfaces.

Installation ​

• When not using the hard partition feature, deploy Ascend-npu-dra-plugin through DaemonSet. For details, see Operation Steps.
• When using the hard partition feature (only supported on 910B), deployment must be done as a host process and cannot use DaemonSet. For details, see Hard Partition Deployment Steps.

Using npu-dra ​

Prerequisites ​

• Kubernetes uses the openFuyao community recommended version v1.34.3.

• containerd must use version v1.7.0 or above; the openFuyao community default version v2.1.1 is recommended.

Background Information ​

This is used for adapting Ascend NPU devices with DRA technology. Through the Operation Steps below, you can execute the npu-smi info command in the container corresponding to the business Pod, completing the full process of device discovery, reporting, allocation, and usage.

Usage Limitations ​

• The hard partition (fixed template vNPU) feature only supports Ascend 910B series chips; 910C and 310P do not currently support hard partitioning.
• When using the hard partition feature, the driver cannot be deployed using DaemonSet and must be started as a host process. This is because hard partition operation interfaces can only be executed on the host and cannot be called from within a container.

Operation Steps ​

1. Deploy Ascend-npu-dra-plugin through DaemonSet.

   yaml

   apiVersion: v1
   kind: Namespace
   metadata:
     name: ascend-dra
   ---
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: ascend-npu-dra-kubeletplugin
     namespace: ascend-dra
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: ClusterRole
   metadata:
     name: ascend-npu-dra-kubeletplugin
   rules:
   - apiGroups: [""]
     resources: ["nodes"]
     verbs: ["get"]
   - apiGroups: ["resource.k8s.io"]
     resources: ["resourceslices", "resourceclaims"]
     verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: ClusterRoleBinding
   metadata:
     name: ascend-npu-dra-kubeletplugin
   roleRef:
     apiGroup: rbac.authorization.k8s.io
     kind: ClusterRole
     name: ascend-npu-dra-kubeletplugin
   subjects:
   - kind: ServiceAccount
     name: ascend-npu-dra-kubeletplugin
     namespace: ascend-dra
   ---
   apiVersion: apps/v1
   kind: DaemonSet
   metadata:
     name: ascend-npu-dra-kubeletplugin
     namespace: ascend-dra
   spec:
     selector:
       matchLabels:
         app: ascend-npu-dra-kubeletplugin
     template:
       metadata:
         labels:
           app: ascend-npu-dra-kubeletplugin
       spec:
         serviceAccountName: ascend-npu-dra-kubeletplugin
         hostNetwork: true
         dnsPolicy: ClusterFirstWithHostNet
         tolerations:
         - operator: Exists
         containers:
         - name: kubeletplugin
           image: cr.openfuyao.cn/openfuyao/npu-dra-plugin:latest
           imagePullPolicy: IfNotPresent
           securityContext:
             privileged: true
           args:
           - --node-name=$(NODE_NAME)
           - --device-profile=npu
           - --driver-name=npu.huawei.com
           - --kubelet-registrar-directory-path=/var/lib/kubelet/plugins_registry
           - --kubelet-plugins-directory-path=/var/lib/kubelet/plugins
           - --cdi-root=/etc/cdi
           - --healthcheck-port=-1
           env:
           - name: NODE_NAME
             valueFrom:
               fieldRef:
                 fieldPath: spec.nodeName
           - name: LD_LIBRARY_PATH
             value: /usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64
           volumeMounts:
           - name: kubelet-plugins-registry
             mountPath: /var/lib/kubelet/plugins_registry
           - name: kubelet-plugins
             mountPath: /var/lib/kubelet/plugins
           - name: cdi
             mountPath: /etc/cdi
           - name: dev
             mountPath: /dev
           - name: sys
             mountPath: /sys
             readOnly: true
           - name: ascend-driver
             mountPath: /usr/local/Ascend
             readOnly: true
           - name: npu-smi-command
             mountPath: /usr/local/bin/npu-smi
             readOnly: true
         volumes:
         - name: kubelet-plugins-registry
           hostPath:
             path: /var/lib/kubelet/plugins_registry
             type: DirectoryOrCreate
         - name: kubelet-plugins
           hostPath:
             path: /var/lib/kubelet/plugins
             type: DirectoryOrCreate
         - name: cdi
           hostPath:
             path: /etc/cdi
             type: DirectoryOrCreate
         - name: dev
           hostPath:
             path: /dev
             type: Directory
         - name: sys
           hostPath:
             path: /sys
             type: Directory
         - name: ascend-driver
           hostPath:
             path: /usr/local/Ascend
             type: Directory
         - name: npu-smi-command
           hostPath:
             path: /usr/local/bin/npu-smi
             type: File

2. Deploy DeviceClass.

   yaml

   apiVersion: resource.k8s.io/v1
   kind: DeviceClass
   metadata:
     name: npu.huawei.com
   spec:
     selectors:
     - cel:
         expression: |-
           device.driver == "npu.huawei.com"

   Note:

   The above configuration uses CEL expressions to filter devices where driver is npu.huawei.com.

3. Define ResourceClaim/ResourceClaimTemplate and deploy the business Pod.

   • ResourceClaimTemplate usage example.

     yaml

     apiVersion: resource.k8s.io/v1
     kind: ResourceClaimTemplate
     metadata:
       name: npu-claim-template
       namespace: ascend-dra
     spec:
       spec:
         devices:
           requests:
           - name: npu
             exactly:
               deviceClassName: npu.huawei.com
     ---
     apiVersion: v1
     kind: Pod
     metadata:
       name: npu-pod
       namespace: ascend-dra
     spec:
       resourceClaims:
       - name: npu
         resourceClaimTemplateName: npu-claim-template
       containers:
       - name: app
         image: docker.io/library/ubuntu:22.04
         imagePullPolicy: IfNotPresent
         command: ["sleep", "3600"]
         resources:
           claims:
           - name: npu
         env:
         - name: LD_LIBRARY_PATH
           value: /usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64
         volumeMounts:
         - name: ascend-driver
           mountPath: /usr/local/Ascend
           readOnly: true
         - name: npu-smi-command
           mountPath: /usr/local/bin/npu-smi
           readOnly: true
       volumes:
       - name: ascend-driver
         hostPath:
           path: /usr/local/Ascend
           type: Directory
       - name: npu-smi-command
         hostPath:
           path: /usr/local/bin/npu-smi
           type: File

   • ResourceClaim usage example.

     yaml

     apiVersion: resource.k8s.io/v1
     kind: ResourceClaim
     metadata:
       name: npu-numa-claim
       namespace: ascend-dra
     spec:
       devices:
         requests:
         - name: npu
           exactly:
             deviceClassName: npu.huawei.com
             allocationMode: All
             selectors:
             - cel:
                 expression: |-
                   device.attributes["npu.huawei.com"].numaNode == 6
     ---
     apiVersion: v1
     kind: Pod
     metadata:
       name: npu-numa-pod
       namespace: ascend-dra
     spec:
       resourceClaims:
       - name: npu
         resourceClaimName: npu-numa-claim
       containers:
       - name: app
         image: docker.io/library/ubuntu:22.04
         imagePullPolicy: IfNotPresent
         command: ["sleep", "3600"]
         resources:
           claims:
           - name: npu
         env:
         - name: LD_LIBRARY_PATH
           value: /usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64
         volumeMounts:
         - name: ascend-driver
           mountPath: /usr/local/Ascend
           readOnly: true
         - name: npu-smi-command
           mountPath: /usr/local/bin/npu-smi
           readOnly: true
       volumes:
       - name: ascend-driver
         hostPath:
           path: /usr/local/Ascend
           type: Directory
       - name: npu-smi-command
         hostPath:
           path: /usr/local/bin/npu-smi
           type: File

     Note:

     Both ResourceClaimTemplate and ResourceClaim can use CEL expressions for device filtering; here only the usage in ResourceClaim is shown as an example.

Hard Partition Deployment Steps ​

Notice:

When using the hard partition feature (only supported on 910B), the driver must run as a host process and cannot be deployed using DaemonSet. Hard partition operation interfaces can only be executed on the host and cannot be called from within a container.

1. Compile the driver binary on the Ascend NPU host (requires Go 1.24+, GCC, and Ascend NPU driver installed).

   bash

   git clone -b release-1.0.x https://gitcode.com/openFuyao/npu-dra-plugin.git
   cd npu-dra-plugin/Ascend-npu-dra-plugin
   go build -o ascend-npu-dra-kubeletplugin ./cmd/ascend-npu-dra-kubeletplugin

2. Start the driver process directly on the host, with the additional --enable-hard-vnpu parameter.

   bash

   ./ascend-npu-dra-kubeletplugin \
     --node-name=<node-name> \
     --device-profile=npu \
     --driver-name=npu.huawei.com \
     --kubelet-registrar-directory-path=/var/lib/kubelet/plugins_registry \
     --kubelet-plugins-directory-path=/var/lib/kubelet/plugins \
     --cdi-root=/etc/cdi \
     --healthcheck-port=-1 \
     --enable-hard-vnpu=true \
     --kubeconfig=/root/.kube/config

   Note:

   You can also enable the hard partition switch through the environment variable ENABLE_HARD_VNPU=true.

3. Deploy DeviceClass.

   yaml

   apiVersion: resource.k8s.io/v1
   kind: DeviceClass
   metadata:
     name: npu.huawei.com
   spec:
     selectors:
     - cel:
         expression: |-
           device.driver == "npu.huawei.com"

4. Create Namespace, ResourceClaimTemplate, and business Pod, specifying the required memory size through memCapacity. The driver will automatically match the most suitable vNPU template based on the requested memory.

   yaml

   apiVersion: v1
   kind: Namespace
   metadata:
     name: ascend-dra
   ---
   apiVersion: resource.k8s.io/v1
   kind: ResourceClaimTemplate
   metadata:
     name: vnpu-claim-template
     namespace: ascend-dra
   spec:
     metadata:
       annotations:
         npu.huawei.com/strategy: "SpacePartitioning"
     spec:
       devices:
         requests:
         - name: npu
           exactly:
             deviceClassName: npu.huawei.com
             capacity:
               requests:
                 memCapacity: 10000   # Request approximately 10Gi memory, automatically matches vir10_3c_16g template
   ---
   apiVersion: v1
   kind: Pod
   metadata:
     name: vnpu-pod
     namespace: ascend-dra
   spec:
     resourceClaims:
     - name: npu
       resourceClaimTemplateName: vnpu-claim-template
     containers:
     - name: app
       image: docker.io/library/ubuntu:22.04
       imagePullPolicy: IfNotPresent
       command: ["sleep", "3600"]
       resources:
         claims:
         - name: npu
       env:
       - name: LD_LIBRARY_PATH
         value: /usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64
       volumeMounts:
       - name: ascend-driver
         mountPath: /usr/local/Ascend
         readOnly: true
       - name: npu-smi-command
         mountPath: /usr/local/bin/npu-smi
         readOnly: true
     volumes:
     - name: ascend-driver
       hostPath:
         path: /usr/local/Ascend
         type: Directory
     - name: npu-smi-command
       hostPath:
         path: /usr/local/bin/npu-smi
         type: File

   The 910B hard partition memory request and template mapping relationship is as follows:

   Table 1 910B Hard Partition Memory-Template Mapping Table

   Memory Request Range	Auto-Matched Template	Actual Allocation
   ≤ 8Gi	vir05_1c_8g	8G / 1 AI Core
   8Gi ~ 16Gi	vir10_3c_16g	16G / 3 AI Core

Related Operations ​

Query DRA-related CR Information

• Query all ResourceSlice resources.

  bash

  kubectl get resourceslices

• Query information for a specific ResourceSlice.

  bash

  kubectl get resourceslices <resourceslice_name> -o yaml

  At this point, you can view all discovered device information, which can be used in CEL expressions for device filtering. An example is shown below.

  yaml

  apiVersion: resource.k8s.io/v1
  kind: ResourceSlice
  metadata:
    creationTimestamp: "2026-02-27T01:55:37Z"
    generateName: master-npu.huawei.com-
    generation: 1
    name: master-npu.huawei.com-9gv8l
    ownerReferences:
    - apiVersion: v1
      controller: true
      kind: Node
      name: master
      uid: 6ef76e72-da36-44e3-b9c3-93f44684a859
    resourceVersion: "2225369"
    uid: 0c1b399e-4fa8-4279-93f8-b92a1faeff6f
  spec:
    devices:
    - attributes:
        chipName:
          string: 910B4
        numaNode:
          int: 6
        physicalId:
          int: 0
        topologyGroup:
          string: ring-0
      capacity:
        memCapacity:
          value: 32Gi
      name: npu-0
    driver: npu.huawei.com
    nodeName: master
    pool:
      generation: 1
      name: master
      resourceSliceCount: 1

• Query all DeviceClass resources.

  bash

  kubectl get deviceclasses

• Query all ResourceClaim resources.

  bash

  kubectl get resourceclaims -n <namespace>
