AI Inference Weight Dispatch Acceleration ​

Feature Introduction ​

Weight-Dispatcher is a model weight preheating and distribution component designed for AI inference scenarios. It distributes model weights from source nodes or external model repositories to target inference nodes' local cache directories before inference instances start, reducing the wait time and bandwidth pressure caused by repeatedly downloading large model weights during instance startup phases.

• Architecturally, Weight-Dispatcher consists of the control-plane Controller and node-side node-agent, described through the Kubernetes custom resource ModelWarmupJob for a single weight preheating task.
• In capability, Weight-Dispatcher supports storage node sources, multi-source striped fetching, multi-node distribution, CRC32C chunk verification, RDMA transport, and TCP fallback mechanism.
• In usage, users only need to create a ModelWarmupJob; the controller parses sources, target nodes, and distribution plans, and dispatches them to the target node's node-agent for execution.

Application Scenarios ​

Weight-Dispatcher is suitable for deploying large model inference services in Kubernetes clusters where model weights need to be prepared in advance, including:

• Large model cold start acceleration scenario: Preheating weights to target nodes before inference service startup, reducing the time Pods wait for weights to download from remote repositories after startup.
• Multi-node model distribution scenario: The same model needs to be distributed to multiple inference nodes, avoiding each node repeatedly downloading complete weights from remote repositories.
• Multi-source parallel fetching scenario: When multiple nodes or external sources already have the same model weights, multi-source striped fetching improves single-node preparation speed, fully utilizing aggregated bandwidth.

Capability Scope ​

• Supports deployment and usage in Kubernetes clusters.

• Supports initiating model weight preheating tasks via ModelWarmupJob CRD.

• Supports selecting target nodes by nodeNames or nodeSelector.

• Supports sourceType=node node sources; the controller automatically resolves source node IP addresses.

• Supports file, directory, and model weight types.

• Supports data chunk size configuration, task timeout configuration, CRC32C chunk verification, and cache hit reuse.

• Supports RDMA transport; supports TCP fallback transport when RDMA is unavailable or not enabled.

• Supports viewing overall task phase, target node list, node-level task status, throughput, cache path, and transport path via the CRD status.

  Notice:

  • The current version requires spec.sources to not be empty; fully sourceless auto-discovery mode is not supported.
  • When setting sourceType=node, endpoint cannot be explicitly configured simultaneously; the controller auto-fills based on the source node address.
  • The current version does not support sourceType=external mode.
  • Multiple storage node sources must have consistent weight file layouts; tasks will fail when file count, relative path, size, or chunkable attributes are inconsistent.

Highlight Features ​

• Kubernetes-native interface: Describes preheating objects, data sources, target nodes, and execution policies via ModelWarmupJob, facilitating integration with scheduling, scaling, and operations systems.
• Chunked parallel transfer: Splits large files by chunkSizeMB, enabling parallel fetching, verification, and retry, reducing the impact scope of a single large file transfer failure.
• Collective data transfer: When the number of target nodes exceeds the number of sources, target nodes can first fetch partial weight shards, then supplement missing shards via Ring transfer from other target nodes.
• RDMA-aware data plane: Supports RDMA export/connect/update/close sessions, improving large model weight transport efficiency on high-speed networks.
• Stable degradation path: When RDMA is unavailable or not enabled by the user, node-agent can use the TCP fallback path to continue task completion.
• Cache state machine: Target nodes use .staging temporary directory and ready directory publication mechanism, preventing incomplete weights from being mistakenly used by inference processes.

Implementation Principle ​

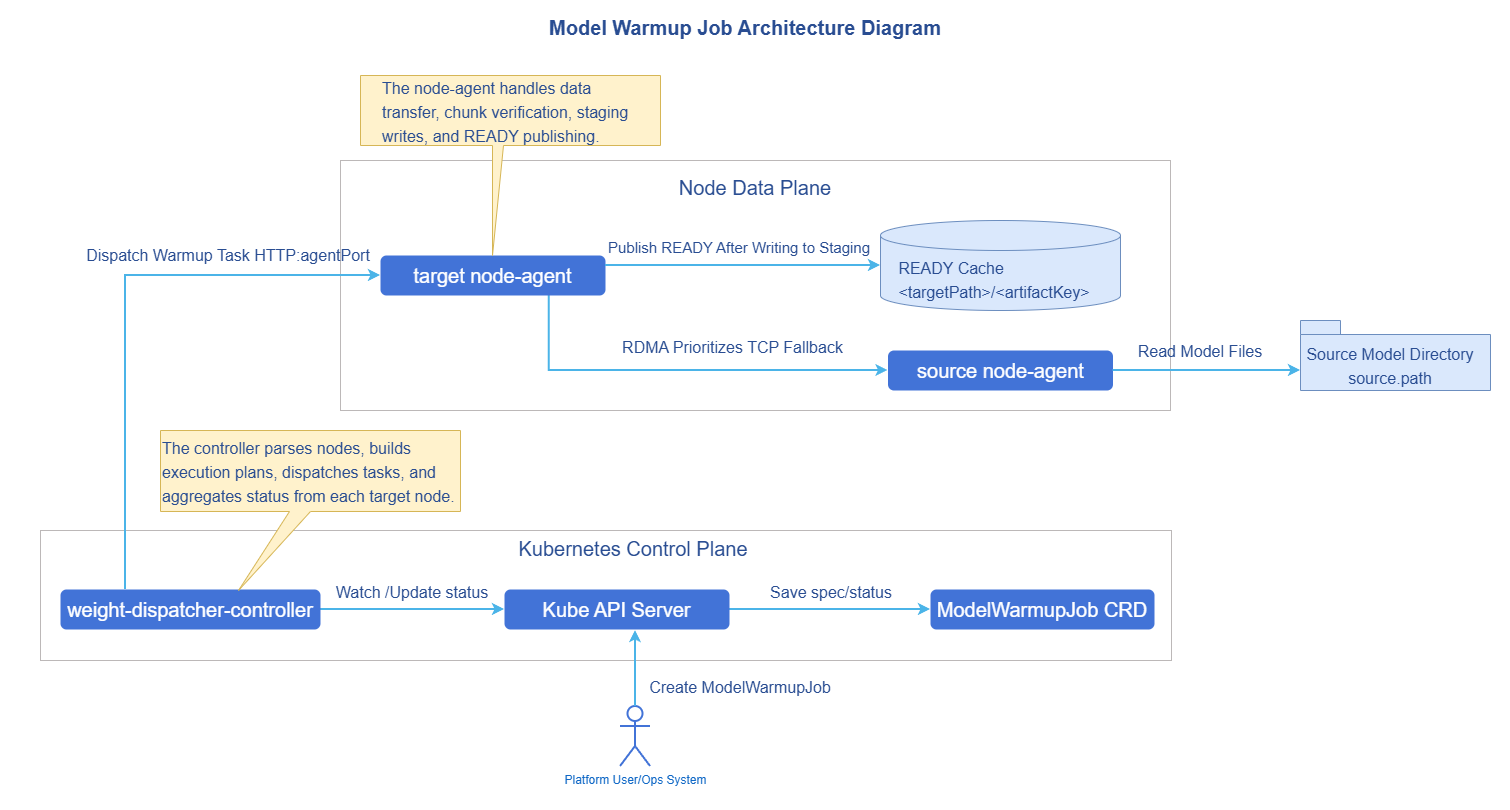

Figure 1 Component Architecture Diagram

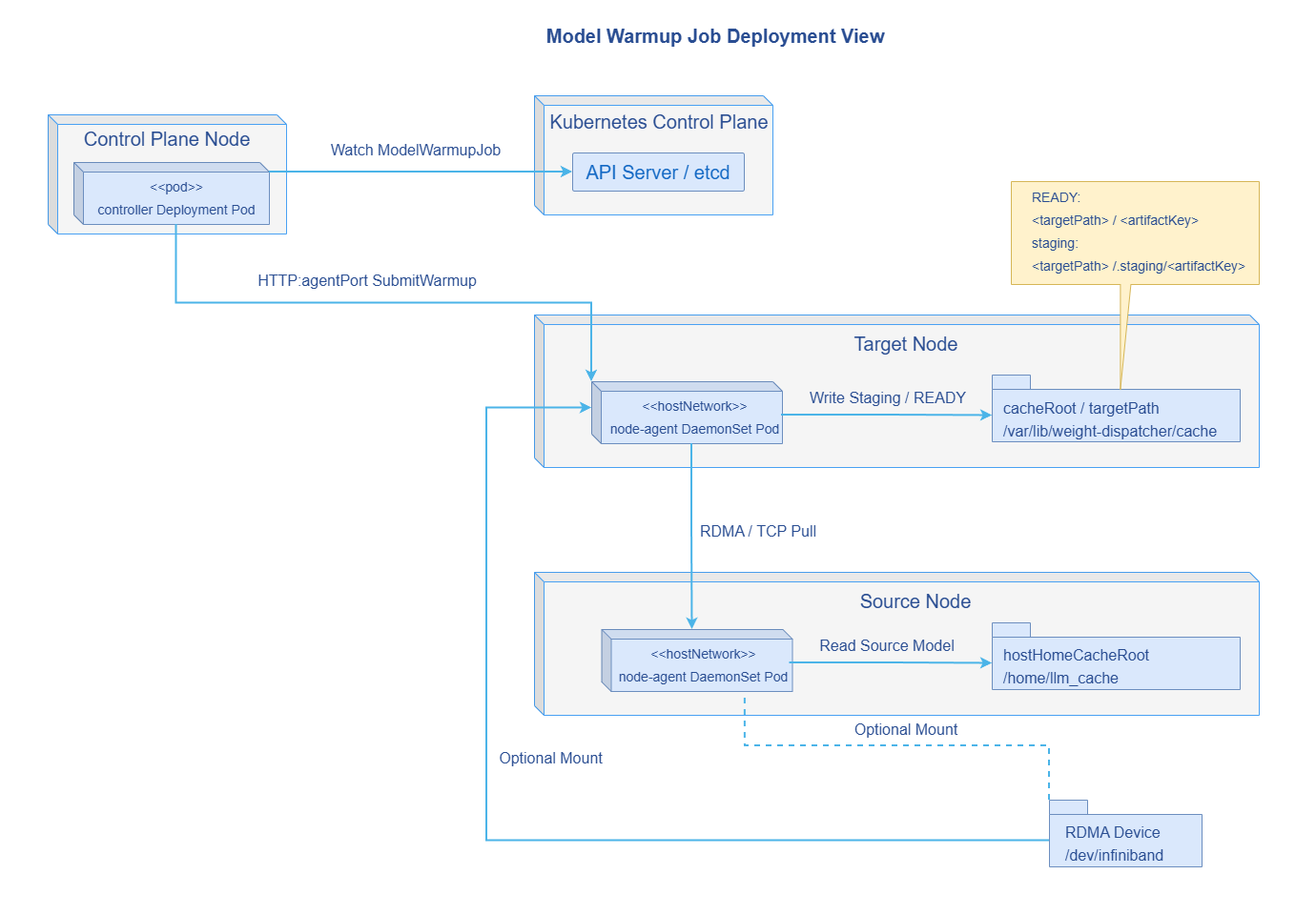

Figure 2 Component Deployment View

Weight-Dispatcher consists of the following components:

1. ModelWarmupJob CRD: The model weight preheating task submitted by the user, describing the model weights to be preheated, data storage source nodes, target nodes, and execution policies.
2. Controller: Watches ModelWarmupJob, completes parameter validation, target node resolution, verification file generation, distribution plan generation, and task status aggregation.
3. node-agent: Runs on nodes as a DaemonSet, used for building verification files, reading source data shards, executing weight fetching, and publishing weight files.
4. Data plane adapter: Can select RDMA or TCP transport path based on the actual environment or environment variables RDMA_ENABLED and TCP_FALLBACK_ENABLED.
5. Cache state machine: Maintains cache loading, publication, failure cleanup, and cache hit reuse logic on target nodes.

A weight preheating task execution flow is as follows:

1. User creates ModelWarmupJob.
2. Controller validates spec.artifact, spec.sources, and spec.target.
3. Controller resolves target nodes; if nodeNames is configured, resolves by node name; if nodeSelector is configured, selects by node labels.
4. Controller selects one source to build a logical manifest; if it is a node source, calls the source node's node-agent /v1/manifests:build; if it is a Hugging Face external source, builds the manifest via the model API.
5. Controller validates whether other node sources' manifest layout is consistent with the baseline source.
6. Controller generates a distribution plan based on source and target counts, and generates a WarmupExecutionPlan for each target node.
7. Controller calls the target node's node-agent /v1/warmups to submit the task.
8. node-agent writes weights to the sibling .staging directory of the target ready path, and publishes to the ready path after transfer completion.
9. Controller periodically queries node-agent task status and writes back to ModelWarmupJob.status.
10. After all target nodes succeed, ModelWarmupJob.status.phase becomes Succeeded; if any target fails and there are no pending/running nodes, the overall task becomes Failed.

Installation ​

This section describes the method for independently deploying Weight-Dispatcher in an existing Kubernetes cluster.

Independent Deployment ​

This section describes how to independently deploy Weight-Dispatcher in a Kubernetes cluster that already has model cache directory nodes.

Prerequisites ​

Before starting installation, ensure the following conditions are met:

• Environment requirements:

  • Kubernetes cluster: Version v1.28.0 or above is recommended.
  • Cluster administrator privileges: For installing CRD, ClusterRole, ClusterRoleBinding, Deployment, and DaemonSet.
  • Helm tool: For deploying Weight-Dispatcher via Chart.
  • Cluster nodes can access the node-agent listening port via node IP addresses; default port is 18080.

• Hardware requirements:

  • Controller itself has no special hardware requirements and can run on standard x86 or ARM architecture nodes.
  • node-agent needs to access source node weight directories and target node weight cache directories; default mounts are /home/llm_cache and /var/lib/weight-dispatcher/cache paths.
  • If RDMA is enabled, target nodes must have RDMA devices and allow node-agent to mount /dev/infiniband and /sys/class/net.

• Model source requirements:

  • When using node sources, model files or directories must already exist on source nodes.
  • When using multiple node sources, model file layouts under each source path must be consistent.

• Permission requirements:

  • In the current version, when using RDMA for transport, node-agent needs to enable hostnetwork and privileged container flags. For security-sensitive scenarios, privileged containers can be disabled and TCP transport can be used.

Installing Weight-Dispatcher ​

If the source repository has been obtained, install via the Helm Chart in the repository by executing the following command.

cd weight-dispatcher/charts/weight-dispatcher
helm install weight-dispatcher . -n weight-dispatcher-system --create-namespace

If the artifact repository has published a Chart artifact package, install via the OCI repository by executing the following command.

helm install weight-dispatcher oci://cr.openfuyao.cn/charts/weight-dispatcher --version 26.6.0 \
  -n weight-dispatcher-system --create-namespace

The default Chart installs the following resources.

• ModelWarmupJob CRD.
• Controller Deployment.
• node-agent DaemonSet.
• ServiceAccount and RBAC required by Controller and node-agent.

After installation, execute the following command to view component status.

kubectl get pods -n weight-dispatcher-system
kubectl get crd modelwarmupjobs.warmup.openfuyao.com

Configuring node-agent ​

node-agent is configured via Helm values for listening address, cache directory, and transport mode. Common configurations are shown in Table 1.

Table 1 node-agent Configuration Parameter Description

RDMA-enabled installation example:

helm install weight-dispatcher oci://cr.openfuyao.cn/charts/weight-dispatcher --version 26.6.0 \
  -n weight-dispatcher-system --create-namespace \
  --set nodeAgent.rdmaEnabled=true \
  --set nodeAgent.tcpFallbackEnabled=true

TCP-only transport installation example:

helm install weight-dispatcher ./charts/weight-dispatcher \
  -n weight-dispatcher-system --create-namespace \
  --set nodeAgent.rdmaEnabled=false \
  --set nodeAgent.tcpFallbackEnabled=true

Note:
Controller in the current version communicates with node-agent by calling http://<nodeIP address>:18080; ensure that node network, NetworkPolicy, and security groups allow this access.

Configuring Weight Distribution Strategy ​

This section describes how to configure ModelWarmupJob for different business scenarios.

Basic Configuration ​

ModelWarmupJob is a single model weight preheating task. A basic configuration example is as follows.

apiVersion: warmup.openfuyao.com/v1alpha1
kind: ModelWarmupJob
metadata:
  name: warmup-qwen-v1
  namespace: default
spec:
  artifact:
    type: MODEL_WEIGHT
    key: qwen:v1 # This key generates the plan ID and model storage subpath
  sources:
    - sourceType: node
      nodeName: worker-source
      path: /data/models/qwen # This path is the source node model storage path, corresponding to the nodeAgent.hostHomeCacheRoot parameter in Helm values; this path needs to be mounted into the node-agent container
  target:
    nodeNames:
      - worker-a
    targetPath: /var/lib/weight-dispatcher/cache/ready # This path is the parent path for model storage; using this yaml as an example, the final model files will be stored at /var/lib/weight-dispatcher/cache/ready/qwen_v1. Corresponding to the nodeAgent.cacheRoot parameter in Helm values; this path needs to be mounted into the node-agent container
  policy:
    timeoutSeconds: 3600
    publishAsSource: true
    enableChunkCRC32C: true
    chunkSizeMB: 64

Table 2 ModelWarmupJob Core Parameter Description

Single Source Node Distribution ​

Single source node distribution is suitable for scenarios where one source node already has complete model weights and needs to distribute them to one or more target nodes.

apiVersion: warmup.openfuyao.com/v1alpha1
kind: ModelWarmupJob
metadata:
  name: warmup-qwen-single-source
  namespace: default
spec:
  artifact:
    type: MODEL_WEIGHT
    key: qwen:v1
  sources:
    - sourceType: node
      nodeName: worker-source
      path: /var/lib/weight-dispatcher/source/qwen-v1
  target:
    nodeNames:
      - worker-a
      - worker-b
      - worker-c
    targetPath: /var/lib/weight-dispatcher/cache/ready
  policy:
    timeoutSeconds: 3600
    enableChunkCRC32C: true
    chunkSizeMB: 64

Note:

• Do not configure endpoint when sourceType=node; the controller automatically uses the source node IP address.
• The source path can be a single file or a directory. If the directory contains Hugging Face's model.safetensors.index.json, node-agent will perform index verification.

Multi-Source Striped Distribution ​

Multi-source striped distribution is suitable for scenarios where multiple source nodes already have the same model weights, and the goal is to fully utilize multi-node multi-SSD aggregated bandwidth to accelerate single target node preheating.

apiVersion: warmup.openfuyao.com/v1alpha1
kind: ModelWarmupJob
metadata:
  name: warmup-qwen-striped
  namespace: default
spec:
  artifact:
    type: MODEL_WEIGHT
    key: qwen3:v1
  sources:
    - sourceType: node
      nodeName: worker-source-a
      path: /var/lib/weight-dispatcher/source/qwen-v1
    - sourceType: node
      nodeName: worker-source-b
      path: /var/lib/weight-dispatcher/source/qwen-v1
  target:
    nodeNames:
      - worker-a
    targetPath: /dev/shm/weight-dispatcher/cache/ready
  policy:
    timeoutSeconds: 3600
    enableChunkCRC32C: true
    chunkSizeMB: 64

Table 3 Multi-Source Configuration Requirements

Selecting Targets Using Node Labels ​

If there are many target nodes, nodeSelector can be used for batch selection.

apiVersion: warmup.openfuyao.com/v1alpha1
kind: ModelWarmupJob
metadata:
  name: warmup-qwen-by-selector
  namespace: default
spec:
  artifact:
    type: MODEL_WEIGHT
    key: qwen:v1
  sources:
    - sourceType: node
      nodeName: worker-source
      path: /var/lib/weight-dispatcher/source/qwen-v1
  target:
    nodeSelector:
      ai.openfuyao.com/inference: "true"
    targetPath: /var/lib/weight-dispatcher/cache/ready
  policy:
    timeoutSeconds: 3600
    chunkSizeMB: 64

Note:
If both nodeNames and nodeSelector are configured, the current node resolution logic prioritizes nodeNames.

Enabling RDMA and TCP Fallback ​

RDMA and TCP transport can be controlled by node-agent startup parameters and do not need to be configured separately in ModelWarmupJob.

Enabling RDMA:

helm upgrade --install weight-dispatcher ./charts/weight-dispatcher \
  -n weight-dispatcher-system --create-namespace \
  --set nodeAgent.rdmaEnabled=true \
  --set nodeAgent.tcpFallbackEnabled=true

Using TCP:

helm upgrade --install weight-dispatcher ./charts/weight-dispatcher \
  -n weight-dispatcher-system --create-namespace \
  --set nodeAgent.rdmaEnabled=false \
  --set nodeAgent.tcpFallbackEnabled=true

After task execution, the actual transport path can be viewed via status.nodeStates[].transportPath.

• RDMA: Task mainly completed via RDMA path.
• TCP_FALLBACK: Task completed via TCP path.
• MIXED: Both RDMA and TCP were used during the task.

Using Weight Dispatch Acceleration ​

This section demonstrates how to create, view, and manage Weight-Dispatcher preheating tasks.

Creating a Preheating Task ​

Following the reference examples above, save the ModelWarmupJob as modelwarmupjob.yaml and create it by executing the following command.

kubectl apply -f modelwarmupjob.yaml

Viewing Preheating Tasks ​

# View preheating tasks in the specified namespace
kubectl get modelwarmupjobs -n <NAMESPACE>

# View using short name
kubectl get mwj -n <NAMESPACE>

# View specific task details
kubectl describe modelwarmupjob <JOB_NAME> -n <NAMESPACE>

Viewing Node-Level Status ​

Execute the following command to view the status fields.

kubectl get modelwarmupjob <JOB_NAME> -n <NAMESPACE> -o yaml

Key fields in status are shown in Table 4.

Table 4 status Field Description

JSONPath can be used to quickly view node status.

kubectl get mwj <JOB_NAME> -n <NAMESPACE> \
  -o jsonpath='{range .status.nodeStates[*]}{.nodeName}{"\t"}{.phase}{"\t"}{.cachePath}{"\t"}{.transportPath}{"\n"}{end}'

Viewing Controller and node-agent Logs ​

# View Controller logs
kubectl logs -n weight-dispatcher-system \
  -l app.kubernetes.io/component=controller -f

# View node-agent logs
kubectl logs -n weight-dispatcher-system \
  -l app.kubernetes.io/component=node-agent -f

Viewing Target Node Cache ​

After task success, the target path consists of target.targetPath and the normalized name of artifact.key. For example:

• target.targetPath: /var/lib/weight-dispatcher/cache/ready
• artifact.key: qwen:v1
• Final path: /var/lib/weight-dispatcher/cache/ready/qwen_v1

You can check whether this path exists on the target node, or obtain the actual published path via status.nodeStates[].cachePath.

Re-executing a Preheating Task ​

After a ModelWarmupJob succeeds or fails, if status.observedGeneration matches the current generation, the controller will not re-execute the same generation task. To re-execute, use the following methods:

# Delete and recreate
kubectl delete modelwarmupjob <JOB_NAME> -n <NAMESPACE>
kubectl apply -f modelwarmupjob.yaml

You can also modify fields in spec that affect the plan, such as artifact.key, target.targetPath, sources, or policy, to trigger a new generation task.

Deleting a Preheating Task ​

Deleting a ModelWarmupJob only deletes the task object in Kubernetes and does not automatically clean up model cache already published on target nodes.

kubectl delete modelwarmupjob <JOB_NAME> -n <NAMESPACE>

To clean up cache, delete the path indicated by status.nodeStates[].cachePath on the target node.

FAQ ​

1. Why does ModelWarmupJob immediately become Failed?

   Symptom description: The CR ModelWarmupJob status shows Failed.
   Possible causes: spec.artifact.key is empty, no target nodes configured, spec.sources is empty, duplicate sources, node incorrectly configured with endpoint, target node selector matches no nodes, source path does not exist, or multi-source file types are inconsistent.
   Processing steps: View node-agent logs and status.lastErrorMessage to identify the specific cause.

2. Can sourceType=node manually specify an endpoint?

   No. The current version requires sourceType=node to only configure nodeName and path; the controller auto-fills the endpoint based on the node. Manually configuring endpoint triggers validation failure.

3. What external source types are supported?

   The current version does not support external sources, such as Hugging Face format download links.

4. Why does a multi-source task fail with logs indicating manifest mismatch?

   Multi-source tasks require multiple sources to have the same model file layout. Confirm that all node source paths have consistent file count, relative path, file size, and chunkable attributes.

5. How to confirm whether a task uses RDMA?

   Check status.nodeStates[].transportPath. If it shows RDMA, the task mainly uses the RDMA path; if it shows TCP_FALLBACK, it uses TCP fallback; if it shows MIXED, both RDMA and TCP were used during the task.

6. Why does RDMA still fall back to TCP when RDMA is enabled?

   Common causes include the node having no RDMA device, the container not mounting /dev/infiniband, RDMA initialization failure, network device unavailable, or RDMA session open failure. Check node-agent logs for rdmaAvailable, rdmaInitCode, rdmaLastError, and rdmaVersion.

7. Where is the cache after task success?

   The final path is <spec.target.targetPath>/<artifact.key normalized name>. The normalization rule replaces /, \, : and spaces with _. The actual path is also written to status.nodeStates[].cachePath.

8. Does deleting a task delete the model cache?

   No. ModelWarmupJob is a control-plane task record; deleting the CR does not automatically clean up the model cache directory on nodes.

9. How to reduce data verification overhead?

   You can set spec.policy.enableChunkCRC32C to false and disable nodeAgent.postWriteCRC32CEnabled. This reduces CRC32C-related computation and post-disk-write CRC32C re-verification, but lowers chunk transfer verification capability. It is recommended to only disable nodeAgent.postWriteCRC32CEnabled in performance-sensitive scenarios.
