AI Inference InferNex Bridge ​

Feature Introduction ​

InferNex Bridge is the core hub between InferNex and KServe, connecting the two deployment entry points via Validating/Mutating Webhook and InferNexService CRD, supporting dual-mode deployment strategy: it can seamlessly integrate into the existing KServe ecosystem, or run independently without KServe.

• Mode 1 (LLMInferenceService deployment entry): Set infernex.io/runtime: "true" on LLMInferenceService to access the InferNex link; inference engine and Hermes Router are orchestrated by KServe, while Bridge handles Mooncake KVCache, cache-indexer, PD-Orchestrator, Eagle-Eye and other enhancement components as well as LLMInferenceServiceConfig runtime compatibility.

• Mode 2 (InferNexService deployment entry): Without KServe, use InferNexService/InferNexServiceConfig for Bridge to uniformly deploy inference engine, Hermes Router, and enhancement components.

Teams with existing KServe environments can continue using LLMInferenceService workflow to gain complete InferNex acceleration capabilities; scenarios without KServe or needing independent control plane can also gain full-stack inference acceleration capabilities (intelligent routing, Mooncake KVCache, elastic scaling, hardware observability, etc.) consistent with AI Inference Integrated Deployment.

Note:
Unlike the one-click full-stack installation entry of the AI Inference Integrated Deployment InferNex main Chart, this document describes the InferNex Bridge independent installation method, with KServe + LLMInferenceService deployment as the main line. Architecture and responsibility boundaries are described in OFEP-0040 and InferNex-Bridge Technical Specification.

Application Scenarios ​

• Cluster already has KServe installed, supported version numbers v0.17.0 to v0.19.0, want to deploy complete InferNex capabilities via LLMInferenceService + infernex.io/runtime: "true".
• Need InferNex Bridge to automatically handle compatibility between KServe built-in Config and InferNex runtime.
• Want to deploy InferNex inference capabilities via InferNex Bridge without using the one-click full-stack installation of the InferNex Main Chart (KServe + LLMInferenceService deployment entry or InferNexService deployment entry both supported).

Capability Scope ​

• InferNex Bridge itself provides the control plane: independent Helm Chart installation; deploys CRDs, RBAC, Webhook, and default InferNexServiceConfig templates.

• Dual deployment entry: supports both KServe + LLMInferenceService and InferNexService paths.

• Instances deployed via InferNex Bridge have inference acceleration capabilities (intelligent routing, Mooncake KVCache, scaling decisions, hardware observability, etc.) fully consistent with AI Inference Integrated Deployment — Capability Scope. The difference lies only in deployment entry and orchestration logic, not in addition or removal of capability sets.

Highlight Features ​

• KServe compatibility: continue using LLMInferenceService workflow, entering InferNex link via label.
• Dual deployment entry: KServe + LLMInferenceService deployment entry and InferNexService deployment entry coexist.

Implementation Principle ​

InferNex Bridge constitutes the KServe adaptation layer via Mutating/Validating Webhook and InferNexService CRD: users still use LLMInferenceService as the entry, supplementing InferNex enhancement components without modifying KServe CRDs; it also supports submitting InferNexService directly without KServe, with Bridge uniformly deploying. Mutating Webhook performs admission rewrite (compatibility patch for LLMInferenceServiceConfig) on LLMInferenceService with infernex.io/runtime: "true"; Validating Webhook performs admission validation on directly submitted InferNexService(KServe-linkInferNexServicewithsourceRefskips validation).InferNexServiceis associated withLLMInferenceServiceviasourceRefand provides read-only observation, without mergingllmisvc.spec` to re-launch inference engine or Router.

Logic View ​

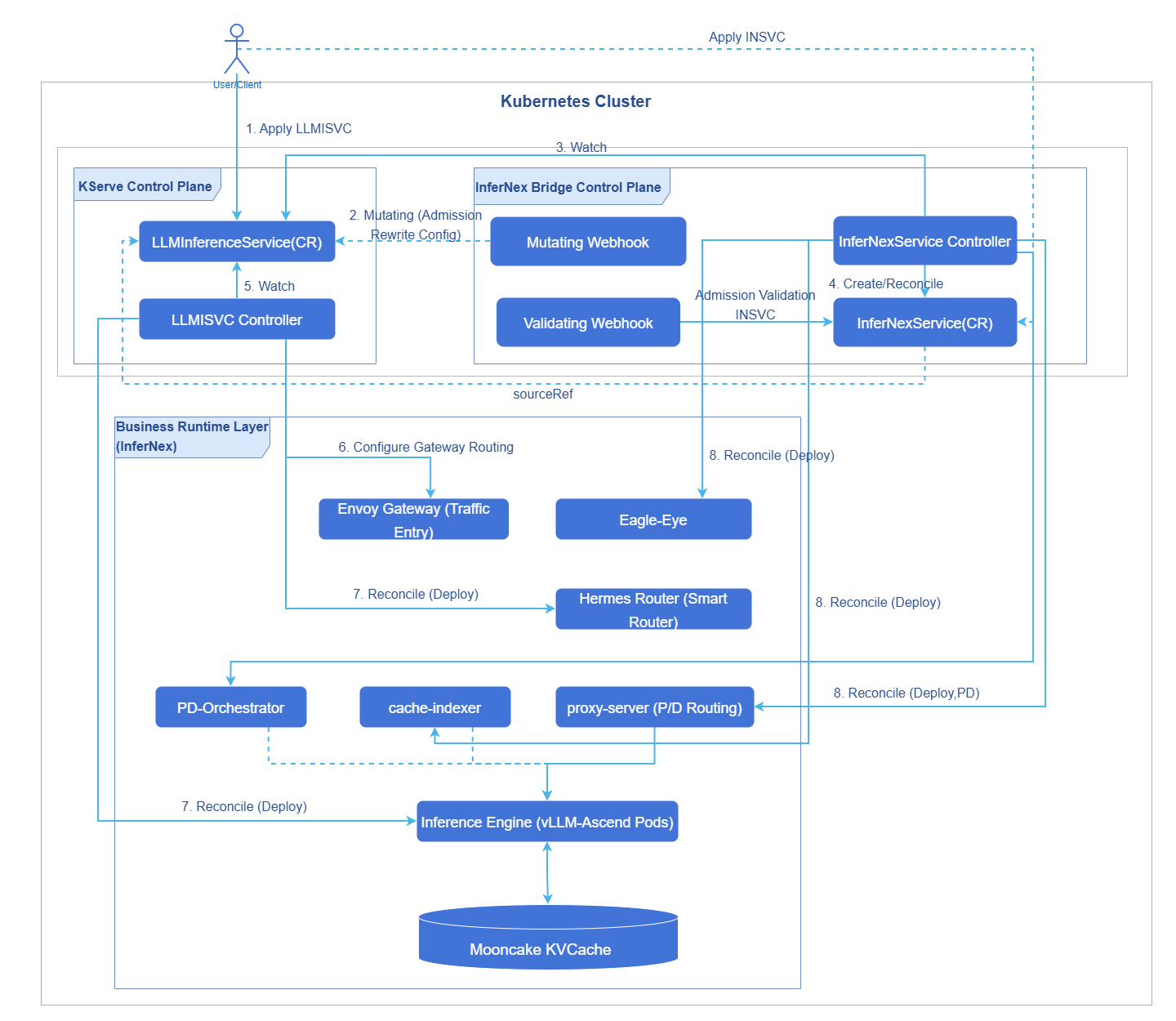

KServe LLMInferenceService controller handles inference engine, Hermes Router, and Gateway/HTTPRoute/InferencePool. InferNex Bridge handles proxy-server (P/D mode), Mooncake KVCache, Cache-Indexer, PD-Orchestrator, Eagle-Eye and other supplementary components. In P/D mode, traffic is split to prefill/decode via proxy-server.

Figure 1 InferNex Bridge Logic View

Deployment View ​

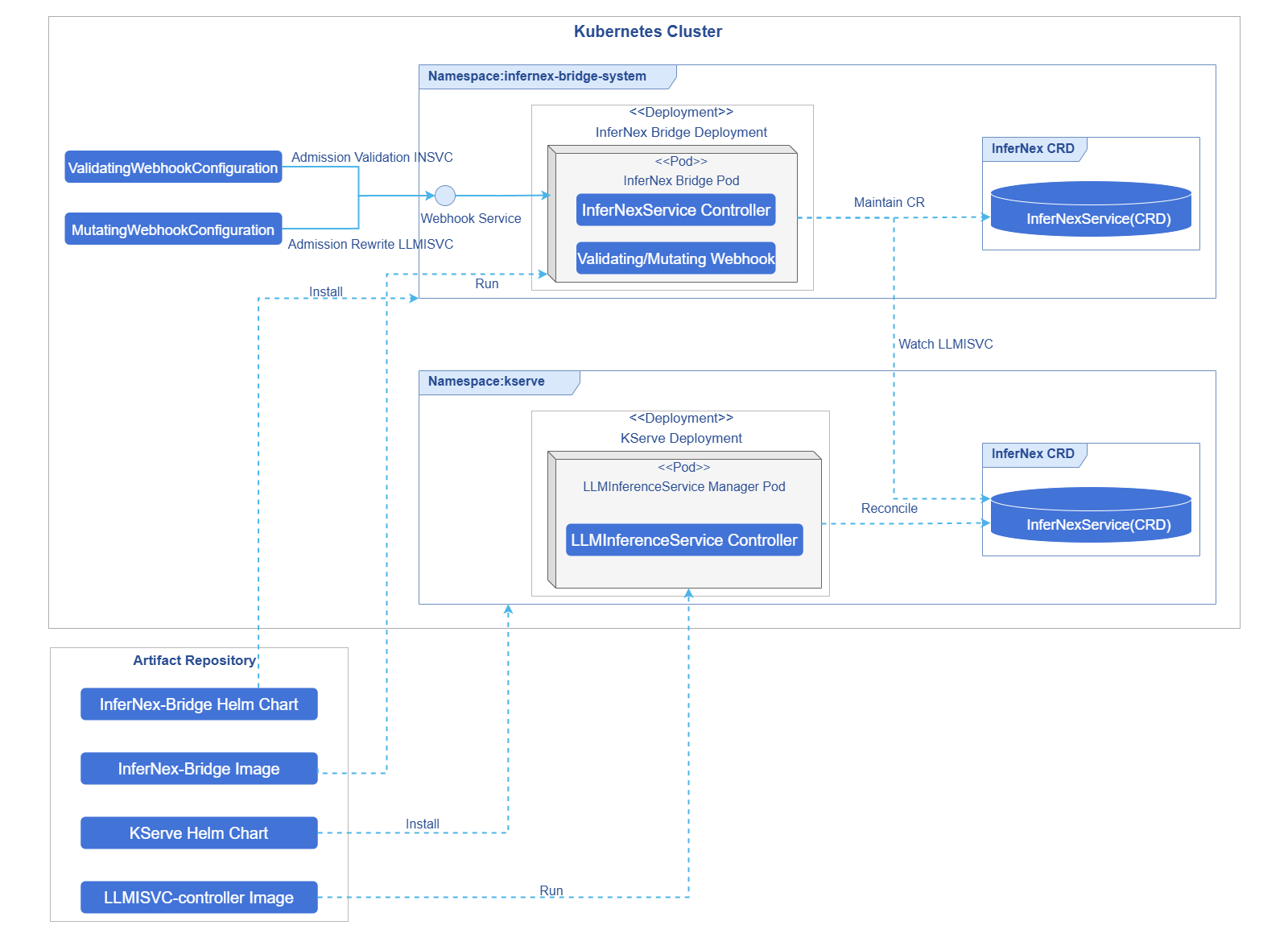

KServe and InferNex Bridge are deployed via independent Helm Charts; InferNex Bridge Pod integrates Mutating/Validating Webhook and InferNexService controller: MutatingWebhookConfiguration patches KServe default LLMInferenceServiceConfig for compatibility; ValidatingWebhookConfiguration performs admission validation on submitted InferNexService (KServe-link auto-created InferNexService with sourceRef skips validation).

Figure 2 InferNex Bridge Deployment View

Runtime View ​

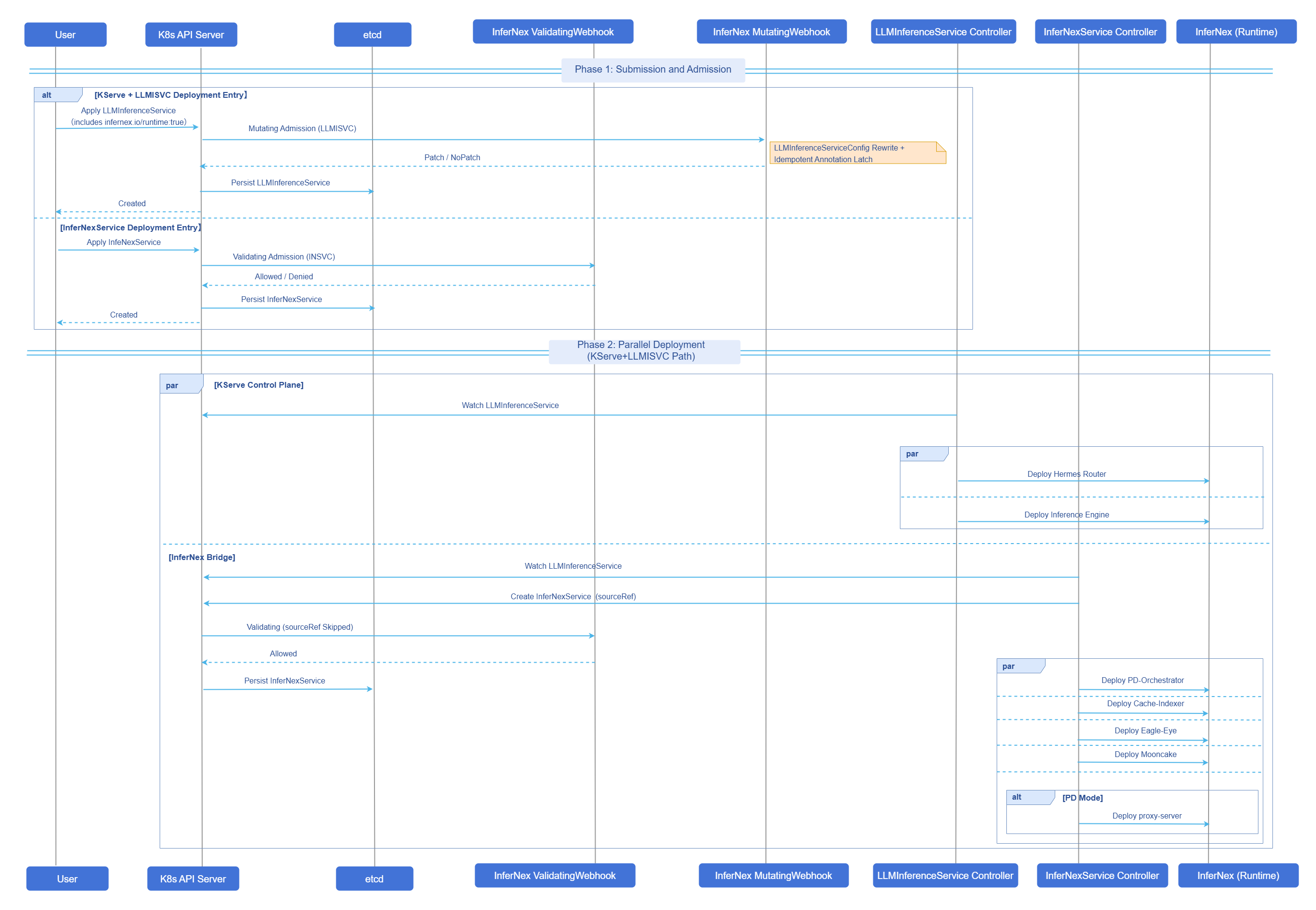

KServe + LLMInferenceService deployment entry: after user submits LLMInferenceService with infernex.io/runtime: "true", it first goes through Mutating Webhook admission rewrite of KServe default LLMInferenceServiceConfig, then KServe and InferNex Bridge deploy their respective workloads in parallel. InferNexService deployment entry: when user directly submits InferNexService, it first goes through Validating Webhook admission validation.

Figure 3 InferNex Bridge Runtime View

Relationship with Related Features ​

AI Inference Integrated Deployment installs InferNex full-stack (control plane and inference instances) via InferNex main Chart one-click; this document describes InferNex Bridge independent installation, with InferNex Bridge Chart as the deployment entry, covering KServe + LLMInferenceService deployment entry and InferNexService deployment entry, different from the main Chart full-stack entry.

Installation ​

Prerequisites ​

InferNex Bridge Control Plane ​

• Existing Kubernetes cluster with kubectl and Helm (v3 or above) installed.
• KServe: KServe installation version v0.17.0 to v0.19.0; see KServe LLMISVC Prerequisites for installation prerequisites.
• API versions: LLMInferenceService/LLMInferenceServiceConfig supports both serving.kserve.io/v1alpha1 and serving.kserve.io/v1alpha2; recommended to use serving.kserve.io/v1alpha2. InferNexService/InferNexServiceConfig is infernex.infernex.io/v1alpha1.
• Envoy Gateway, Gateway API, and Gateway API Inference Extension related CRDs installed; when using KServe + LLMInferenceService deployment, Hermes Router routing and HTTPRoute for exposing inference services depend on these components.
• Cluster can access cr.openfuyao.cn, hub.oepkgs.net (or equivalent mirror configured).
• Recommended namespace infernex-bridge-system is Active; avoid repeatedly installing multiple InferNex Bridge Webhooks.

Note:
For image list, version compatibility, deployment scenarios, and Webhook patches on LLMInferenceServiceConfig, see Deployment Specifications, Deployment Scenarios, Webhook Patch Details, and Appendix A Default Images. For Hermes Router container naming, see Appendix — Hermes Router Container Naming Convention in this document.

Inference Cluster Environment (General) ​

Before deploying inference instances (vLLM-Ascend, Mooncake KVCache, PD disaggregation, etc.), hardware, software, and network prerequisites are described in AI Inference Integrated Deployment.

• InferNex installation prerequisites are described in Prerequisites (including cluster version, NPU Operator, LWS, etc.).
• Using AI Inference prerequisites are described in Using AI Inference (including inference node resources, metrics-server, PD + Mooncake KVCache network, etc.).
• Network configuration for PD disaggregation with Mooncake KVCache via HCCS transport is described in Ascend HCCS Device IP Address Configuration Example.
• Custom model weight host mount path and cache directory structure are described in Custom Model Directory Configuration.

Note:

• When deploying via InferNex Bridge independent installation, pre-installing the main Chart's inference-backend is not required; Mooncake KVCache, cache-indexer, PD-Orchestrator and other enhancement components are launched by InferNex Bridge per instance.
• When enabling Eagle-Eye, NATS and kube-prometheus-stack must be pre-installed; configuration and usage are described in AI Inference Eagle Eye.

Getting Started with Installation ​

Method 1: Install Chart from InferNex Source Repository ​

git clone -b release-26.6.0 https://gitcode.com/openFuyao/InferNex.git
cd InferNex/component/InferNex-Bridge

helm upgrade --install infernex-bridge ./chart/infernex-bridge \
  -n infernex-bridge-system \
  --create-namespace \
  --wait \
  --timeout 10m

The Chart version corresponds to the InferNex release version one-to-one; this release uses 26.6.0. Before installation, execute the following command to view Chart metadata.

helm show chart ./chart/infernex-bridge

Method 2: Install from OCI Repository (Recommended) ​

helm upgrade --install infernex-bridge oci://cr.openfuyao.cn/charts/infernex-bridge \
  --version 26.6.0 \
  -n infernex-bridge-system \
  --create-namespace \
  --wait \
  --timeout 10m

--version specifies the Chart version; use 26.6.0 for this release. Before installation, execute the following command to view Chart metadata.

helm show chart oci://cr.openfuyao.cn/charts/infernex-bridge --version 26.6.0

Webhook TLS Certificate (Optional) ​

InferNex Bridge Webhook requires TLS certificates. The Chart supports two methods, toggled via webhooks.certGenerator.enabled (default true) and certManager.enabled (default false).

Table 1 Webhook TLS Certificate Configuration Methods

When cert-manager is already deployed in the cluster, execute the following command and set certManager.enabled=true.

helm upgrade --install infernex-bridge oci://cr.openfuyao.cn/charts/infernex-bridge \
  --version 26.6.0 \
  -n infernex-bridge-system \
  --create-namespace \
  --set certManager.enabled=true \
  --wait \
  --timeout 10m

Verifying Deployment ​

helm list -n infernex-bridge-system
kubectl get pods,svc -n infernex-bridge-system
kubectl get secret webhook-server-cert -n infernex-bridge-system
kubectl get mutatingwebhookconfiguration,validatingwebhookconfiguration | grep infernex-bridge
kubectl get endpoints webhook-service -n infernex-bridge-system

Expected results.

• InferNex Bridge controller Pod is Running and READY is 1/1.
• Webhook certificate, configuration, and Service endpoint are all ready, capable of receiving Admission requests normally.

Uninstalling ​

Uninstall InferNex Bridge control plane (controller, Webhook, and related Release resources).

helm uninstall infernex-bridge -n infernex-bridge-system

Note:
When default webhooks.certGenerator.enabled=true and certManager.enabled=false, the pre-delete Hook Job cleanup-webhook-cert additionally cleans up Mutating/ValidatingWebhookConfiguration and webhook-server-cert Secret; when certManager.enabled=true, this Job is not created, Webhook configuration is deleted along with Release, and certificate Secret is managed by cert-manager. CRDs deployed by the Chart are not deleted along with Release by default and need to be handled manually. If the infernex-bridge-system namespace has no other resources to retain, you can execute kubectl delete namespace infernex-bridge-system to delete the namespace and its residual resources.

Using InferNex Bridge ​

The same inference instance should not be redundantly installed with two sets of similar enhancement components via two deployment entries; select either KServe + LLMInferenceService or InferNexService for each instance, do not mix.

Using LLMInferenceService ​

Suitable for scenarios with KServe already installed: inference engine and Hermes Router are reconciled by KServe; enhancement components are reconciled by InferNex Bridge.

Prerequisites ​

• InferNex Bridge control plane and inference cluster environment checks in this document's prerequisites have been completed.
• InferNex Bridge and Webhook are running normally.
• Permissions to create LLMInferenceService and LLMInferenceServiceConfig.
• Envoy Gateway and GIE-related CRDs are ready (if accessing via gateway is needed).

Background Information ​

Table 2 Config and LLMISVC Responsibilities

Setting the infernex.io/runtime label only on Config is ineffective. It is recommended to first create Config, then create LLMISVC with the label and reference Config via spec.baseRefs. For Hermes Router routing policies, plugins, and gateway-side configuration, see AI Inference Hermes Routing.

Usage Limitations ​

• The infernex.io/runtime label must be placed on LLMInferenceService only; placing it on LLMInferenceServiceConfig is ineffective.
• Must use KServe's LLMInferenceServiceConfig system; cannot mix with InferNexServiceConfig.
• In the examples, replicas: 1 is the inference engine default fixed replica count; to enable PD-Orchestrator scaling, omit spec.template/spec.prefill replicas in LLMISVC Config, and LLMISVC spec.replicas, spec.prefill.replicas; see Appendix — Inference Engine Replicas and Scaling.

Operation Steps ​

1. Prepare the entry Gateway (as needed).

   The example LLMISVC spec.router.gateway: {}, route: {} indicates KServe creates HTTPRoute and mounts it to the default entry Gateway (usually kserve-ingress-gateway in the kserve namespace). If it does not exist in the cluster, it must be created first.

   yaml

   apiVersion: gateway.networking.k8s.io/v1
   kind: Gateway
   metadata:
     name: kserve-ingress-gateway
     namespace: kserve
   spec:
     gatewayClassName: envoy
     infrastructure:
       labels:
         serving.kserve.io/gateway: kserve-ingress-gateway
     listeners:
       - name: http
         protocol: HTTP
         port: 80
         allowedRoutes:
           namespaces:
             from: All

   Save the above YAML as kserve-ingress-gateway.yaml, then execute the following command to create the entry Gateway and confirm readiness.

   bash

   kubectl apply -f kserve-ingress-gateway.yaml
   kubectl get gateway -n kserve kserve-ingress-gateway

2. Create LLMInferenceServiceConfig and configure engine template.

   storageInitializer (example default disabled, can be enabled as needed).

   yaml

     storageInitializer:
       enabled: false

   Table 3 storageInitializer.enabled Behavior Description

   enabled	Behavior
   false (Recommended)	Does not inject KServe storage-initializer init; faster cold start. Models are prepared by node hostPath cache or inference engine initContainers (such as huggingface-download).
   true	KServe pulls the model built-in per spec.model.uri; first startup is usually slower, consistent with KServe native hf:// flow.

   Hermes Router EPP container must fix container name main and named port grpc (see Appendix — Hermes Router Container Naming Convention).

   yaml

     router:
       scheduler:
         pool:
           spec:
             selector:
               matchLabels:
                 app.kubernetes.io/name: ex-ag-01-sn-sc
             endpointPickerRef:
               kind: Service
               name: ex-ag-01-sn-sc-epp-service
         template:
           spec:
             containers:
               - name: tokenizer
                 image: cr.openfuyao.cn/openfuyao/hermes-tokenizer:latest
               - name: main
                 image: cr.openfuyao.cn/openfuyao/hermes-router:latest
                 ports:
                   - name: grpc
                     containerPort: 9002

   Fixing main is to ensure EndpointPickerRef uniquely locates EPP via Service targetPort when sidecars like tokenizer exist; otherwise it may connect to tokenizer's 8000 port, often manifesting as HTTP 500 externally.

3. Create LLMInferenceService with the label.

   When entering InferNex link, only place the label on LLMInferenceService.

   yaml

   metadata:
     labels:
       infernex.io/runtime: "true"

   Label and baseRefs (aggregate starter example instance name ex-ag-01-sn-sc).

   yaml

   apiVersion: serving.kserve.io/v1alpha2
   kind: LLMInferenceService
   metadata:
     name: ex-ag-01-sn-sc
     namespace: kserve
     labels:
       infernex.io/runtime: "true"
   spec:
     baseRefs:
       - name: ex-ag-01-sn-sc-config
     model:
       uri: hf://Qwen/Qwen2.5-0.5B
       name: Qwen/Qwen2.5-0.5B

4. Deploy complete example.

   Before deployment, modify namespace, node, nodeName, hostPath, model URI, image tag, etc. per environment. Examples are maintained per scenario in directories (single-node single-card/single-node multi-card/cross-machine MoE + LWS, etc.); complete list is in InferNex repository component/InferNex-Bridge/config/examples/llmisvc/.

   • Aggregate starter: ag-01-single-node-single-card.yaml (Aggregate mode example directory)
   • P/D starter: pd-01-single-node-single-card.yaml (PD disaggregation mode example directory)
   bash

   git clone -b release-26.6.0 https://gitcode.com/openFuyao/InferNex.git
   cd InferNex/component/InferNex-Bridge/config/examples/llmisvc
   kubectl apply -f aggregate/ag-01-single-node-single-card.yaml
   # or
   kubectl apply -f disaggregated/pd-01-single-node-single-card.yaml

   bash

   kubectl get llminferenceservice,llminferenceserviceconfig -n kserve
   kubectl get pods -n kserve

5. Verify inference service via gateway.

   After instance is Ready, access via Envoy; URL format: http://<Gateway IP address>:<port>/<path prefix>/v1/chat/completions.

   5.1 Query gateway IP address and port.

   bash

   kubectl get svc -A | grep -i envoy
   kubectl get nodes -o wide

   5.2 Confirm path prefix and send request.

   KServe default route path prefix is /<metadata.namespace>/<metadata.name>, where the first segment is the LLMInferenceService namespace and the second segment is the instance name; it is not fixed to kserve. When the starter example YAML namespace and instance name are unchanged, the aggregate reference path is /kserve/ex-ag-01-sn-sc, P/D is /kserve/ex-pd-01-sn-sc. The model in the request body must match the deployed YAML spec.model.name.

   bash

   curl -X POST "http://<Gateway IP>:<port>/kserve/ex-ag-01-sn-sc/v1/chat/completions" \
     -H "Content-Type: application/json" \
     -d '{"model":"<spec.model.name>","messages":[{"role":"user","content":"hello"}]}'

Follow-up Operations ​

Delete LLMISVC instance. Delete LLMInferenceService with infernex.io/runtime: "true" (aggregate starter example, namespace kserve; P/D uses instance name ex-pd-01-sn-sc).

kubectl delete llminferenceservice ex-ag-01-sn-sc -n kserve

kubectl get llminferenceservice,insvc -n kserve
kubectl get pods -n kserve | grep ex-ag-01-sn-sc

After deletion, KServe reclaims inference engine, Hermes Router, and HTTPRoute, etc.; InferNex Bridge deletes the auto-created InferNexService of the same name and Mooncake KVCache, cache-indexer, PD-Orchestrator, Eagle-Eye and other enhancement components.

Delete LLMISVCConfig (optional). LLMInferenceServiceConfig is a reusable template and is not automatically deleted with LLMISVC; execute when you need to remove custom Config.

kubectl delete llminferenceserviceconfig ex-ag-01-sn-sc-config -n kserve

Notice:

• If PD-Orchestrator (Elastic-Scaler/ResourceScalingGroup) scaled out additional inference engine replicas, after deleting LLMISVC please check whether residual Deployment, ElasticScaler, ResourceScalingGroup CRs remain, and manually clean up if necessary.
• When namespace is stuck in Terminating for a long time, check whether InferNexService is blocked at the finalizer stage; confirm no residual Pods before handling the finalizer.

Using InferNexService ​

Suitable for scenarios not dependent on KServe, deploying via InferNex Bridge through InferNexService/InferNexServiceConfig native CRDs: inference engine, Hermes Router, and enhancement components are all reconciled by InferNex Bridge. InferNexService resource short name is insvc, InferNexServiceConfig short name is insvccfg (CRD shortNames); kubectl examples below use abbreviations.

Prerequisites ​

• InferNex Bridge control plane and inference cluster environment checks in this document's prerequisites have been completed.
• Default templates (infernex-default-aggregate-template/infernex-default-pd-template) are installed in the template namespace (default infernex-bridge-system); they contain only enhancement component and IGR defaults, without inference engine Pod templates; deploying instances must reference example Config or build spec.engine yourself.
• If external entry is needed: Envoy Gateway, GatewayClass available; spec.intelligentGatewayRouting.router.enabled: true and configure Gateway/HTTPRoute/InferencePool.

Background Information ​

• InferNexService references InferNexServiceConfig via spec.baseRefs to merge configuration; spec.engine can be written in InferNexService or InferNexServiceConfig (examples reference Config via baseRefs; flat structure: root fields are aggregate/decode workload, P/D additionally has prefill sub-block), InferNexService additionally writes model, IGR, component switches, etc. Chart default templates (infernex-default-aggregate-template/infernex-default-pd-template) contain only enhancement components and IGR defaults, without engine Pod templates; deploying inference instances must reference example Config or build engine templates.
• Mooncake KVCache, cache-indexer, proxy-server (PD), PD-Orchestrator, Eagle-Eye, etc. are launched by the controller from built-in assets or merged with platform default Config, without expanding full PodTemplate in user YAML.
• Hermes Router routing policies, plugins, and gateway-side configuration are described in AI Inference Hermes Routing.

spec Field Description ​

InferNexService and InferNexServiceConfig division: baseRefs merges in order, later overriding earlier; spec.engine can be written in InferNexService or InferNexServiceConfig (examples typically placed in Config), InferNexService additionally writes model, IGR, component switches, etc. The two Config sets and LLMInferenceServiceConfig cannot be mixed.

Table 4 InferNexService Field Description

spec.engine Field Description ​

spec.engine is a flat structure (no longer using engine.aggregate/engine.pd nested blocks). Each workload segment (root fields or prefill) shares the same set of fields.

Table 5 spec.engine Workload Fields (root fields and prefill both applicable)

Mode determination: After merge, if prefill.template contains valid containers, it is P/D (root fields are decode, prefill must also be configured); otherwise it is aggregate (only root template). Chart default template names still distinguish aggregate/pd, used for component default value fallback, unrelated to spec.engine YAML shape.

Aggregate and P/D YAML skeletons are as follows (complete Pod templates in example Config):

# aggregate
spec:
  engine:
    template:
      spec:
        containers: [...]
    # Optional: replicas, dataParallelSize, dataParallelSizeLocal, worker

# P/D (root template=decode, prefill=prefill)
spec:
  engine:
    template:
      spec:
        containers: [...]   # decode
    prefill:
      template:
        spec:
          containers: [...]

More LWS / Admission constraints and scaling prerequisites are described in Appendix — Inference Engine Replicas and Scaling in this document.

IGR and Gateway Objects ​

• router.enabled: External entry master switch. When false, only cluster-internal inference engine and enhancement components are deployed; InferNex Bridge does not reconcile Gateway/HTTPRoute/InferencePool.
• When router.enabled: true, Hermes Router EPP template must be configured (container name main, port name grpc, see Appendix — Hermes Router Container Naming Convention); gateway, httpRoute, inferencePool each support two writing methods.
  • ref: References existing resource name in the cluster (Bring Your Own).
  • spec: InferNex Bridge creates or updates managed objects per field.
  • ref and spec on the same object are mutually exclusive; cannot fill both.
• When router is enabled and ref is not specified for gateway/httpRoute/inferencePool, InferNex Bridge manages corresponding Gateway API objects per default rules (examples typically only write the router section).

Component Switches (spec.components) ​

InferNexService deployment entry created InferNexService (without spec.sourceRef) must explicitly write enabled: true or false for each component block declared in YAML; cannot omit. Common fields.

• mooncake.enabled, cacheIndexer.enabled
• pdOrchestrator.elasticScaler/tidal/resourceScalingGroup
• eagleEye.hardwareMonitor/hardwareDiagnosis (NATS and kube-prometheus-stack must be pre-installed before enabling)

spec.sourceRef ​

KServe-link InferNex Bridge auto-creates InferNexService with sourceRef of the same name. Such objects are reconciled by InferNex Bridge only for enhancement components; do not manually modify engine/router; IGR is managed by KServe, InferNex Bridge does not touch Gateway API objects.

Usage Limitations ​

• InferNexService deployment entry does not require the infernex.io/runtime label; this label is only for KServe + LLMInferenceService deployment entry.
• Under InferNexService deployment entry, Hermes Router uses openfuyao.com/pdRole, openfuyao.com/pdGroupID and other labels; different from KServe + LLMInferenceService deployment entry app.kubernetes.io/* label system, do not mix.
• Under InferNexService deployment entry, InferNexService without spec.sourceRef must explicitly write enabled: true or false for each spec.components component block declared in YAML.
• KServe-link auto-created InferNexService with spec.sourceRef must not be manually modified for engine/router fields.
• In examples, replicas: 1 is the inference engine default fixed replica count; to enable PD-Orchestrator scaling, omit engine root fields and engine.prefill replicas; see Appendix — Inference Engine Replicas and Scaling.

Operation Steps ​

1. Confirm default templates and namespace.

   bash

   kubectl get insvc,insvccfg -n infernex-bridge-system
   kubectl get pods -n infernex-bridge-system
   kubectl get gateway,httproute,inferencepool -n infernex-bridge-system

2. Prepare InferNexServiceConfig (customize engine template as needed).

   Custom engine templates are written in InferNexServiceConfig, referenced by InferNexService via spec.baseRefs; Chart-installed default templates can also be used.

3. Create InferNexService instance.

   yaml

   apiVersion: infernex.infernex.io/v1alpha1
   kind: InferNexService
   metadata:
     name: ex-ag-01-sn-sc
     namespace: infernex-bridge-system
   spec:
     baseRefs:
       - name: ex-ag-01-sn-sc-engine
     model:
       uri: hf://Qwen/Qwen2.5-0.5B
       name: Qwen/Qwen2.5-0.5B
     intelligentGatewayRouting:
       router:
         enabled: true

   Hermes Router template must fix EPP container name main and port name grpc (see Appendix — Hermes Router Container Naming Convention).

4. Deploy complete example.

   Examples are maintained per scenario in directories (single-node single-card/single-node multi-card/cross-machine MoE + LWS, etc.); each YAML contains InferNexServiceConfig (spec.engine) and InferNexService (model + IGR) of the same Spec ID. Complete list is in InferNex repository component/InferNex-Bridge/config/examples/insvc/.

   • Aggregate starter: ag-01-single-node-single-card.yaml (Aggregate mode example directory)
   • P/D starter: pd-01-single-node-single-card.yaml (PD disaggregation mode example directory)
   bash

   cd InferNex/component/InferNex-Bridge/config/examples/insvc
   kubectl apply -f aggregate/ag-01-single-node-single-card.yaml
   # or
   kubectl apply -f disaggregated/pd-01-single-node-single-card.yaml

5. Verify inference service via gateway.

   Similar to LLMISVC, query Gateway/HTTPRoute then curl; path prefix is also /<namespace>/<instance-name> (InferNex Bridge managed routes also generate per this rule). model must match spec.model.name. Aggregate starter instance name ex-ag-01-sn-sc, P/D is ex-pd-01-sn-sc (per example YAML).

Follow-up Operations ​

Delete InferNexService instance. After deleting InferNexService, InferNex Bridge reclaims the inference engine, Hermes Router, enhancement components, and Gateway/HTTPRoute/InferencePool etc. created when IGR was enabled (per controller ownership). Aggregate starter example (namespace infernex-bridge-system).

kubectl delete insvc ex-ag-01-sn-sc -n infernex-bridge-system

kubectl get insvc,pods -n infernex-bridge-system | grep ex-ag-01-sn-sc
kubectl get gateway,httproute,inferencepool -n infernex-bridge-system

Delete InferNexServiceConfig (optional). InferNexServiceConfig is a reusable engine template and is not automatically deleted with InferNexService instances. When deleting instances, typically only insvc needs to be deleted; Config does not need deletion.

• User custom templates (such as example ex-ag-01-sn-sc-engine). After confirming no other InferNexService references it via spec.baseRefs, it can be deleted as needed.

kubectl delete insvccfg ex-ag-01-sn-sc-engine -n infernex-bridge-system

• Chart default templates (infernex-default-aggregate-template, infernex-default-pd-template): Installed by InferNex Bridge Chart in the template namespace, for new instances to reference via baseRefs or as controller default fallback, not bound to individual inference instances. Do not delete them when deleting a InferNexService; only clean them together when uninstalling InferNex Bridge control plane and confirming the cluster no longer uses the Bridge.

Notice:
If PD-Orchestrator scaling produced additional workloads, after deleting instances please similarly check whether Deployment, ElasticScaler, ResourceScalingGroup related resources remain, and manually clean up if necessary.

Related Operations ​

Besides deleting instances, common operations commands are as follows.

View InferNex Bridge control plane.

helm status infernex-bridge -n infernex-bridge-system
kubectl get pods -n infernex-bridge-system

View inference instances (KServe + LLMInferenceService deployment entry).

kubectl get llminferenceservice,insvc -n kserve
kubectl get pods -n kserve -l infernex.io/runtime=true

View inference instances (InferNexService deployment entry).

kubectl get insvc -n infernex-bridge-system
kubectl get pods -n infernex-bridge-system

Appendix ​

Hermes Router Container Naming Convention ​

Hermes Router (Endpoint Picker, EPP) runs in the same Pod as sidecars such as tokenizer. When InferencePool.endpointPickerRef points to the EPP Service, the controller resolves the backend by fixed container name and port name; if naming does not meet the convention, traffic may connect to a sidecar (such as tokenizer port 8000), often resulting in HTTP 500 externally.

Table 7 Hermes Router EPP Template Constraints

On the KServe + LLMInferenceService path, Mutating Webhook removes llm-d startup commands and probes from KServe preset kserve-config-llm-scheduler, keeping only main / tokenizer container skeletons; Hermes images, main args, and tokenizer config must be written back in LLMISVC router.scheduler.template. Explicit writable volumes such as tokenizer-tmp and tokenizer-cache are recommended (consistent with Chart examples); see Technical Specification — scheduler configuration notes.

Minimal EPP snippet (tokenizer and main order may be swapped):

containers:
  - name: tokenizer
    image: cr.openfuyao.cn/openfuyao/hermes-tokenizer:latest
  - name: main
    image: cr.openfuyao.cn/openfuyao/hermes-router:latest
    ports:
      - name: grpc
        containerPort: 9002

Inference Engine Replicas and Scaling ​

PD-Orchestrator (including Elastic-Scaler, Tidal Controller, ResourceScalingGroup) has been adapted for both KServe + InferNex Bridge dual entry points. Whether scaling is effective depends on whether the inference engine omits replicas in YAML (not writing the field, rather than writing 0). Hermes Router, enhancement components, etc. can still have replicas: 1.

Table 6 Inference Engine Scaling Support Comparison Under Two Deployment Methods

Note:
In component/InferNex-Bridge/config/examples, replicas: 1 is only for fixed replica demonstration. Before enabling scaling, please delete engine.replicas (aggregate or decode), engine.prefill.replicas, and LLMISVC spec.replicas, spec.prefill.replicas and other engine/template-related replicas fields. For multi-Pod DP (dataParallelSize/dataParallelSizeLocal making groupSize>1), Bridge uses LeaderWorkerSet, where replicas represents LWS group count rather than single Pod count.

After omitting engine.replicas, usage of each scaling capability is described in the following documents.

• AI Inference Elastic Scaling — Configuring Scaling Policies
• ResourceScalingGroup — Using ResourceScalingGroup
• AI Inference Tidal Algorithm — Using AI Inference Tidal Algorithm
