AI Inference Elastic Scaling ​

Feature Introduction ​

Elastic Scaler is a general scaling decision framework designed to meet scaling decision requirements in different business scenarios.

• Architecturally, Elastic Scaler adopts a plugin mechanism, supporting user-defined scaling decision algorithms and flexible extension of custom resource management logic.
• In terms of capabilities, Elastic Scaler supports both metrics-driven and state-driven scaling semantics, where state-driven scaling primarily serves business scenarios with significant fluctuations or sudden changes in resource demand.

Application Scenarios ​

Elastic Scaler is applicable to scenarios where various business services are deployed in a Kubernetes cluster environment and require dynamic resource management, including:

• Dynamic load scenarios: Request volume fluctuates significantly over time, requiring dynamic adjustment of the number of service instances based on actual load.
• Cost optimization scenarios: Under the premise of ensuring service performance, reducing resource costs and improving resource utilization through intelligent scaling.
• Mixed load scenarios: Business scenarios with a mix of long and short requests and varying concurrency, requiring intelligent scaling based on request characteristics and instance state.
• Multi-tenant scenarios: Multiple tenants share resources, requiring dynamic resource allocation based on each tenant's SLA requirements.
• PD separation architecture: In the Prefill-Decode separation architecture, independent adjustment of P-side and D-side resource ratios is required.
• Explicit replica count scenarios: Directly specifying the target replica count based on external state, applicable to scenarios such as tidal traffic or scheduled load switching that require explicit capacity targets.

Capability Scope ​

• Supports deployment and usage in K8s clusters.
• Supports metrics-driven scaling (MetricsTrigger); built-in APA algorithm, compatible with HPA algorithm.
• Supports state-driven scaling (StateTrigger).
• Supports Resource, External, ExternalServer, and Custom metric types (the HPA path does not support ExternalServer).
• Supports custom scaling algorithm plugin development and registration for invocation.
• Supports custom resource plugin development (via ResourceScalingGroup).
• Compatible with K8s native HPA capabilities.

Notice:

• When scalingAlgorithm is HPA under MetricsTrigger, metric types support Resource, External, and Custom, but not ExternalServer.
• When using External and Custom metrics, the cluster must have the corresponding Metrics API deployed and available (such as external.metrics.k8s.io, custom.metrics.k8s.io); when using ExternalServer, ensure the metric endpoint is reachable and query can correctly return a numeric value.

Highlighted Features ​

• Plugin architecture: Supports plugin-based integration of scaling decision algorithms, enabling users to flexibly define and evolve scaling algorithms based on business characteristics.
• Multiple trigger modes: Supports metrics-driven (MetricsTrigger) and state-driven (StateTrigger) scaling semantics.
• Multi-metric system: Supports metrics from various sources (Resource, External, ExternalServer, Custom) as scaling decision inputs.
• Generalized resource management capability: No longer limited to specific resource types; supports arbitrary custom resource integration into the scaling system through the Resource plugin mechanism.
• K8s native integration: Based on K8s HPA (Horizontal Pod Autoscaler) and custom resource extensions, fully compatible with the K8s ecosystem.

Implementation Principle ​

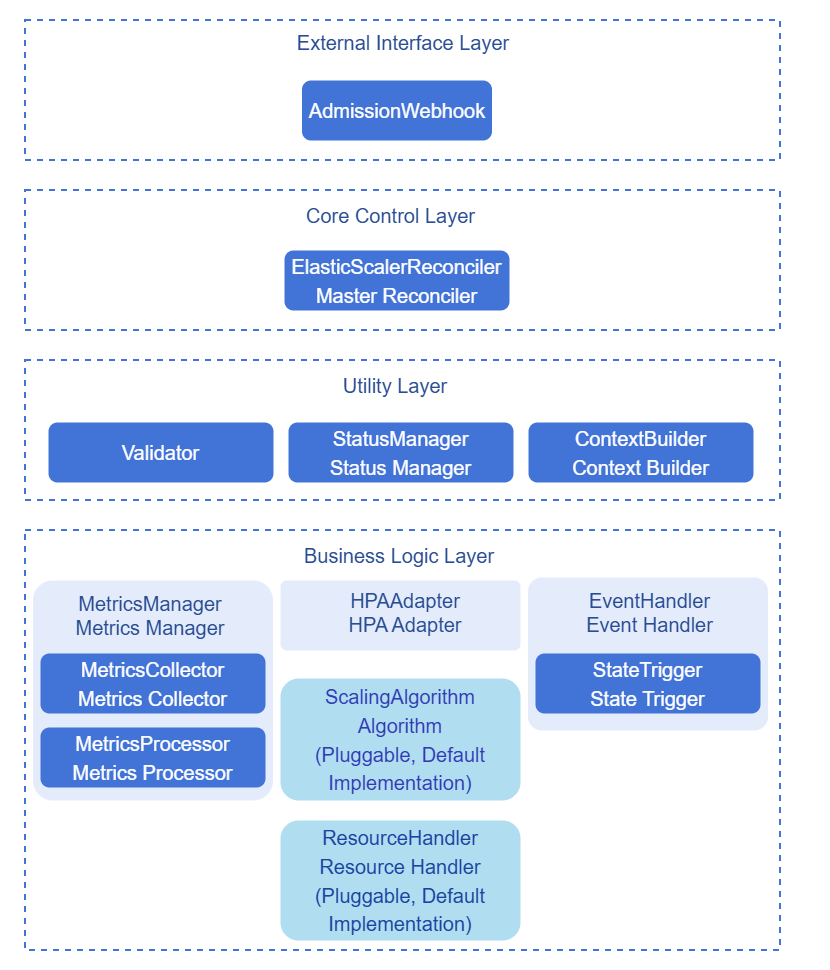

Figure 1 Component Architecture Diagram

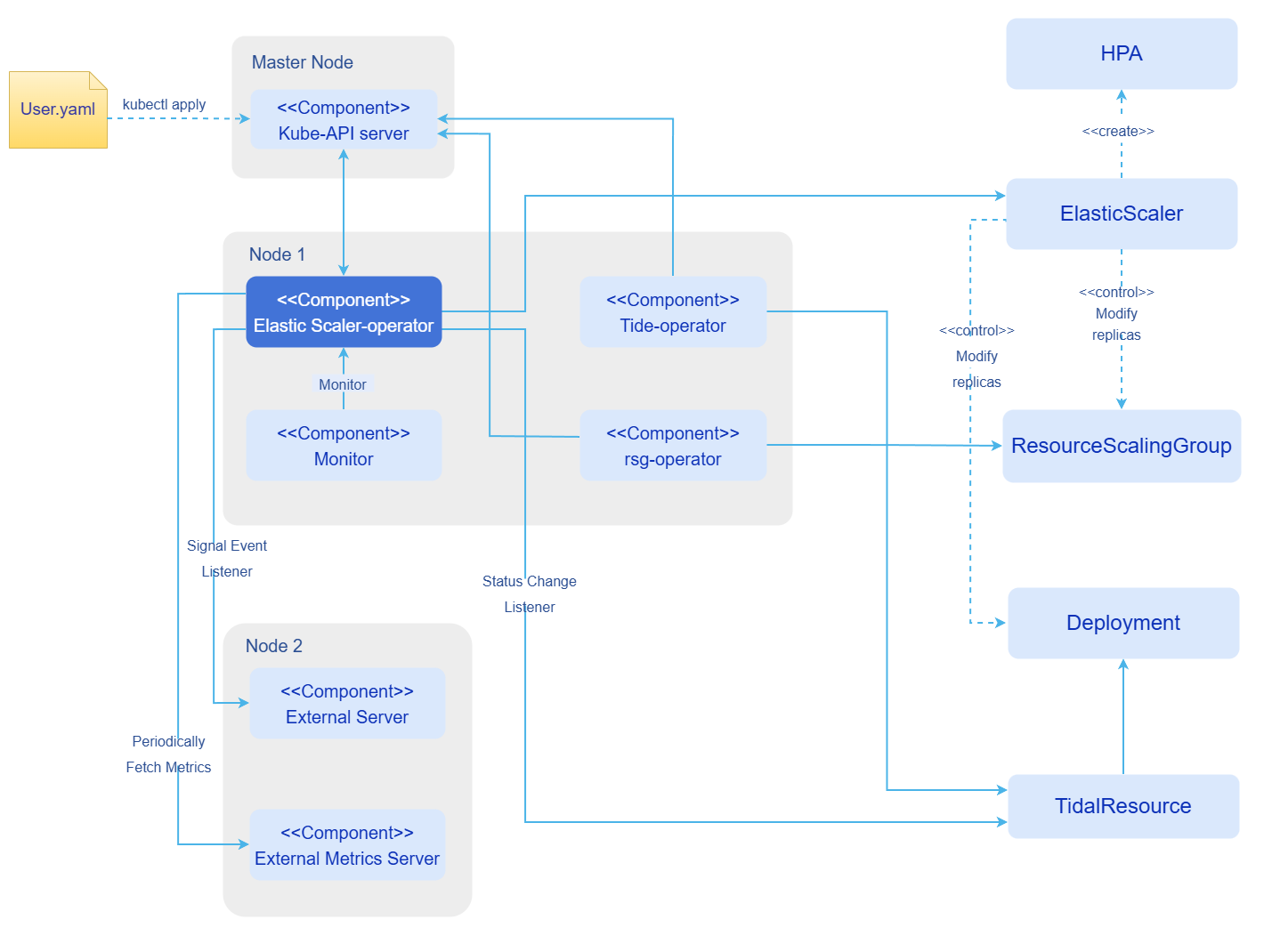

Figure 2 Component Deployment View

Elastic Scaler manages different types of scaling trigger sources through a unified Trigger abstraction. Based on the configured Trigger type, the framework selects different execution paths:

1. MetricsTrigger (metrics-driven): Under the custom algorithm path, ContextBuilder assembles metrics and algorithm context, MetricsManager completes metric collection and stabilization, and then the scaling algorithm calculates the target replica count and updates the target resource; under the HPA algorithm path, HPAAdapter creates and maintains K8s HPA resources, with actual scaling decisions executed by the cluster HPA Controller. The responsibilities and collaboration of the two modules are described in ContextBuilder Module and MetricsManager Module below.
2. StateTrigger (state-driven): Elastic Scaler listens for state changes of external resources, reads the status.desiredReplicas field of external resources, and applies this value to the target resource. Applicable to scenarios such as tidal traffic and scheduled load switching. The specific flow is as follows:
   1. An external controller (such as Tidal) calculates the desired replica count and writes it to the status.desiredReplicas field of the external resource.
   2. The external resource is bound to ElasticScaler via labels (elasticscaler.io/namespace and elasticscaler.io/name).
   3. Elastic Scaler listens for state changes of the external resource and reads the status.desiredReplicas field.
   4. Elastic Scaler applies the desired replica count to the target resource.

From an architectural perspective, Elastic Scaler is divided into the external interface layer, core control layer, coordination tool layer, and business logic layer. ElasticScalerReconciler resides in the core control layer, responsible for driving a complete reconciliation cycle; ContextBuilder resides in the coordination tool layer, providing unified context for each execution component; MetricsManager resides in the business logic layer, specifically responsible for metric collection and stabilization processing in metrics-driven mode. Compared to the earlier approach of exposing external.metrics.k8s.io through a standalone MetricsAdapter, the current implementation consolidates MetricsCollector as an internal framework component, orchestrated uniformly by MetricsManager, reducing component responsibility overlap.

ContextBuilder Module ​

ContextBuilder is the context management service for cross-component interaction, responsible for assembling ElasticScaler CR configuration, runtime data, and policy parameters into a unified context object, avoiding direct coupling between the controller, metrics module, and algorithm module.

Main Responsibilities

• Metrics pipeline: Through BuildMetricsContext, it constructs MetricsContext, aggregating the Pod list, ElasticScaler identifiers (namespace/name), metric specifications from spec.trigger.metricsTrigger.metrics, metric processing policies (MetricsPolicyConfig), and the current collection time anchor, for MetricsManager and its sub-modules to share within the same reconciliation cycle.
• Algorithm decision: Through BuildScalingAlgorithmContext, it constructs ScalingAlgorithmContext, after MetricsManager returns stabilized metrics, injecting processed metrics, algorithm name and algorithmConfig, replica upper/lower bounds (minReplicas/maxReplicas), current replica count and last scaling time, etc., for ScalingAlgorithm to calculate the desired replica count.

Metrics Processing Policy (MetricsPolicyConfig)

Metric stabilization parameters are uniformly parsed and injected into MetricsContext by ContextBuilder during the BuildMetricsContext stage, ensuring consistent MetricsProcessor policies within the same reconciliation cycle. Users can configure the following keys in the metadata.annotations of the ElasticScaler object (when not configured or configured with invalid values, built-in defaults are used):

Table 1 Metrics Processing Policy Annotation Description

MetricsManager Module ​

MetricsManager is the unified coordination entry point for the metrics pipeline, and only functions under the MetricsTrigger path when metric collection and algorithm decisions are completed within the framework (typically the custom algorithm path). It exposes GetMetrics externally and internally chains MetricsCollector (collection) and MetricsProcessor (stabilization) in a fixed sequence, masking the differences in collection implementation across Resource, External, ExternalServer, and Custom metric types.

Sub-module Responsibilities

• MetricsCollector: Concurrently collects raw samples according to the metric specifications in MetricsContext. Resource/External/Custom types query via the API Server; ExternalServer types access external metric services (such as Prometheus). Collection uses bounded concurrency (default maximum 10 concurrent channels) and per-metric timeout (default 5 seconds) to prevent slow metrics from dragging down the entire reconciliation cycle; results are split into successful samples (Raw) and failure details (Failures).
• MetricsProcessor: Within the [CollectionTime - WindowSeconds, CollectionTime] time window, performs time normalization, sliding window aggregation, missing value processing, and optional outlier filtering on raw samples, outputting ProcessedMetricsValue (metric name + stabilized value) for algorithm consumption; and recycles long-inactive object-metric keys according to GCFactor, preventing unbounded cache growth.

Collaboration with ContextBuilder and Controller

During a MetricsTrigger reconciliation, the main metrics-related path is as follows:

1. ElasticScalerReconciler calls ContextBuilder.BuildMetricsContext to obtain MetricsContext.
2. Calls MetricsManager.GetMetrics(metricsContext): internally first CollectMetrics then ProcessMetrics.
3. If there are collection failures, GetMetrics returns processed metrics along with MetricsDetail.CollectFailures; the controller updates status accordingly (partial success semantics: successful samples still enter the algorithm, failure items are written to status for troubleshooting).
4. ContextBuilder.BuildScalingAlgorithmContext encapsulates processed metrics and replica information into ScalingAlgorithmContext.
5. ScalingAlgorithm calculates the desired replica count based on this context, which is then applied to the target resource by ResourceHandler.

Note:

• When using the HPA algorithm, scaling decisions are executed by the K8s HPA Controller and do not go through the complete MetricsManager → ScalingAlgorithm pipeline described above; Elastic Scaler is primarily responsible for HPA resource lifecycle management and status mapping.
• When using APA or other built-in or registered custom algorithms, MetricsManager collects and stabilizes metrics, then AlgorithmManager.CalculateDesiredReplicas calculates replicas and ResourceHandler executes the scaling.

Relationship with Related Features ​

• EagleEye: Compatible with near-real-time monitoring metrics provided by EagleEye for inference services, including key metrics at different granularities such as business runtime, system runtime, and hardware health. Integration with EagleEye has not yet been implemented in the current version.
• Tidal: Compatible with the Tidal component; when using the tidal algorithm, Tidal expresses explicit capacity targets through the status.desiredReplicas field, and Elastic Scaler is responsible for execution.
• ResourceScalingGroup: Compatible with the ResourceScalingGroup CRD; uses custom resource plugins to integrate into the decision framework for fine-grained AI resource management.

Installation ​

This section introduces methods for independently deploying Elastic Scaler in an existing cluster and for deploying Elastic Scaler through the InferNex suite integration.

Independent Deployment ​

This section describes how to independently deploy Elastic Scaler in a K8s cluster that already has inference services and monitoring components.

Prerequisites ​

Before starting the installation, ensure the following conditions are met:

• Environment requirements:

  • Kubernetes cluster: v1.28.0 or above.
  • Cluster administrator privileges: for installing CRDs and cluster-level resources.
  • Helm tool: for deploying Elastic Scaler and related components.

• Hardware requirements:

  • Elastic Scaler itself has no special hardware requirements; as a lightweight controller component, it can run on standard x86 or ARM architecture nodes.

Installing Elastic Scaler ​

Execute the following command to install Elastic Scaler.

helm install elastic-scaler oci://cr.openfuyao.cn/charts/pd-orchestrator --version 26.6.0

Installs the pd-orchestrator chart from the OCI repository. This chart installs ElasticScaler, RSG, and Tidal components by default, and creates a RSG CR and ElasticScaler CR instance configuration by default.

If you only need to deploy the ElasticScaler Controller currently, it is recommended to explicitly disable other components and default example instances:

helm install elastic-scaler oci://cr.openfuyao.cn/charts/pd-orchestrator --version 26.6.0 \
  --set elastic-scaler.enabled=true \
  --set elastic-scaler.elasticScaler.enabled=false \
  --set resourcescalinggroup.enabled=false \
  --set resourcescalinggroup.instanceConfig.enabled=false \
  --set tidal.enabled=false

Note:

• When deploying Elastic Scaler, the monitoring data source and scaling target must be correctly configured.
• The ElasticScaler CR needs to be configured with the correct target resource (Deployment, StatefulSet, etc.) and Trigger configuration.
• For detailed configuration of scaling policies, please refer to the Configuring Scaling Policies section.

InferNex Integrated Deployment ​

InferNex is a one-click integrated intelligent routing, monitoring, and elastic scaling deployment suite that includes the elastic-scaler component internally.

Prerequisites ​

• Kubernetes v1.28.0 or above.
• At least one inference chip per inference node.
• At least 16GB memory and 4 CPU cores per inference node.
• Online installation requires access to the image repository: oci://cr.openfuyao.cn.
• User has permissions to create RBAC resources.

Quick Installation of InferNex ​

InferNex can be independently deployed in two ways:

• Obtain the project installation package from the openFuyao official artifact repository.

  1. Install from the remote repository.

     bash

     helm install infernex oci://cr.openfuyao.cn/charts/infernex --version xxx

     Where xxx should be replaced with the specific project installation package version, such as 0.21.1, and infernex is the release name.

     Before executing the installation, ensure:

     • The cluster has created the namespaces istio-system (Istio Gateway resources must be deployed in this namespace) and scaling-system.

• Obtain from the openFuyao GitCode repository.

  1. Pull the project from the repository.

     bash

     git clone https://gitcode.com/openFuyao/InferNex.git

  2. Install and deploy.

     Using the release name infernex as an example, execute the following command in the same-level directory as InferNex:

     bash

     cd InferNex/charts/infernex
     helm dependency build
     helm install -n <namespace> infernex .

Configuring Scaling Policies ​

This section explains how to configure Elastic Scaler scaling policies for different business scenarios.

Regardless of which trigger method is chosen, creating or updating an ElasticScaler will go through admission validation (AdmissionWebhook); the controller will also perform supplementary validation (Validator) based on the actual cluster state during the reconciliation process. For specific rules and troubleshooting methods, see Metrics-Driven Scaling (MetricsTrigger) and State-Driven Scaling (StateTrigger).

Metrics-Driven Scaling (MetricsTrigger) ​

Metrics-driven scaling automatically adjusts the replica count based on real-time metric changes, applicable to continuously running business scenarios with smoothly varying load.

Metrics Processing Policy Annotation Configuration ​

Metric stabilization policies are delivered through ElasticScaler's metadata.annotations, parsed and injected into MetricsContext by the ContextBuilder Module during the BuildMetricsContext stage, for use by MetricsManager's MetricsProcessor within the same reconciliation cycle. Annotation key names, meanings, and architectural descriptions are provided in Metrics Processing Policy (MetricsPolicyConfig) above; the YAML below is an annotation configuration example (can be used in combination with custom algorithm or HPA configurations; the policy primarily affects the framework's internal metric collection and stabilization pipeline, while under HPA mode actual scaling is still executed by the cluster HPA Controller).

apiVersion: elasticscaler.io/v1alpha1
kind: ElasticScaler
metadata:
  name: metrics-policy-example
  namespace: ai-inference
  annotations:
    # Sliding statistics window (seconds), must be a positive integer; defaults to 60 if not configured or invalid
    elasticscaler.io/metrics.windowSeconds: "120"
    # Aggregation method within the window: Average / Max / Min / P90 (case-insensitive)
    elasticscaler.io/metrics.aggregationType: "Max"
    # Missing sample policy: Ignore / TreatAsZero / Fail (case-insensitive)
    elasticscaler.io/metrics.missingDataPolicy: "ignore"
    # Historical sample recycling coefficient, must be a positive integer; defaults to 5 if not configured or invalid
    elasticscaler.io/metrics.gcFactor: "8"
    # Whether to enable outlier filtering: true / false
    elasticscaler.io/metrics.enableOutlierFilter: "true"
    # Outlier determination threshold, must be a positive float; defaults to 1.5 if not configured or invalid
    elasticscaler.io/metrics.outlierThreshold: "2.5"
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: vllm-inference

  minReplicas: 2
  maxReplicas: 10

  trigger:
    type: MetricsTrigger
    metricsTrigger:
      # Example with built-in APA algorithm; can also be replaced with HPA or other registered algorithm names
      scalingAlgorithm: APA
      metrics:
      - type: Resource
        resource:
          metricsName: cpu
          target:
            type: Utilization
            averageUtilization: 70

Table 2 Metrics Processing Policy Annotation Values and Defaults

Note:

• When a single annotation value is invalid, that key is ignored and falls back to the corresponding default value, which does not cause ElasticScaler creation failure.
• When only some annotations are configured, unconfigured items use the defaults from the table above.

Using the HPA Algorithm ​

The HPA algorithm performs scaling based on CPU/memory utilization, leveraging K8s native HPA capabilities.

Note:

• Elastic Scaler automatically creates and manages the corresponding Kubernetes HPA resource under HPA algorithm mode.
• If switching the scaling algorithm from HPA to another mode (such as a custom algorithm), you must first delete the Elastic Scaler instance or manually clean up the generated HPA resource; otherwise, resource management conflicts will occur.
• Elastic Scaler and the managed resource (Deployment, StatefulSet, etc.) must maintain a one-to-one mapping relationship.
• Under HPA mode, Elastic Scaler and the managed resource must be deployed in the same namespace.

apiVersion: elasticscaler.io/v1alpha1
kind: ElasticScaler
metadata:
  name: hpa-scaling-example
  namespace: ai-inference
spec:
  # Scaling target
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: vllm-inference

  # Minimum/maximum replica count
  minReplicas: 2
  maxReplicas: 10

  # Metrics-driven trigger configuration
  trigger:
    type: MetricsTrigger
    metricsTrigger:
      # Use HPA algorithm
      scalingAlgorithm: HPA

      # Metric configuration
      metrics:
      - type: Resource
        resource:
          metricsName: cpu
          target:
            type: Utilization
            averageUtilization: 70

Table 3 HPA Policy Parameter Description

Using a Custom Algorithm ​

When scalingAlgorithm is not HPA, Elastic Scaler completes metric collection, stabilization, replica calculation, and resource update within the controller, without creating a K8s HPA object. The framework includes the built-in APA (Average Pod Autoscaling) algorithm; the algorithm name is case-insensitive; when scalingAlgorithm is left empty, APA is used by default. Users can also implement the ScalingAlgorithm interface and register it with DefaultAlgorithmManager, then specify the algorithm name via scalingAlgorithm in the CR for invocation.

Table 4 Common Parameters for Built-in APA Algorithm algorithmConfig

The following example uses the built-in APA algorithm and queries business metrics from Prometheus via ExternalServer (the query field carries PromQL, consistent with the oFEP-0044 enhanced semantics):

apiVersion: elasticscaler.io/v1alpha1
kind: ElasticScaler
metadata:
  name: custom-scaling-example
  namespace: ai-inference
  annotations:
    elasticscaler.io/metrics.windowSeconds: "120"
    elasticscaler.io/metrics.aggregationType: "Max"
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: vllm-inference

  minReplicas: 2
  maxReplicas: 10

  trigger:
    type: MetricsTrigger
    metricsTrigger:
      scalingAlgorithm: APA
      algorithmConfig:
        upTolerance: "0.1"
        downTolerance: "0.1"
        maxScaleUpRate: "2.0"
        maxScaleDownRate: "2.0"
      metrics:
      - type: ExternalServer
        externalServer:
          metricsName: inference_qps
          target: "100"
          endpoint: "http://prometheus.monitoring.svc:9090/api/v1/query"
          query: "sum(rate(http_requests_total{job=\"vllm\"}[1m]))"
          protocol: http

Table 5 Custom Algorithm (Non-HPA) Policy Parameter Description

AdmissionWebhook and Validator Supplementary Notes ​

AdmissionWebhook (during creation/update)

• When submitting an ElasticScaler resource to the cluster using kubectl apply, kubectl create, or kubectl edit, if spec validation fails, the API Server will reject the request; the common error message is "admission webhook denied the request". The returned information will provide the specific field path (such as spec.trigger.metricsTrigger, invalid metric at index N); please modify the ElasticScaler CR manifest YAML used to create or update that instance accordingly (i.e., the configuration file submitted via the above commands, not other unrelated manifests in the cluster).
• Specification requirements related to MetricsTrigger include:
  • When spec.trigger.type is MetricsTrigger, only spec.trigger.metricsTrigger should be configured; do not also fill in stateTrigger.
  • scalingAlgorithm must not be empty; metrics must contain at least one metric.
  • Each metrics[] entry must have only the corresponding sub-structure filled based on type (Resource/External/ExternalServer), with all required fields present; if scalingAlgorithm is HPA, the ExternalServer metric type cannot be used, otherwise a message will indicate that a metric entry is invalid.
• The following fields are validated for all trigger types: spec.targetRef's apiVersion, kind, and name are required; minReplicas/maxReplicas values must be valid and maxReplicas >= minReplicas; spec.trigger.type must be MetricsTrigger or StateTrigger.

Validator (during controller runtime)

• After admission passes, the controller still validates: whether the specified targetRef actually exists in the cluster; whether another ElasticScaler is already managing the same targetRef (a one-to-one mapping must be maintained).
• If scalingAlgorithm is not HPA, the controller checks whether the algorithm name is registered in the running environment; if not registered, the object may be created successfully, but .status.conditions will show Validated=False with reason=ValidationFailed.
• Please execute the command kubectl describe elasticscalers <name> -n <namespace> to check the type=Validated condition; when validation fails, the message field explanation is the reason.

State-Driven Scaling (StateTrigger) ​

State-driven scaling is triggered based on external resource state changes, applicable to scenarios such as tidal traffic and scheduled load switching that require explicit capacity targets.

apiVersion: tidal.io/v1alpha1
kind: Tidal
metadata:
  name: tidal-frequent-test
  namespace: ai-inference
  labels:
    elasticscaler.io/name: state-scaling-example
    elasticscaler.io/namespace: ai-inference
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: elastic-scaler-state-test   # Change to the Deployment name you want to scale
    namespace: ai-inference
  triggers:
    times:
      rules:
        - name: time1
          cron: "CRON_TZ=Asia/Shanghai 0 50 16 * * *"
          replicas: 3
          description: time1
        - name: time2
          cron: "CRON_TZ=Asia/Shanghai 0 0 8 * * *"
          replicas: 5
          description: time2

apiVersion: elasticscaler.io/v1alpha1
kind: ElasticScaler
metadata:
  name: state-scaling-example
  namespace: ai-inference
spec:
  # Scaling target
  targetRef:
    apiVersion: tidal.io/v1alpha1
    kind: Tidal
    name: tidal-frequent-test

  # State-driven trigger configuration
  trigger:
    type: StateTrigger
    stateTrigger: {}

Table 6 StateTrigger Parameter Description

AdmissionWebhook and Validator Supplementary Notes ​

AdmissionWebhook (during creation/update)

• When spec.trigger.type is StateTrigger, spec.trigger.stateTrigger must be configured (can be written as an empty object {}); do not also configure metricsTrigger.
• If inconsistent with the above structure, creation or update will be rejected, and the error message will typically contain prompts such as stateTrigger or only stateTrigger.

Validator (during controller runtime)

• In addition to validations common to all modes (the resource pointed to by targetRef must exist, and the same targetRef can only be managed by one ElasticScaler), StateTrigger also requires: the resource pointed to by targetRef must already have a status in the cluster, and the status must contain at least one of replicas or desiredReplicas (for state-driven reading of the desired replica count). If the external controller has not yet written the status, Validated=False may appear.
• Similarly, please execute the command kubectl describe elasticscalers <name> -n <namespace> to check the Validated condition, and troubleshoot based on the message field.

Using Elastic Scaling ​

This section demonstrates how to view, monitor, and manage Elastic Scaler scaling behavior in the cluster.

Viewing Scaling Policies ​

# View all ElasticScaler resources
kubectl get elasticscalers -n <NAMESPACE>

# View details of a specific ElasticScaler
kubectl describe elasticscalers <SCALER_NAME> -n <NAMESPACE>

Viewing Scaling Events ​

# View scaling events
kubectl get events -n <NAMESPACE> --field-selector involvedObject.kind=ElasticScaler

# View controller logs
kubectl logs -n <NAMESPACE> -l control-plane=<RELEASE-NAME>-elastic-scaler-controller-manager -f

Disabling/Enabling Scaling Policies ​

Elastic Scaler disables scaling policies by deleting the CR and enables them by creating the CR.

# Disable scaling policy (delete CR)
kubectl delete elasticscalers <SCALER_NAME> -n <NAMESPACE>

# Enable scaling policy (create CR)
kubectl apply -f <elastic-scaler-config>.yaml

Common Issues ​

1. What types of metrics are supported?

   Under MetricsTrigger, four types of metrics are supported: Resource (CPU/memory, etc.), External (external.metrics.k8s.io), Custom (custom.metrics.k8s.io), and ExternalServer (HTTP/HTTPS access to external metric services, supports query carrying PromQL). The HPA algorithm path does not support ExternalServer; the non-HPA path (such as built-in APA) supports all four types, with specific collection depending on cluster Metrics API or external endpoint availability.

2. How to debug scaling policies?

   You can use kubectl describe elasticscalers to view conditions such as Validated, MetricsPipeline, and ScalingCalculated, combined with Controller logs and K8s events for troubleshooting. Under the non-HPA path, MetricsPipeline reflects whether metric collection is fully successful or partially successful (MetricsPartialSuccess).

3. How does StateTrigger work?

   Under StateTrigger mode, an external controller (such as Tidal) calculates the desired replica count and writes it to the status.desiredReplicas field of the external resource. Elastic Scaler listens for state changes of the external resource, reads this field, and applies it to the target resource. The external resource needs to be bound to ElasticScaler via the labels elasticscaler.io/namespace and elasticscaler.io/name.

4. How to develop a custom scaling algorithm?

   The framework includes the built-in APA algorithm; you can directly set scalingAlgorithm to APA (or leave it empty to use the default). If you need to extend, implement the ScalingAlgorithm interface and register it via DefaultAlgorithmManager.RegisterAlgorithm(), then fill in the registered name in the scalingAlgorithm field of the CR; the controller invokes it via AlgorithmManager.CalculateDesiredReplicas. For detailed steps, see the Plugin Development Guide.

5. How to switch between HPA and APA (custom algorithm path)?

   Custom scaling algorithms need to implement the ScalingAlgorithm interface and register the algorithm via the DefaultRegistry.Register() method. For detailed development guidance, please refer to the Plugin Development Guide.

   Before changing scalingAlgorithm from HPA to a non-HPA algorithm (or vice versa), it is recommended to first delete the ElasticScaler instance or manually clean up residual HPA resources to avoid OwnerReference and replica management conflicts. After switching, the non-HPA path will directly update target resource replicas via the controller.

6. How to support custom resource types?

   By implementing the ResourceHandler interface and using the RegisterResourceHandler() method to register, you can support arbitrary custom resource types. Custom resources need to implement methods such as GetCurrentReplicas() and UpdateReplicas().
