AI Inference KVCache Index Management ​

Feature Overview ​

cache-indexer is a global KVCache index component designed for large language model inference scenarios. It uniformly maintains a two-layer KVCache view of L1 (local HBM on inference instances) and L3 (memory cache on inference instances). Routing components can call cache-indexer to query the KVCache hit rate of candidate inference instances, enabling more accurate request-level scheduling.

Application Scenarios ​

cache-indexer is applicable for deploying large language model inference services in a Kubernetes cluster where request routing needs to be optimized based on KVCache hit conditions.

• Multi-instance inference backend: Multiple vLLM instances serve simultaneously, and the most suitable instance needs to be selected based on request prefix cache hit conditions.
• KVCache-aware routing: Routing components such as Hermes-router need to obtain L1/L3 hit rates for KVCache-aware routing strategies.
• Distributed cache reuse: Inference services use distributed cache management systems such as Mooncake and want to include KVCache that has already been offloaded to memory as a scheduling basis.
• Dynamic scaling scenarios: When inference instances or Mooncake Masters go online or offline, cache-indexer needs to automatically discover and update index collection targets.

Capability Scope ​

cache-indexer currently provides the following capabilities:

• Supports dynamic discovery of vLLM Pods and Mooncake Master Pods through Kubernetes Pod labels.
• Supports subscribing to vLLM ZMQ KV-events to maintain L1 KVCache indexes.
• Supports polling Mooncake Master to maintain L3 KVCache indexes.
• Supports querying L1/L3 KVCache hit rates of candidate instances through the /kv-cache/hit-rate API.
• Supports independent deployment via Helm Chart, and also supports integrated deployment as an InferNex sub-component.

Note:

• cache-indexer does not include tokenizer capabilities. Callers need to pass pre-encoded token_ids in the request.
• Since Mooncake V1 has not yet provided an SSD-level KVCache query API, L3 indexes do not include KVCache information on SSD.

Software Dependencies ​

The L1/L3 hit rates of cache-indexer depend on the inference engine, distributed cache management system, and its own configuration being consistent. The currently verified combinations are as follows.

Table 1 cache-indexer dependency components

Key Features ​

• L1/L3 dual-layer view: Simultaneously maintains the local HBM cache view on inference instances and the distributed memory cache view.
• Unified KVCache block calculation mechanism: Replicates the vLLM block hash calculation logic, aligning the calculation results on the query side with vLLM events and Mooncake keys.
• Dynamic service discovery: Periodically discovers vLLM Pods and Mooncake Master Pods, automatically driving subscription and polling target updates.
• Lightweight API: Only accepts necessary inputs such as token_ids, block_size, and cache_salt, without executing a tokenizer within cache-indexer.

Implementation Principle ​

cache-indexer is located on the routing decision path. The main workflow is as follows.

1. cache-indexer lists vLLM Pods and Mooncake Master Pods with specific labels through the Kubernetes API Server, constructing a discovery snapshot.
2. For each vLLM Pod, a ZMQ SUB connection is started to subscribe to BlockStored / BlockRemoved / AllBlocksCleared events, writing to the L1 index.
3. For Mooncake Master, periodically calls GET /get_all_keys and GET /query_key to pull block replica lists, and parses the mapping of vLLM Pod IP addresses to Mooncake client transport endpoints through GET /get_all_segments, writing to the L3 index.
4. The routing component calls POST /kv-cache/hit-rate, and cache-indexer calculates the longest consecutive prefix hit on both L1/L3 indexes and returns the result.

The overall architecture is as follows.

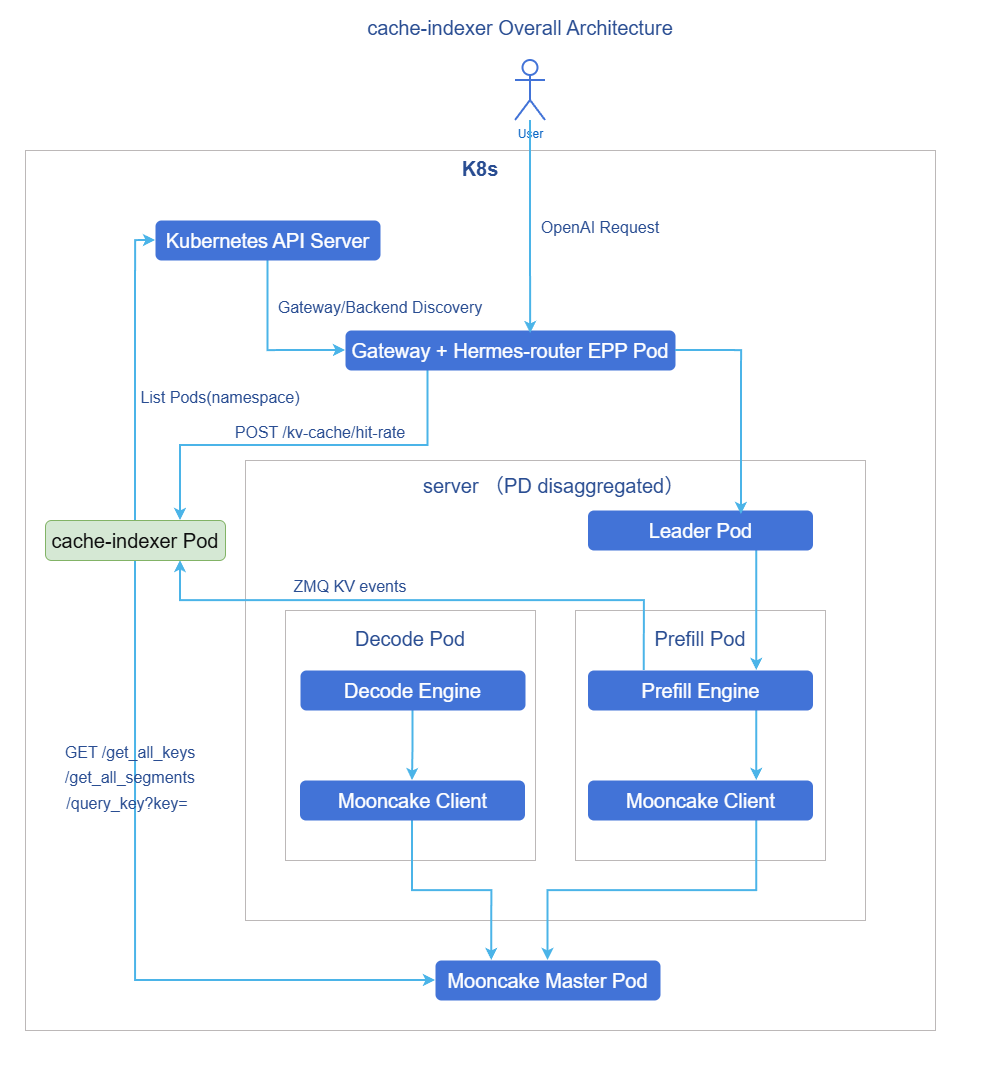

Figure 1 cache-indexer overall architecture

Installation ​

Independent Deployment ​

This section describes deploying cache-indexer independently in a cluster that already has an inference engine and a distributed cache management system.

Component Specifications ​

When deploying cache-indexer independently, companion components are required to provide collectible L1/L3 data.

Note:

Without deploying the inference engine and distributed cache management system, the cache-indexer Pod can still start, health checks and query APIs are accessible, but L1/L3 hit rates will both be 0.

Prerequisites ​

Before starting the installation, ensure the following conditions are met.

• Environment Requirements

  • Kubernetes cluster: 1.28+.
  • Helm tool: for deploying the cache-indexer chart.
  • User has permissions to create Deployment, Service, ConfigMap, ServiceAccount, Role, RoleBinding in the target namespace.

• Component Requirements

  • If L1 hit rate is needed, vLLM inference instances must be deployed in the cluster, with labels, environment variables, startup parameters, and ZMQ ports configured as described in the Inference Engine (vLLM Example) section.
  • If L3 hit rate is needed, Mooncake Master and Mooncake client must be deployed in the cluster, with labels, ports, and client parameters configured as described in the Distributed Cache Management System (Mooncake Example) section.
  • If only verifying cache-indexer installation and API connectivity, the inference engine and distributed cache management system can be deployed later.

• Hardware Requirements

  • cache-indexer itself has no special hardware requirements and can run on standard CPU nodes.

Quick Installation ​

1. Pull the cache-indexer Helm Chart package.

   bash

   helm pull oci://cr.openfuyao.cn/charts/cache-indexer --version 26.6.0

2. Extract the Chart package.

   bash

   tar -xzvf cache-indexer-26.6.0.tgz

3. Install cache-indexer.

   bash

   helm -n <NAMESPACE> install <RELEASE_NAME> ./cache-indexer

   Parameter descriptions are as follows.

   • <NAMESPACE>: The installation namespace for cache-indexer, which is also the default service discovery scope.
   • <RELEASE_NAME>: Helm release name, primarily affecting Deployment, ConfigMap, ServiceAccount and other resource names.
   • --create-namespace (optional): Used when creating a new namespace.

4. Verify the deployment.

   bash

   kubectl -n <NAMESPACE> get pod -l app.kubernetes.io/name=cache-indexer
   kubectl -n <NAMESPACE> get svc cache-indexer-service

InferNex Integrated Deployment ​

This section describes deploying cache-indexer through InferNex integration.

Component Specifications ​

InferNex is an AI inference service software suite provided by the openFuyao community and has now integrated cache-indexer. When deploying via InferNex, at least the following components need to be enabled.

Table 2 Minimum component set when deploying via InferNex

In the latest InferNex Chart, key linkage configuration for vLLM, Mooncake, and cache-indexer is exposed in values; during deployment, ensure that PYTHONHASHSEED, hash algorithm, ZMQ port name, and Mooncake Master HTTP port name are consistent.

Prerequisites ​

• The Kubernetes cluster can access oci://cr.openfuyao.cn or the user has prepared an offline Chart package.
• The user has the inference hardware, image pull permissions, and Helm installation permissions required by InferNex.

Quick Installation ​

1. Pull the InferNex Chart package. The version is release-26.6.0.

   bash

   helm pull oci://cr.openfuyao.cn/charts/infernex --version 26.6.0

2. Extract the Chart package.

   bash

   tar -xzvf infernex-26.6.0.tgz

3. Modify values.yaml according to your environment. Confirm at least the following switches and parameters.

   yaml

   inference-backend:
     services:
       - enabled: true
         kvTransferConfig:
           mooncake:
             use_store: true

   hermes-router:
     enabled: true

   cache-indexer:
     enabled: true

4. Install InferNex. The following command uses the release name infernex as an example.

   bash

   helm install -n <namespace> infernex ./infernex

For specific deployment methods, gateway, backend, and model configuration, refer to the InferNex User Guide.

Using the KVCache Hit Rate Query Service ​

cache-indexer exposes an intra-cluster API POST /kv-cache/hit-rate. This API is currently called mainly by intra-cluster routing components such as Hermes-router, and is not directly exposed to external cluster users.

The calling process is as follows.

1. The routing component constructs a list of candidate inference instance IP addresses and calls cache-indexer's /kv-cache/hit-rate.

   A request example is as follows.

   bash

   curl -X POST http://cache-indexer-service:8080/kv-cache/hit-rate \
     -H 'Content-Type: application/json' \
     -d '{
       "server_ip": ["this.is.pod.ip"],
       "body": {
         "token_ids": [9707, 0, 358, 3900, 374, 1234, 5678, 9012],
         "cache_salt": "",
         "block_size": 128
       }
     }'

   Request parameter descriptions are as follows.

   Table 3 Request parameter descriptions

   Parameter	Description
   server_ip	List of candidate inference instance Pod addresses; cache-indexer returns scoring results in input order.
   body.token_ids	Token ID sequence pre-encoded by the upstream tokenizer.
   body.cache_salt	Must be consistent with the cache_salt actually used by the corresponding vLLM inference request; pass an empty string when not used.
   body.block_size	KV block size consistent with vLLM --block-size; recommended to be a multiple of 128.

2. cache-indexer calculates the request block hash sequence based on token_ids, block_size, and cache_salt.

3. cache-indexer queries L1/L3 indexes separately and returns the hit rate for each candidate instance. A response example is as follows.

   json

   {
     "server_score_list": [
       {
         "server_ip": "this.is.pod.ip",
         "l1_hit_ratio": 1.0,
         "l3_hit_ratio": 1.0
       }
     ],
     "message": "",
     "status": 0
   }

   Response parameter descriptions are as follows.

   Table 4 Response parameter descriptions

   Parameter	Description
   server_score_list[].server_ip	Candidate inference instance Pod IP address.
   server_score_list[].l1_hit_ratio	L1 longest consecutive prefix hit rate, range [0,1].
   server_score_list[].l3_hit_ratio	L3 longest consecutive prefix hit rate, range [0,1].
   message	Business prompt information; returns an empty string on success.
   status	Business status code. Returns 0 on success; in error scenarios, returns the corresponding HTTP status code per the current implementation, including 400 (empty request body, invalid JSON, unknown field, server_ip empty or block_size less than or equal to 0), 405 (request method is not POST), 413 (request body exceeds size limit), and 500 (hit rate calculation failed).

Parameter Configuration Reference ​

cache-indexer ​

The corresponding configuration file is in the cache-indexer values.yaml.

image:
  repository: "cr.openfuyao.cn/openfuyao/cache-indexer"
  tag: "26.6.0"
  pullPolicy: IfNotPresent

service:
  name: cache-indexer-service
  port: 8080
  targetPort: 28080

resources:
  limits:
    cpu: "1"
    memory: 2Gi
  requests:
    cpu: 100m
    memory: 128Mi

log:
  level: info

http:
  shutdownTimeout: 10s
  readHeaderTimeout: 10s
  readTimeout: 30s
  writeTimeout: 30s
  idleTimeout: 120s
  maxHeaderBytes: 1048576
  maxHitRateBodyBytes: 4194304

blockKey:
  pythonHashSeed: "0"
  prefixCachingHashAlgo: sha256_cbor
  useIntBlockHashes: true

discovery:
  refreshInterval: 10s
  segmentsFetchTimeout: 2s
  labels:
    engineKey: openfuyao.com/engine
    engineValue: vllm
    pdRoleKey: openfuyao.com/pdRole
    pdRoleValue: [prefill, aggregate]
    kvManagerKey: openfuyao.com/kvmanager
    kvManagerValue: mooncake
  vllm:
    zmqPortName: zmq-pub
  mooncakeMaster:
    httpPortName: http
    rpcPortName: rpc
    httpPort: 9003
    rpcPort: 0

ingest:
  l1:
    backoffInitial: 1s
    backoffMax: 30s
  l3:
    scheme: http
    pollInterval: 10s
    httpTimeout: 5s

serviceAccount:
  create: true
  name: ""

podAnnotations: {}
podLabels: {}
nodeSelector: {}
tolerations: []
affinity: {}

Table 5 Helm Chart key parameter descriptions

Inference Engine (vLLM Example) ​

The following snippet illustrates the key fields in a vLLM Pod / Deployment that link with cache-indexer. This is not a complete deployment manifest.

metadata:
  labels:
    openfuyao.com/engine: vllm
    openfuyao.com/pdRole: aggregate

spec:
  containers:
    - name: vllm
      env:
        - name: PYTHONHASHSEED
          value: "0"
        - name: VLLM_KV_EVENTS_USE_INT_BLOCK_HASHES
          value: "1"
      args:
        - --enable-prefix-caching
        - --block-size=128
        - --prefix-caching-hash-algo=sha256_cbor
        - --kv-events-config={"enable_kv_cache_events":true,"publisher":"zmq","topic":"kv-events"}
      ports:
        - name: zmq-pub
          containerPort: 5557

Table 6 Inference Engine (vLLM) key parameter descriptions

Distributed Cache Management System (Mooncake Example) ​

The following snippets illustrate the key fields in Mooncake Master Pod / Deployment, Service, and Mooncake client that link with cache-indexer. These are not complete deployment manifests.

Mooncake Master Pod/Deployment ​

metadata:
  labels:
    openfuyao.com/kvmanager: mooncake

spec:
  containers:
    - name: mooncake-master
      args:
        - --port=50051
        - --metrics_port=9003
      ports:
        - name: rpc
          containerPort: 50051
        - name: http
          containerPort: 9003

Table 7 Mooncake Master key parameter descriptions

Mooncake Master Service ​

Mooncake Master needs to expose an admin HTTP Service port externally to support cache-indexer polling for L3 KVCache information.

service:
  ports:
    - name: rpc
      port: 30089
      targetPort: rpc
    - name: http
      port: 9003
      targetPort: http

Table 8 Mooncake Service key parameter descriptions

Mooncake Client Configuration ​

Mooncake client is actually responsible for managing KVCache in local memory and needs to be configured to ensure it can be correctly identified by cache-indexer.

mooncake:
  use_store: true
  config: |
    local_hostname: "$POD_IP"
    metadata_server: "redis://redis-service:6379"
    master_server_address: "mooncake-master-service:30089"
    device_name: ""
    protocol: "ascend"
    global_segment_size: 42949672960
    use_ascend_direct: true

Table 9 Mooncake Client key parameter descriptions
