NPU Operator ​

Feature Introduction ​

Kubernetes provides access to special hardware resources (such as Ascend NPUs) through Device Plugins. However, configuring and managing nodes with these hardware resources requires configuring multiple software components (such as drivers, container runtimes, or other libraries), which are complex and error-prone to install. NPU Operator uses the Operator Framework in Kubernetes to automatically manage all software components required to configure Ascend devices. These components include Ascend drivers and firmware, enabling the full lifecycle of cluster operation, and supporting MindCluster device plugins for cluster job scheduling, operations monitoring, fault recovery, and other capabilities. By installing the corresponding components, NPU resource management, optimized scheduling of workloads, and containerized support for training and inference tasks can be achieved, enabling AI jobs to be deployed and run on NPU devices in container form.

Table 1 Currently Supported Installable Components

For detailed information about components, please refer to MindCluster Introduction.

Component Version Compatibility ​

Table 2 Currently Supported Installable Components and Default Versions

Application Scenarios ​

Building clusters based on Ascend devices, supporting cluster job scheduling, operations monitoring, and fault recovery. NPU Operator can automatically identify Ascend nodes in the cluster and perform corresponding installation and deployment. For training scenarios, it supports NPU resource detection, whole-card scheduling, static vNPU scheduling, checkpoint resume training, and elastic training. For inference scenarios, it supports resource detection, whole-card scheduling, static vNPU scheduling, dynamic vNPU scheduling, inference card fault recovery, and rescheduling.

Capability Scope ​

• Automatically discovers Ascend NPU device nodes and labels them.
• Automatically deploys Ascend NPU driver and firmware.
• Automated deployment, installation, and lifecycle management of MindCluster cluster scheduling components.
• Supports one-click installation, configuration update, and uninstallation of vNPU components and vNPU-compatible Volcano resources.
• Supports installation, configuration update, and uninstallation of DRA kubelet plugin, DeviceClass, ResourceSlice publishing pipeline, and DRA soft partitioning dependency components.
• Supports deploying MindCluster, vNPU, and DRA components to different nodes through node selectors, and detects scheduling conflicts of key node components.

Highlight Features ​

NPU Operator can automatically identify Ascend nodes and device models in the cluster, installing the corresponding version of AI runtime essential components, greatly simplifying the barrier to configuring Ascend ecosystem components. It provides full lifecycle management and automated configuration deployment for installed components. NPU Operator can detect component installation status and provide detailed logs for debugging.

Implementation Principle ​

• The Operator modifies managed component states by monitoring changes in CRD-instantiated CRs.
• The Operator uses labels marked on nodes by NFD and the npu-feature-discovery component to label nodes with node labels suitable for Ascend component scheduling.

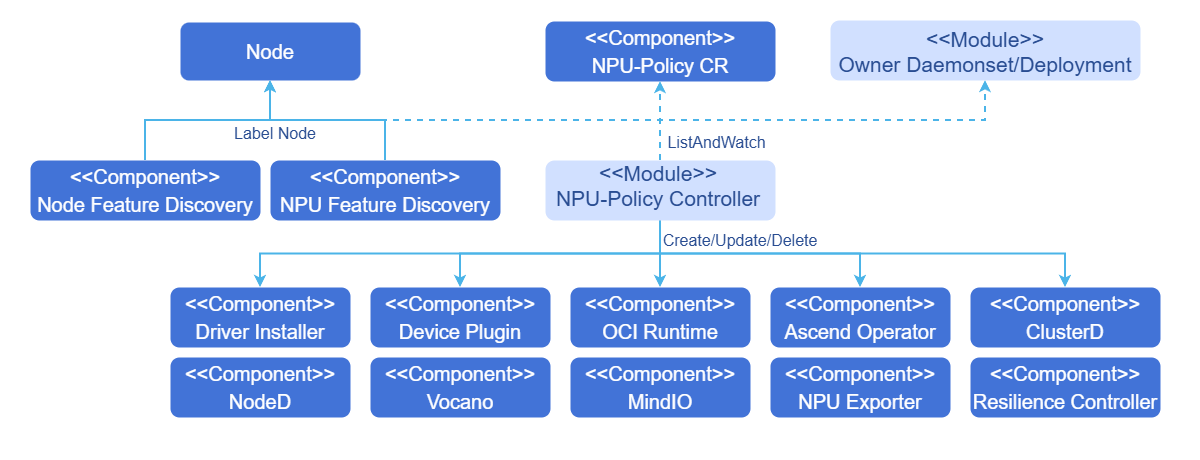

Figure 1 Principle Diagram

Relationship with Related Features ​

Please ensure that application-management-service and marketplace-service are running properly to guarantee that this feature can be installed from the application marketplace.

Operator Security Context ​

Some Pods managed by NPU Operator (such as driver containers) require elevated permissions as follows.

• privileged: true
• hostPID: true
• hostIPC: true
• hostNetwork: true

Reasons for elevated permissions:

• Access host filesystem and hardware devices to install driver firmware and SDK services on the host machine.
• Modify device permissions to accommodate non-root user usage.

Installation ​

openFuyao Platform Deployment ​

Online Installation ​

Prerequisites ​

• The current computer has kubectl and Helm CLI, or the cluster has a configurable application store or repository.

• Please confirm that the environment contains the bash tool; otherwise, the driver firmware installation script parsing may fail.

• The operating system version of all worker nodes or node groups running NPU workloads in the Kubernetes cluster must satisfy openEuler 22.03 LTS or Ubuntu 22.04 (ARM architecture).

  For worker nodes or node groups that only run CPU workloads, the nodes can run any operating system, as NPU Operator will not perform any configuration or management on nodes without NPU workloads.

  The components installed by the current NPU Operator require the runtime environment to satisfy NPU chip models 910B and 310P. For specific OS and hardware compatibility, please refer to the MindCluster documentation.

• Node Feature Discovery (NFD) and NPU Feature Discovery (NPU-Feature-Discovery) are dependencies of the Operator on each node.

  Note:
  By default, NFD master and worker nodes are automatically deployed by the Operator. If NFD is already running in the cluster, NFD deployment must be disabled when installing the Operator. Similarly, if NPU-Feature-Discovery has already been deployed in the cluster, NPU-Feature-Discovery deployment must also be disabled when installing the Operator.

  values.yaml

  yaml

  nfd:
    enabled: false
  npu-feature-discovery:
    enabled: false

  Determine whether NFD is already running in the cluster by checking NFD labels on nodes.

  sh

  kubectl get nodes -o json | jq '.items[].metadata.labels | keys | any(startswith("feature.node.kubernetes.io"))'

  If the command outputs true, NFD is already running in the cluster. In this case, set nodefeaturerules to install NPU custom node discovery rules.

  yaml

  nfd:
    nodefeaturerules: true

  By default, nfd is true, npu-feature-discovery is true, and nodefeaturerules is false.

• openFuyao platform has been installed in the cluster. For installation instructions, refer to the Quick Start documentation.

Installation Steps ​

NPU Operator extension component can be downloaded and installed from the openFuyao application marketplace.

1. Refer to the openFuyao platform documentation, enter the openFuyao platform, and select "Application Market > Application List" from the left navigation bar.

2. Search for "npu-operator" in the application list to find the NPU Operator extension component.

3. Click the NPU Operator card to enter the application detail page.

4. On the detail page, click "Deploy" in the upper right corner, and enter the "Application Name", "Version Information", and "Namespace" in the "Installation Information" section of the deployment interface.

5. Click "Confirm" to successfully deploy the component.

   Note:
   Currently, the online installation feature supports driver firmware installation for 910B and 310P series models. Driver firmware online installation for 910C models is not yet supported. If you need to install 910C model driver firmware, please refer to the Offline Installation section. When installing and deploying npu-operator components through the application marketplace, you can modify the corresponding values.yaml parameters; for details, see Table 4.

Offline Installation ​

Prerequisites ​

• The current computer has kubectl and Helm CLI, or the cluster has a configurable application store or repository.

• Please confirm that the environment contains the bash tool; otherwise, the driver firmware installation script parsing may fail.

• The operating system version of all worker nodes or node groups running NPU workloads in the Kubernetes cluster must satisfy openEuler 22.03 LTS or Ubuntu 22.04 (ARM architecture).

  For worker nodes or node groups that only run CPU workloads, the nodes can run any operating system, as NPU Operator will not perform any configuration or management on nodes without NPU workloads.

  The components installed by the current NPU Operator require the runtime environment to satisfy NPU chip models 910B and 310P. For specific OS and hardware compatibility, please refer to the MindCluster documentation.

• openFuyao platform has been installed in the cluster. For installation instructions, refer to the Quick Start documentation.

• Download offline images: Download all images used by the components to be installed to the local machine and import them into the cluster container runtime. For details, see Table 3.

• Prepare driver firmware zip package and MindIO component zip package:

  • Download driver firmware zip package: Go to the npu-driver-installer repository, check the downloader/NPU/25.3.RC1/config.json file, and click the corresponding link to download the driver firmware zip package according to the node's NPU model and OS architecture. 910C model NPU supports offline driver firmware installation; you need to download it yourself from Ascend Community - Firmware and Driver Downloads. Driver firmware zip packages for other models can also be downloaded from the above link.
  • Download MindIO component zip package: Go to the npu-node-provision repository, check the downloader/software/6.0.0/config.json file, and click the corresponding link to download the SDK zip package according to the node's NPU model and OS architecture.

• Place the driver firmware zip file on the path of the nodes requiring offline installation: /tmp/driver_pkg/. This path can be customized; for the modification method, refer to the driver.env field in Table 4.

• Place the MindIO component zip package on the path of the nodes requiring offline installation: /opt/openFuyao/mindio/

• Check whether the following tools are present on the nodes to be installed:

  • If using yum as the package manager, the required pkgs are: "jq wget unzip which initscripts coreutils findutils gawk e2fsprogs util-linux net-tools pciutils gcc make automake autoconf libtool git patch kernel-devel-(uname -r) dkms"
    Use the following command for detection.

    bash

    pkgs=(jq wget unzip which initscripts coreutils findutils gawk e2fsprogs util-linux net-tools pciutils gcc make automake autoconf libtool git patch kernel-devel-$(uname -r) kernel-headers-$(uname -r) dkms); rpm -q "${pkgs[@]}" >/dev/null || rpm -q "${pkgs[@]}" | grep "is not installed"

  • If using apt-get as the package manager, the required pkgs are: "jq wget unzip debianutils coreutils findutils gawk e2fsprogs util-linux net-tools pciutils gcc make automake autoconf libtool git patch dkms linux-headers-$(uname -r)"
    Use the following command for detection.

    bash

    pkgs=(jq wget unzip debianutils coreutils findutils gawk e2fsprogs util-linux net-tools pciutils gcc make automake autoconf libtool git patch dkms linux-headers-$(uname -r)); dpkg-query -W -f='${Package}\t${Status}\n' "${pkgs[@]}" 2>&1 | grep -Ev "install ok installed"

  • If using dnf as the package manager, the required pkgs are: "jq wget unzip which initscripts coreutils findutils gawk e2fsprogs util-linux net-tools pciutils gcc make automake autoconf libtool git patch kernel-devel-(uname -r) dkms"
    Use the following command for detection.

    bash

    pkgs=(jq wget unzip which initscripts coreutils findutils gawk e2fsprogs util-linux net-tools pciutils gcc make automake autoconf libtool git patch kernel-devel-$(uname -r) kernel-headers-$(uname -r) dkms); rpm -q "${pkgs[@]}" >/dev/null || rpm -q "${pkgs[@]}" | grep "is not installed"

Table 3 Component Image List

Note:
The acl-client-update related images in the Helm chart use the 910B model by default. If you are using another NPU model, specify the corresponding image name with --set or modify the corresponding field in the YAML file:

NPU model	value of images.draVCANNRTInstaller.repository	value of images.vnpuClientUpdate.repository
910B	cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-910b（default）	cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-910b
310P	cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-310p	cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-310p
910C	cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-910c	cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-910c

For example, when deploying the component on 310P NPU:

shell

helm install npu-operator oci://cr.openfuyao.cn/charts/npu-operator --version 0.0.0-latest --set images.draVCANNRTInstaller.repository=cr.openfuyao.cn/openfuyao/vnpu/acl-client-update-310p

Installation Steps ​

Please refer to Installation Steps.

Standalone Deployment ​

Online Installation ​

Prerequisites ​

• The current computer has kubectl and Helm CLI, or the cluster has a configurable application store or repository.

• Please confirm that the environment contains the bash tool; otherwise, the driver firmware installation script parsing may fail.

• The operating system version of all worker nodes or node groups running NPU workloads in the Kubernetes cluster must satisfy openEuler 22.03 LTS or Ubuntu 22.04 (ARM architecture).

• For worker nodes or node groups that only run CPU workloads, the nodes can run any operating system, as NPU Operator will not perform any configuration or management on nodes without NPU workloads.

• The components installed by the current NPU Operator require the runtime environment to satisfy NPU chip models 910B and 310P. For specific OS and hardware compatibility, please refer to the MindCluster documentation.

Binary Installation ​

1. Add the openFuyao Helm repository.

   shell

   helm repo add openfuyao https://helm.openfuyao.cn && helm repo update

2. Pull the project package.

   bash

   helm pull oci://cr.openfuyao.cn/charts/npu-operator --version xxx

   Where xxx needs to be replaced with the specific project installation package version, such as 0.0.0-latest. The obtained installation package is in compressed package form.

3. Install NPU Operator.

   Install the Operator with default configuration:

   shell

   helm install --wait --generate-name \
   -n default --create-namespace \
   npu-operator-xxx.tgz

   If you need to modify installation parameters, see Common Customization Options for details.

   Note:


   • After installing NPU Operator, node labels related to NPU resources will be applied based on different node environments. These labels are related to cluster scheduling components. The accelerate-type label requires the node's hardware server to fully match the NPU card; for specific matching relationships, refer to the MindCluster documentation Creating Node Labels.
   • For A800I A2 inference servers, automatic addition of the server-usage=infer label is not yet supported. Users need to manually add it using the following command.

   bash

   kubectl label nodes <node-name> server-usage=infer

Source Code Installation ​

1. Pull the project from the npu-operator repository.

   bash

   git clone -b xxx https://gitcode.com/openfuyao/npu-operator.git

   Where xxx refers to the branch of the code.

2. Install and deploy.

   Taking namespace default and release name npu-operator as an example, execute the following command in the same directory as npu-operator.

   bash

   cd npu-operator/charts/npu-operator
   helm install -n default npu-operator .

   If you need to modify installation parameters, see Common Customization Options for details.

Common Customization Options ​

When using Helm Chart, the following options can be modified. These options are used during Helm installation via --set or --set-json (used when modifying component environment variables, volumes, and other list structures). Due to the large number of configuration items, it is recommended to directly modify the corresponding fields in the values.yaml in the chart package.

Table 4 lists the most commonly used fields. For other fields, see the charts/npu-operator/values.yaml file in the npu-operator repository.

Table 4 Common Options

Offline Installation ​

Prerequisites ​

Please refer to openFuyao Platform Deployment - Offline Installation - Prerequisites to prepare driver firmware zip packages, offline images, and related tools. When using binary or source code installation, there is no need to install the openFuyao platform.

Installation Steps ​

For installation steps, refer to Binary Installation and Source Code Installation sections. For common customization options, see Table 4.

vNPU and DRA Scenario Configuration ​

NPU Operator now supports unified management of vNPU and DRA-related components. Users can complete component installation, upgrade, uninstallation, and parameter adjustment through Helm values or by directly modifying the NPUClusterPolicy CR.

Note:
vNPU, DRA, and MindCluster Device Plugin all manage the NPU device allocation pipeline. If these components are scheduled to the same node, device allocation conflicts may occur. NPU Operator detects whether nodeSelector of key DaemonSets overlaps during Reconcile, and upon detecting a conflict, sets NPUClusterPolicy to not-ready and prevents conflicting components from continuing to deploy. When enabling multiple capabilities simultaneously in the same cluster, please schedule different capabilities to different nodes via nodeSelector.

Applicable scenarios for vNPU and DRA are shown in Table 5.

Table 5 vNPU and DRA Applicable Scenarios

Note:
vNPU and DRA can coexist in the same cluster but cannot jointly manage NPU devices on the same node. When coexisting, mutually exclusive labels must be configured for different nodes, and vnpu.nodeSelector, dra.nodeSelector, or devicePlugin.nodeSelector must be set separately for isolation.

vNPU Scenario ​

The vNPU scenario is applicable to managing virtual NPU resources through vNPU Device Plugin and vNPU-compatible Volcano scheduler. When enabling this scenario, set volcano.flavor to vnpu and enable vnpu.enabled. If MindCluster device plugin is not needed, simultaneously disable devicePlugin.enabled to avoid running two sets of device plugins on the same node.

Example values.yaml:

volcano:
  flavor: vnpu

devicePlugin:
  enabled: false

vnpu:
  enabled: true
  nodeSelector:
    huawei.com/vnpu: ready
  clientUpdate:
    enabled: true
  devicePlugin:
    enabled: true
    deviceSplitCount: 20
    loggingConsole: true
  exporter:
    enabled: true
    port: 8082
    https: false

Update configuration using Helm.

helm upgrade npu charts/npu-operator -f vnpu-values.yaml

Note:
The charts/npu-operator in the above command is a local Chart path example. If using an OCI repository for installation, replace it with the corresponding Chart reference.

After installation, check vNPU components and node extended resources.

kubectl get pod -n xpu
kubectl get daemonset -n xpu
kubectl get node -o json | jq '.items[].status.allocatable | with_entries(select(.key | test("huawei.com/vnpu")))'

Note:
The above commands depend on the jq tool. If jq is not pre-installed in the runtime environment, please install it through the OS package manager first.

Business Pods can request vNPU through the following extended resources.

apiVersion: v1
kind: Pod
metadata:
  name: vnpu-demo
spec:
  schedulerName: volcano
  nodeSelector:
    huawei.com/vnpu: ready
  containers:
  - name: app
    image: docker.io/library/ubuntu:22.04
    command: ["/bin/bash", "-c"]
    args: ["sleep 3600"]
    resources:
      limits:
        huawei.com/vnpu-number: 1
        huawei.com/vnpu-cores: 5
        huawei.com/vnpu-memory.1Gi: 8
      requests:
        huawei.com/vnpu-number: 1
        huawei.com/vnpu-cores: 5
        huawei.com/vnpu-memory.1Gi: 8

vNPU resource types are shown in Table 6.

Table 6 vNPU Resource Types

Note:
volcano.flavor is used to select the type of Volcano resources managed by the Operator. MindCluster-compatible Volcano and vNPU-compatible Volcano may have different image versions and CRD scopes, and both use resource names such as volcano-scheduler and volcano-controllers in the volcano-system namespace, so they cannot be simultaneously deployed by NPU Operator in the same cluster. When set to vnpu, the Operator uses vNPU-compatible Volcano scheduler, controller, and admission resources; when set back to mindcluster, the Operator switches back to MindCluster-compatible Volcano resources. Switching volcano.flavor may interrupt currently scheduling tasks; it is recommended to execute when there are no running business Pods or when business rescheduling is acceptable.

DRA Scenario Prerequisites ​

Before using DRA whole-card, hard partitioning, or soft partitioning capabilities, please confirm the cluster meets the following conditions.

• Kubernetes version uses the openFuyao community recommended version v1.34.3, or a Kubernetes version that supports DRA capabilities.
• kube-apiserver, kube-scheduler, and kubelet have the DynamicResourceAllocation feature gate enabled.
• When using soft partitioning or hard partitioning capacity requests, kube-apiserver, kube-scheduler, and kubelet must have the DRAConsumableCapacity feature gate enabled; otherwise, capacity fields such as memCapacity, coreCapacity, aiCore, aiCPU may not take effect.
• containerd version 1.7.0 or above; dra.cdiRoot must be consistent with the directory where the node container runtime reads CDI files.
• Before using hard partitioning, the node must have ascend-docker-runtime installed and configured.
• Before using soft partitioning, deploy the vCANN-RT Installer via dra.softVNPU.vcannrtInstaller.enabled: true, or ensure the node has the vCANN-RT hijack library pre-installed, and synchronously modify the soft partitioning mount path in dra.softVNPU.profileConfig.

For more DRA capabilities, constraints, and usage examples, please refer to the npu-dra-plugin repository.

DRA resource request fields are shown in Table 7.

Table 7 DRA Resource Request Fields

DRA Whole-Card Scenario ​

The DRA whole-card scenario is applicable to requesting whole NPU cards using the Kubernetes Dynamic Resource Allocation mechanism. When enabling this scenario, DRA Scenario Prerequisites must be met, and DRA kubelet plugin and DeviceClass management must be enabled.

Example values.yaml:

devicePlugin:
  enabled: false

dra:
  enabled: true
  driverName: npu.huawei.com
  deviceProfile: npu
  cdiRoot: /var/run/cdi
  kubeletPlugin:
    enabled: true
  deviceClasses:
    enabled: true
  softVNPU:
    enabled: false
  webhook:
    enabled: false

After installation, check DRA components and DeviceClass.

kubectl get pod -A | grep npu-dra-kubeletplugin
kubectl get deviceclass
kubectl get resourceslice -o yaml

Create whole-card ResourceClaim and Pod.

apiVersion: resource.k8s.io/v1
kind: ResourceClaim
metadata:
  name: dra-full-claim
  namespace: default
spec:
  devices:
    requests:
    - name: npu
      exactly:
        deviceClassName: full.npu.huawei.com
        count: 1
---
apiVersion: v1
kind: Pod
metadata:
  name: dra-full-pod
  namespace: default
spec:
  resourceClaims:
  - name: npu
    resourceClaimName: dra-full-claim
  containers:
  - name: app
    image: docker.io/library/ubuntu:22.04
    command: ["/bin/bash", "-c"]
    args: ["env | grep -E 'DRA|NPU|ASCEND|VISIBLE' | sort; sleep 3600"]
    resources:
      claims:
      - name: npu

Check ResourceClaim allocation and Pod running status.

kubectl get resourceclaim dra-full-claim -o yaml
kubectl get pod dra-full-pod -o wide

DRA CEL Selector Scenario ​

Both DRA DeviceClass and ResourceClaim support filtering device attributes through CEL expressions. The following example uses full.npu.huawei.com and filters devices by numaNode in the ResourceClaim.

First, check the NUMA attributes in existing ResourceSlice.

kubectl get resourceslice -o yaml | grep -E 'numaNode|vnpuMode' -A3 -B3

Create a ResourceClaim and Pod that matches an existing NUMA node.

apiVersion: resource.k8s.io/v1
kind: ResourceClaim
metadata:
  name: dra-cel-hit-claim
  namespace: default
spec:
  devices:
    requests:
    - name: npu
      exactly:
        deviceClassName: full.npu.huawei.com
        count: 1
        selectors:
        - cel:
            expression: device.attributes["npu.huawei.com"].numaNode == 0
---
apiVersion: v1
kind: Pod
metadata:
  name: dra-cel-hit-pod
  namespace: default
spec:
  resourceClaims:
  - name: npu
    resourceClaimName: dra-cel-hit-claim
  containers:
  - name: app
    image: docker.io/library/ubuntu:22.04
    command: ["/bin/bash", "-c"]
    args: ["sleep 3600"]
    resources:
      claims:
      - name: npu

If the expression is changed to a non-existent NUMA node value, such as numaNode == 999, the ResourceClaim will not be able to complete allocation, and Pods referencing that ResourceClaim will remain Pending.

DRA Soft Partitioning Scenario ​

The DRA soft partitioning scenario is applicable to requesting soft partitioning NPU capabilities through ResourceClaim. When enabling this scenario, enable dra.softVNPU.enabled and configure profileConfig based on actual cluster node names, or configure runtime mode through node labels.

Execute the following command to check cluster node names; the worker-1 in subsequent examples must be replaced with the actual Kubernetes node name.

kubectl get nodes

Example values.yaml:

devicePlugin:
  enabled: false

dra:
  enabled: true
  driverName: npu.huawei.com
  deviceProfile: npu
  kubeletPlugin:
    enabled: true
  deviceClasses:
    enabled: true
  softVNPU:
    enabled: true
    shareCount: 16
    npuProfileConfigPath: /etc/dra/dra.config
    chipCapabilitiesConfigMap: vnpu-template-config
    profileConfig: |
      softShareMounts:
        - hostPath: /opt/xpu/bin/enpu-monitor
          containerPath: /opt/enpu/vcann-rt/tools/enpu-monitor
          options:
            - ro
            - rbind
        - hostPath: /opt/xpu/bin/systemd-detect-virt
          containerPath: /usr/bin/systemd-detect-virt
          options:
            - ro
            - rbind
      nodes:
        worker-1:
          - physicalId: 0
            vnpuMode: soft
            schedulingPolicy: elastic
    vcannrtInstaller:
      enabled: true

Alternatively, switch the node to soft partitioning mode via node labels.

kubectl label node worker-1 vnpu-mode=soft schedulingPolicy=elastic --overwrite
kubectl rollout restart daemonset npu-dra-kubeletplugin

Note:
The node runtime mode label recognized by the DRA plugin is vnpu-mode, which can be set to full, soft, or hard; soft partitioning scenarios can be used with schedulingPolicy=elastic, fixed-share, or best-effort. Node names in profileConfig must match the actual Kubernetes node names returned by kubectl get nodes. If the environment has the vCANN-RT hijack library pre-installed through other means, modify the hostPath in softShareMounts to the actual file path on the host, and keep containerPath unchanged.

Soft partitioning mount items are shown in Table 8.

Table 8 DRA Soft Partitioning Mount Items

Create soft partitioning ResourceClaimTemplate and Pod.

apiVersion: resource.k8s.io/v1
kind: ResourceClaimTemplate
metadata:
  name: npu-soft-vnpu
  namespace: default
spec:
  spec:
    devices:
      requests:
      - name: npu
        exactly:
          deviceClassName: elastic.npu.huawei.com
          capacity:
            requests:
              memCapacity: 4Gi
              # coreCapacity unit is percentage; 50 means requesting 50% AI Core computing quota.
              coreCapacity: 50
---
apiVersion: v1
kind: Pod
metadata:
  name: npu-soft-demo
  namespace: default
spec:
  resourceClaims:
  - name: npu
    resourceClaimTemplateName: npu-soft-vnpu
  containers:
  - name: app
    image: docker.io/library/ubuntu:22.04
    command: ["sleep", "3600"]
    resources:
      claims:
      - name: npu

Check ResourceClaim, ResourceSlice, and Pod status.

kubectl get resourceclaim -A
kubectl get resourceslice -o yaml | grep -E 'vnpuMode|schedulingPolicy|memCapacity|coreCapacity' -A3 -B3
kubectl get pod npu-soft-demo -o wide

Note:
Consumable capacity fields such as memCapacity, coreCapacity, aiCore, and aiCPU depend on the Kubernetes cluster enabling the DRAConsumableCapacity feature gate. If the API Server, Scheduler, or Kubelet does not enable this feature, the relevant capacity fields may be discarded, and soft partitioning or hard partitioning capacity requests will not take effect as expected.

DRA Hard Partitioning Scenario ​

The DRA hard partitioning scenario selects devices with vnpuMode=hard through the hard.npu.huawei.com DeviceClass. Hard partitioning mode must be configured for the node, and hard partitioning capacity must be requested in the ResourceClaim.

kubectl label node worker-1 vnpu-mode=hard --overwrite
# The "-" at the end of the command removes the schedulingPolicy label from the node.
kubectl label node worker-1 schedulingPolicy-
kubectl rollout restart daemonset npu-dra-kubeletplugin

ResourceClaim and Pod examples:

apiVersion: resource.k8s.io/v1
kind: ResourceClaim
metadata:
  name: dra-hard-claim
  namespace: default
spec:
  devices:
    requests:
    - name: npu
      exactly:
        deviceClassName: hard.npu.huawei.com
        count: 1
        capacity:
          requests:
            aiCore: 4
            aiCPU: 2
---
apiVersion: v1
kind: Pod
metadata:
  name: dra-hard-pod
  namespace: default
spec:
  runtimeClassName: ascend
  resourceClaims:
  - name: npu
    resourceClaimName: dra-hard-claim
  containers:
  - name: app
    image: docker.io/library/ubuntu:22.04
    command: ["/bin/bash", "-c"]
    args: ["sleep 3600"]
    securityContext:
      capabilities:
        add: ["SYS_ADMIN"]
    resources:
      claims:
      - name: npu

Custom DRA DeviceClass ​

When the default DeviceClass cannot meet filtering requirements, custom DeviceClass can be added through dra.deviceClasses.templates. The following example adds a DeviceClass named test-soft-share.

dra:
  enabled: true
  deviceClasses:
    enabled: true
    templates:
      - name: test-soft-share
        selectorCEL: |
          device.driver == "npu.huawei.com" &&
          device.attributes["npu.huawei.com"].vnpuMode == "soft" &&
          device.attributes["npu.huawei.com"].schedulingPolicy == "fixed-share"

After applying, check the DeviceClass.

kubectl get deviceclass test-soft-share -o yaml

If the template is removed from dra.deviceClasses.templates and the configuration is re-applied, the Operator automatically deletes the corresponding DeviceClass. Re-applying the configuration means re-executing helm upgrade ... -f values.yaml, or directly modifying the corresponding field in the NPUClusterPolicy CR. Note that DeviceClass deletion may affect new ResourceClaims that are referencing the DeviceClass.

Component Conflict Detection ​

NPU Operator detects whether the scheduling scope of key node components — MindCluster Device Plugin, vNPU Device Plugin, DRA Kubelet Plugin, vNPU Client Update, and DRA vCANN-RT Installer — overlaps. Detection rules are as follows.

• If two components' nodeSelector are statically mutually exclusive, they are considered non-conflicting.
• If neither component has a nodeSelector configured, both are considered to select all nodes, and a conflict is determined.
• If one component has no nodeSelector configured and the other does, a conflict is determined when there are nodes in the cluster matching that nodeSelector.
• If both components have nodeSelector configured and static mutual exclusivity cannot be determined, the Operator queries nodes to determine whether there are nodes satisfying both selectors simultaneously.

Component conflict detection examples are shown in Table 9.

Table 9 Component Conflict Detection Examples

When a conflict occurs, status and logs can be viewed with the following commands.

kubectl get npuclusterpolicy cluster -o yaml
kubectl logs deployment/npu-operator --tail=200 | grep -Ei 'conflict|overlapping'

When using multiple capabilities simultaneously in the same cluster, it is recommended to partition nodes with mutually exclusive labels. For example, use some nodes for vNPU and some for DRA.

kubectl label node worker-vnpu stack=vnpu --overwrite
kubectl label node worker-dra stack=dra --overwrite

Corresponding configuration:

vnpu:
  enabled: true
  nodeSelector:
    stack: vnpu

dra:
  enabled: true
  nodeSelector:
    stack: dra

If the conflict comes from version inconsistency between MindCluster-compatible Volcano and vNPU-compatible Volcano, you must first determine which set of Volcano resources the cluster will uniformly use; it is not recommended to keep two sets of Volcano simultaneously via node labels. Handle as follows.

• When vNPU scheduling capabilities are needed, set volcano.flavor to vnpu and switch to vNPU-compatible Volcano resources via helm upgrade within a maintenance window.
• When continuing to use MindCluster training scheduling capabilities is needed, keep volcano.flavor as mindcluster and disable vnpu.enabled or migrate vNPU business to avoid installing vNPU-compatible Volcano resources.
• When the cluster already has a validated external Volcano, set volcano.flavor to external and have the cluster administrator uniformly maintain the Volcano version; in this case, you need to confirm that the external Volcano is compatible with the CRDs, scheduling plugins, and webhook capabilities required by MindCluster or vNPU business.

Before switching, it is recommended to stop or migrate business Pods using the volcano scheduler, and confirm no new tasks are submitted before executing the upgrade. After switching, the actual Volcano image in effect can be confirmed with the following command.

kubectl get deployment -n volcano-system volcano-scheduler volcano-controllers -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.template.spec.containers[0].image}{"\n"}{end}'

vNPU and DRA Scenario Uninstallation ​

If you need to uninstall only vNPU or DRA-related components while retaining NPU Operator, modify values.yaml or NPUClusterPolicy CR to disable the corresponding management switches and re-apply the configuration. Example values.yaml:

volcano:
  flavor: mindcluster

vnpu:
  enabled: false

dra:
  enabled: false
  deviceClasses:
    enabled: false
  softVNPU:
    enabled: false

Update configuration using Helm.

helm upgrade npu charts/npu-operator -f disable-vnpu-dra-values.yaml

Note:
The charts/npu-operator in the above command is a local Chart path example. If using an OCI repository for installation, replace it with the corresponding Chart reference. Before uninstalling DRA-related components, please confirm that no business Pods continue to reference the corresponding DeviceClass, ResourceClaim, or ResourceClaimTemplate.

Upgrade ​

NPU Operator supports dynamic updates to existing resources. This feature enables NPU Operator to ensure that NPU Policy settings in the cluster are always up to date.

Since Helm does not support automatic upgrades of existing CRDs, you can manually upgrade NPU Operator Chart or enable Helm Hooks.

NPU Policy CR Update ​

NPU Operator supports dynamic updates to the npuclusterpolicy CustomResource using kubectl.

kubectl get npuclusterpolicy -A
# If the default npuclusterpolicy has not been modified, the default name of npuclusterpolicy is cluster.
kubectl edit npuclusterpolicy cluster

After editing, Kubernetes automatically applies the update to the cluster. All components managed by NPU Operator will also be updated to the expected state.

Installation Status Verification ​

View Component Status via CustomResource ​

View component status through the CustomResource npuclusterpolicies.npu.openfuyao.com. Specifically, confirm the current status of each component by checking the state field of each component in the status field. The following is an example of the driver installer running normally.

status:
  componentStatuses:
    - name: /var/lib/npu-operator/components/driver
      prevState:
        reason: Reconciling
        type: deploying
      state:
        reason: Reconciled
        type: running

• View CustomResource

$ kubectl get npuclusterpolicies.npu.openfuyao.com cluster -o yaml
apiVersion: npu.openfuyao.com/v1
kind: NPUClusterPolicy
metadata:
  annotations:
    meta.helm.sh/release-name: npu
    meta.helm.sh/release-namespace: default
  creationTimestamp: "2025-03-11T13:22:39Z"
  generation: 2
  labels:
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: npu-operator
  name: cluster
  resourceVersion: "2240086"
  uid: 0d1498c5-143a-4e05-a5dc-376d2e6c96ea
spec:
  clusterd:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/clusterd
      tag: v6.0.0
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/clusterd/clusterd.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
  daemonsets:
    imageSpec:
      imagePullPolicy: IfNotPresent
      imagePullSecrets: []
    labels:
      app.kubernetes.io/managed-by: npu-operator
      helm.sh/chart: npu-operator-0.0.0-latest
    tolerations:
    - effect: NoSchedule
      key: node-role.kubernetes.io/master
      operator: Equal
      value: ""
    - effect: NoSchedule
      key: node-role.kubernetes.io/control-plane
      operator: Equal
      value: ""
  devicePlugin:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/ascend-k8sdeviceplugin
      tag: v6.0.0
    initImageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: ""
      repository: hub.oepkgs.net/busybox:latest
      tag: ""
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/devicePlugin/devicePlugin.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
  driver:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/npu-driver-installer
      tag: latest
    initImageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: ""
      repository: cr.openfuyao.cn/openfuyao/npu-driver-installer:latest
      tag: ""
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/driver/driver.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
    version: 24.1.RC3
  exporter:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/npu-exporter
      tag: v6.0.0
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/npu-exporter/npu-exporter.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
  mindioacp:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/npu-node-provision
      tag: latest
    managed: false
    version: 6.0.0
  mindiotft:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/npu-node-provision
      tag: latest
    managed: false
  nodeD:
    heartbeatInterval: 5
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/noded
      tag: v6.0.0
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/noded/noded.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
    pollInterval: 60
  ociRuntime:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/npu-container-toolkit
      tag: latest
    initConfigImageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: ""
      repository: cr.openfuyao.cn/openfuyao/npu-container-toolkit:latest
      tag: ""
    initRuntimeImageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: ""
      repository: cr.openfuyao.cn/openfuyao/ascend-image/ascend-docker-runtime:latest
      tag: ""
    interval: 300
    managed: true
  operator:
    imageSpec:
      imagePullPolicy: IfNotPresent
      imagePullSecrets: []
    runtimeClass: ascend
  rscontroller:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/resilience-controller
      tag: v6.0.0
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/resilience-controller/run.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
  trainer:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/ascend-operator
      tag: v6.0.0
    initImageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: ""
      repository: hub.oepkgs.net/library/busybox:latest
      tag: ""
    logRotate:
      compress: false
      logFile: /var/log/mindx-dl/ascend-operator/ascend-operator.log
      logLevel: info
      maxAge: 7
      rotate: 30
    managed: true
  vccontroller:
    controllerResources:
      limits:
        cpu: 1000m
        memory: 1Gi
      requests:
        cpu: 1000m
        memory: 1Gi
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/vc-controller-manager
      tag: v1.9.0-v6.0.0
    managed: true
  vcscheduler:
    imageSpec:
      imagePullPolicy: Always
      imagePullSecrets: []
      registry: cr.openfuyao.cn
      repository: openfuyao/ascend-image/vc-scheduler
      tag: v1.9.0-v6.0.0
    managed: true
    schedulerResources:
      limits:
        cpu: 200m
        memory: 1Gi
      requests:
        cpu: 200m
        memory: 1Gi
status:
  componentStatuses:
  - name: /var/lib/npu-operator/components/driver
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/oci-runtime
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/device-plugin
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/trainer
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/noded
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/volcano/volcano-controller
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/volcano/volcano-scheduler
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/clusterd
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/resilience-controller
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/npu-exporter
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: Reconciled
      type: running
  - name: /var/lib/npu-operator/components/mindio/mindiotft
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: ComponentUnmanaged
      type: unmanaged
  - name: /var/lib/npu-operator/components/mindio/mindioacp
    prevState:
      reason: Reconciling
      type: deploying
    state:
      reason: ComponentUnmanaged
      type: unmanaged
  conditions:
  - lastTransitionTime: "2025-03-11T13:25:41Z"
    message: ""
    reason: Ready
    status: "False"
    type: Error
  - lastTransitionTime: "2025-03-11T13:25:41Z"
    message: all components have been successfully reconciled
    reason: Reconciled
    status: "True"
    type: Ready
  namespace: default
  phase: Ready

Manually Verify Component Installation Status and Running Results ​

• Driver installation status verification

  To verify driver firmware installation, use a command such as npu-smi info. If the output is similar to the following, the driver has been installed.

  shell


   +------------------------------------------------------------------------------------------------+
  | npu-smi 24.1.rc2                 Version: 24.1.rc2                                             |
  +---------------------------+---------------+----------------------------------------------------+
  | NPU   Name                | Health        | Power(W)    Temp(C)           Hugepages-Usage(page)|
  | Chip                      | Bus-Id        | AICore(%)   Memory-Usage(MB)  HBM-Usage(MB)        |
  +===========================+===============+====================================================+
  | 0     910B3               | OK            | 99.1        55                0    / 0             |
  | 0                         | 0000:C1:00.0  | 0           0    / 0          3162 / 65536         |
  +===========================+===============+====================================================+
  | 1     910B3               | OK            | 91.7        53                0    / 0             |
  | 0                         | 0000:C2:00.0  | 0           0    / 0          3162 / 65536         |
  +===========================+===============+====================================================+
  | 2     910B3               | OK            | 98.2        51                0    / 0             |
  | 0                         | 0000:81:00.0  | 0           0    / 0          3162 / 65536         |
  +===========================+===============+====================================================+
  | 3     910B3               | OK            | 93.2        49                0    / 0             |
  | 0                         | 0000:82:00.0  | 0           0    / 0          3162 / 65536         |
  +===========================+===============+====================================================+
  | 4     910B3               | OK            | 98.8        55                0    / 0             |
  | 0                         | 0000:01:00.0  | 0           0    / 0          3163 / 65536         |
  +===========================+===============+====================================================+
  | 5     910B3               | OK            | 96.2        56                0    / 0             |
  | 0                         | 0000:02:00.0  | 0           0    / 0          3163 / 65536         |
  +===========================+===============+====================================================+
  | 6     910B3               | OK            | 96.9        53                0    / 0             |
  | 0                         | 0000:41:00.0  | 0           0    / 0          3162 / 65536         |
  +===========================+===============+====================================================+
  | 7     910B3               | OK            | 97.6        55                0    / 0             |
  | 0                         | 0000:42:00.0  | 0           0    / 0          3163 / 65536         |
  +===========================+===============+====================================================+
  +---------------------------+---------------+----------------------------------------------------+
  | NPU     Chip              | Process id    | Process name             | Process memory(MB)      |
  +===========================+===============+====================================================+
  | No running processes found in NPU 0                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 1                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 2                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 3                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 4                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 5                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 6                                                            |
  +===========================+===============+====================================================+
  | No running processes found in NPU 7                                                            |
  +===========================+===============+====================================================+

• MindCluster component installation status verification

  Use kubectl get pod -A to check all Pods. If all are in Running state, the components have started successfully. For more detailed verification of each component's functional status, please refer to the MindCluster official documentation.

  bash


  NAMESPACE                NAME                                                      READY   STATUS    RESTARTS         AGE
  default                  ascend-runtime-containerd-7lg85                           1/1     Running   0                6m31s
  default                  npu-driver-c4744                                          1/1     Running   0                6m31s
  default                  npu-operator-77f56c9f6c-fhx8m                             1/1     Running   0                6m32s
  default                  npu-feature-discovery-zqgt9                               1/1     Running   0                7m12s
  default                  mindio-acp-43f64g63d2v                                    1/1     Running   0                7m21s
  default                  mindio-tft-2cc35gs3c2u                                    1/1     Running   0                6m32s
  kube-system              ascend-device-plugin-fm4h9                                1/1     Running   0                6m35s
  mindx-dl                 ascend-operator-manager-6ff7468bd9-47d7s                  1/1     Running   0                6m50s
  mindx-dl                 clusterd-5ffb8f6787-n5m82                                 1/1     Running   0                6m48s
  mindx-dl                 noded-kmv8d                                               1/1     Running   0                7m11s
  mindx-dl                 resilience-controller-6727f36c28-wjn3s                    1/1     Running   0                7m20s
  npu-exporter             npu-exporter-b6txl                                        1/1     Running   0                7m22s
  volcano-system           volcano-controllers-373749bg23c-mc9cq                     1/1     Running   0                7m31s
  volcano-system           volcano-scheduler-d585db88f-nkxch                         1/1     Running   0                7m40s

Note:

ascend-docker-runtime is installed as a plugin and registered with containerd. If you need to use this feature, specify the runtime as ascend docker runtime when starting containers, or specify runtimeClassName as ascend when creating Kubernetes resources. Example:

ctr run --runtime io.containerd.runc.v2 --runc-binary /var/lib/npu-container-toolkit/runtime/ascend-docker-runtime -t \

--env ASCEND_VISIBLE_DEVICES=0 ubuntu:22.04 <container_id>

Uninstallation ​

Execute the following steps to uninstall the Operator.

• Execute the following command to delete the Operator via Helm CLI or the application management interface.

  shell

  helm delete <npu-operator release name>

By default, Helm does not support deleting existing CRDs when deleting Charts.

kubectl get crd npuclusterpolicies.npu.openfuyao.com

• Execute the following command to manually delete the CRD.

kubectl delete crd npuclusterpolicies.npu.openfuyao.com

Note:
After uninstalling the Operator, the driver program may still exist on the host machine.

Component Installation and Uninstallation Instructions ​

Component Installation and Uninstallation Fields ​

• When installing NPU Operator for the first time, if the enabled field of the corresponding component in values.yaml is set to true, regardless of whether the component resource previously existed in the cluster, it will be replaced by the component resource managed by NPU Operator.

• If the component already exists in the cluster environment (e.g., volcano-controller) and the component's enabled field is set to false in values.yaml during the first installation of NPU Operator, the existing component resource in the cluster will not be deleted.

• After NPU Operator installation is complete, modifying the corresponding field of the CR instance can complete operations such as component image address, resource configuration, and lifecycle management.

MindIO Installation Dependencies ​

• If users need to install MindIO-related components, they must pre-install the Python environment (including the pip3 tool) in the node environment. The supported Python version is 3.7-3.11; otherwise, the installation cannot proceed normally. Users can mount the installed corresponding SDK into the training container for use.

• The installation path of the MindIO TFT (Training Fault Tolerance) component is /opt/sdk/tft, and we provide whl packages for different Python versions in /opt/tft-whl-package to meet users' customized needs. For usage, please refer to the "Fault Recovery Acceleration" section in the MindCluster documentation.

• The installation path of the MindIO ACP (Async Checkpoint Persistence) component is /opt/mindio and /opt/sdk/acp, and we provide whl packages for different Python versions in /opt/acp-whl-package for users to install according to their needs. For usage instructions, please refer to the "Checkpoint Saving and Loading Optimization" section in the MindCluster documentation.

• When uninstalling MindIO components, the SDK folders and other files related to MindIO components will be cleared, which may cause task containers using the service to malfunction. Please operate with caution.

Special Field Descriptions in Helm Chart values.yaml ​

• The driver.env field adds container environment variables for npu-driver-installer. The environment variable corresponding to "HOST_DRIVER_SOURCE_PATH" is the path where the zip package needs to be placed for offline driver firmware zip installation; the current default path is "/tmp/driver_pkg". The environment variable corresponding to "DRIVER_VERSION" is the version number of the driver firmware, with a default value of "25.3.RC1".
• The trainer.commandSpec field, taking the ascend-operator component as an example, the commandSpec field provides startup command configuration for component containers, which can be self-modified, such as setting log levels, log paths, component startup parameters, etc.; for details, please refer to the parameter descriptions of each component in the MindCluster documentation. Components such as ascend-device-plugin, npu-exporter, volcano, clusterd, and noded all contain this field, allowing configuration of different startup parameters.
• The trainer.resources field, taking the ascend-operator component as an example, the resources field provides resource request configuration for component containers. Unless there are special needs, use the default configuration, and dynamically adjust based on specific business and cluster resource conditions. Components such as ascend-device-plugin, npu-exporter, volcano, clusterd, and noded all contain this field.
