npu-dra-plugin ​

Feature Introduction ​

Traditional Device Plugin requests devices based on "countable" interfaces and cannot perceive device internal characteristics. DRA (Dynamic Resource Allocation) provides Kubernetes with a more flexible resource scheduling mechanism. npu-dra-plugin completes Ascend NPU device adaptation based on the native Kubernetes DRA architecture, supporting scheduling decisions based on device attributes, computing power specifications, and other metadata, enabling fine-grained heterogeneous computing resource scheduling.

Application Scenarios ​

• AI Large Model Inference/Training: Provides NPU computing power for AI frameworks such as vLLM and MindIE through whole-card allocation or soft partitioning, supporting efficient inference of large language models.
• Multi-tenant Computing Power Sharing: Shares a physical NPU to multiple business Pods by computing power quota through soft partitioning, improving resource utilization and reducing costs.
• Fine-grained Resource Scheduling: Filters devices through CEL expressions based on device attributes (NUMA affinity, chip model, etc.) to meet scheduling constraints in high-performance computing scenarios.
• Heterogeneous Chip Mixed Scheduling: Multiple NPU models such as 910B, 910C, and 310P coexist in the same cluster, managed uniformly through DeviceClass, matching the most suitable devices according to business requirements.

Capability Scope ​

• Supports device discovery and reporting for Ascend 910B, 910C, and 310P chips.
• Supports device filtering through DeviceClass/CEL.
• Supports resource requests using ResourceClaim/ResourceClaimTemplate, binding business Pod with ResourceSlice.
• Supports injecting devices into containers through CDI.
• Supports whole-card allocation (full): Allocates a complete NPU to a business Pod.
• Supports hard partitioning (hard): Partitions a whole card into multiple vNPU instances based on fixed templates, matching templates precisely by aiCore+aiCPU.
• Supports soft partitioning (soft): Implements software virtualization of NPU devices based on vCANN-RT runtime hijack library, flexibly sharing physical NPU by memCapacity+coreCapacity quota, supporting three scheduling strategies: elastic, fixed-share, and best-effort.
• Chip models supported by the three partitioning modes: 910B, 310P, 910C. Among them, 910C must be set to single-die mode (see Prerequisites).
• Supports configuring the partitioning mode (full/hard/soft) for each NPU card through ConfigMap, and also supports node-level default mode configuration through node labels.
• Supports one-click deployment through Helm Chart.

Highlight Features ​

• Supports three resource allocation modes: whole-card allocation, hard partitioning, and soft partitioning, covering the full range of scenarios from exclusive to shared.
• Implements card-level partitioning mode configuration through structured draConfig, allowing different cards on the same node to be configured with different modes.

Implementation Principle ​

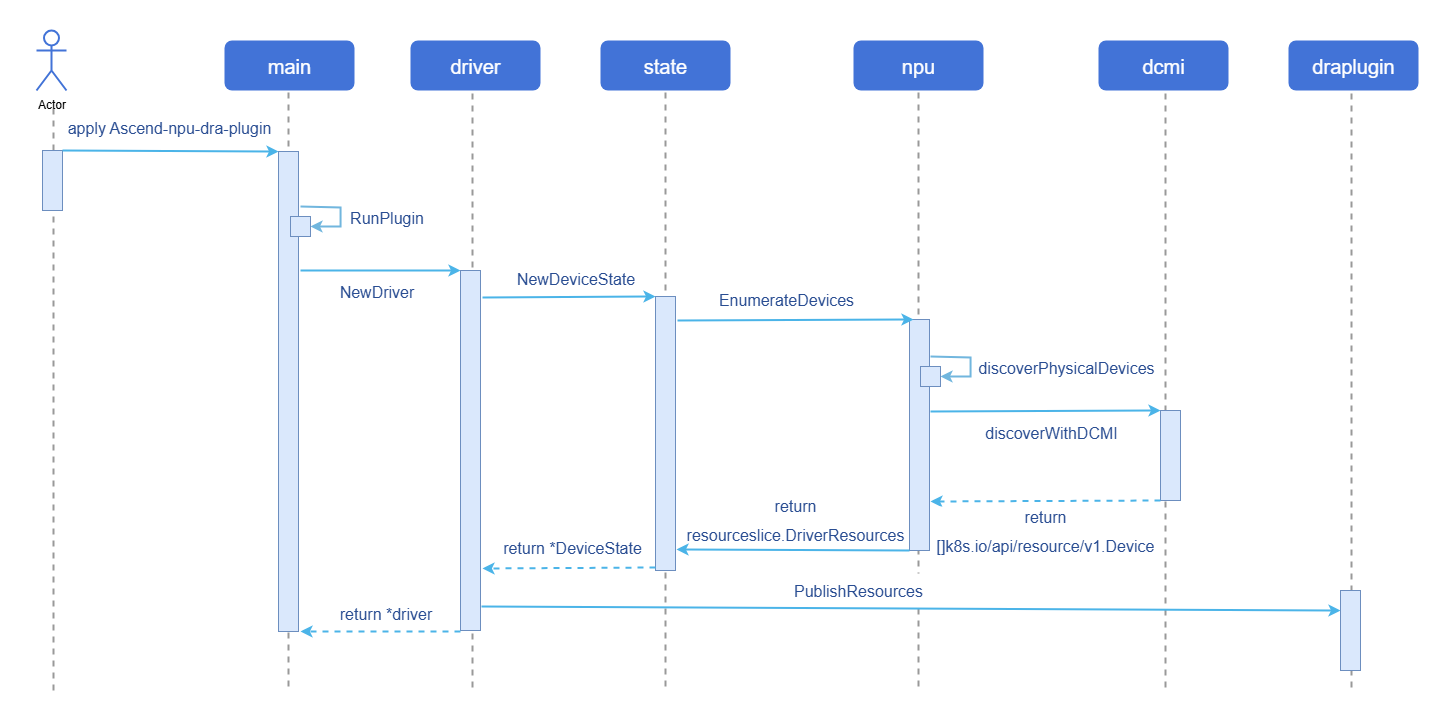

Figure 1 Device Discovery and Reporting Process Diagram

Core Components ​

npu-dra-plugin is deployed as a DaemonSet on each NPU node. Core components include:

• DRA Kubelet Plugin: The main DRA driver plugin, responsible for the entire process of device discovery, resource reporting, ResourceClaim allocation, CDI injection, etc. Discovers NPU devices through DCMI interface or sysfs, and reports device information as ResourceSlice.
• draConfig ConfigMap: Structured configuration that defines the partitioning mode (full/hard/soft) and scheduling strategy for each NPU card on each node, read at driver startup.
• vnpu-template-config ConfigMap: Hard partitioning chip template configuration that defines the vNPU templates (aiCore/aiCPU/memoryMi) supported by each chip model, precisely matched by the driver based on requested values.
• vCANN-RT Installer (optional): A prerequisite dependency for soft partitioning, deployed as a DaemonSet, installs the vCANN-RT hijack library to the host /opt/xpu/ directory, supports automatic repair.

Relationship with Related Features ​

• Depends on Ascend NPU device interfaces (DCMI/sysfs).
• Depends on the Kubernetes DRA feature (v1.34+, requires DynamicResourceAllocation and DRAConsumableCapacity feature gates to be enabled).

Installation ​

Prerequisites ​

• Kubernetes version: Use the openFuyao community recommended version v1.34.3, with DRA feature enabled (DynamicResourceAllocation=true) and DRAConsumableCapacity=true feature gate.

• Container runtime: containerd must use v1.7.0 or above; the openFuyao community default version v2.1.1 is recommended.

• NPU hardware and driver: Cluster nodes have Ascend NPU hardware installed and the corresponding version of the Ascend NPU driver deployed. The recommended driver version should be no lower than 25.5.x. For 910B driver installation, see: Ascend 910B Driver Installation Guide.

• ascend-docker-runtime: Hard partitioning depends on ascend-docker-runtime (used to create vNPU devices and mount them into containers). Before using hard partitioning, ensure that ascend-docker-runtime is installed and configured on the node. You can confirm this with which ascend-docker-runtime or ls /usr/local/Ascend/Ascend-Docker-Runtime/ascend-docker-runtime. If not installed, please refer to the Ascend official documentation to complete installation and configuration.

• Ascend 910C additional requirements (not required for 910B and 310P):

  The following configurations must be completed on 910C nodes before deployment. All operations must be manually executed before deploying the DRA plugin:

  1. Confirm driver version: Query via npu-smi info, the driver version must be 26.0.RC1 or above.

     bash

     npu-smi info
     # Check the Version field in the output, must be 26.0.RC1 or above

  2. Set single-die mode: 910C supports both single-die and dual-die working modes. The DRA plugin only supports single-die mode. You need to set it to single-die mode using the npu-smi tool.

     For specific operations, refer to the Ascend official documentation Setting Single-Die Mode.

  3. Enable configuration recovery (persistence): Ensure that the 910C partitioning mode configuration is not lost after node restart (inherits the pre-restart configuration after OS restart).

     bash

     # Enable persistent recovery for multi-die container policy (see [Setting the Persistent Recovery Status of Multi-Die Container Policy](https://support.huawei.com/enterprise/zh/doc/EDOC1100568418/eb901923))
     npu-smi set -t multi-die-policy-cfg-recover -d 1

     # Query the current persistent recovery status
     npu-smi info -t multi-die-policy-cfg-recover
     # Expected output: Multi die policy config recover mode : Enable

Usage Restrictions ​

Table 1 Partitioning Modes Supported by Each Chip

Note:

910C must be set to single-die mode. For specific configuration requirements, see Prerequisites. Although devices can be reported and allocated normally in 910C dual-die mode, the devices cannot be used properly within containers.

• When using the soft partitioning feature, the vCANN-RT hijack library must be installed first. It can be automatically installed via the vcannrtInstaller installer (installed to /opt/xpu/), or the actual path can be configured in the ConfigMap if the environment has it pre-installed.
• Hard partitioning Pods must be configured with runtimeClassName: ascend.
• Soft partitioning supports a maximum of 63 vNPU instances per physical NPU (controlled by the --share-count parameter, valid range 1-63).

Three Resource Allocation Modes ​

npu-dra-plugin supports three NPU resource allocation modes, specified through draConfig configuration or node labels:

Table 2 Resource Allocation Mode Description

Installing npu-dra-plugin ​

npu-dra-plugin provides a Helm Chart that supports one-click deployment of all components (Namespace, RBAC, ConfigMap, DaemonSet, DeviceClass, vCANN-RT installer).

Notice:

At driver startup, the ConfigMap or node labels are read to determine the partitioning mode for each card. If not configured, the default is full (whole-card mode), and hard partitioning and soft partitioning features will not take effect. It can be configured in either of the following two ways, with priority: ConfigMap card-level configuration > Node label > Default full. After modifying the configuration, the driver Pod must be restarted for the new configuration to take effect.

Operation Steps ​

1. Pull the Chart and configure values.yaml.

   1.1 Pull the Helm Chart and view the cluster node names.

   bash

   # Pull the Chart from the OCI repository
   helm pull oci://cr.openfuyao.cn/charts/npu-dra-driver --version 26.9.0
   tar xzf npu-dra-driver-*.tgz

   # View cluster node names (needed when configuring nodes later)
   kubectl get nodes

   1.2 Modify the configuration in values.yaml (image address, node NPU partitioning mode, etc.).

   bash

   vi npu-dra-driver/values.yaml

   Main configurable items of the Helm Chart:

   yaml

   # Image repository base configuration
   basic:
     swr_addr: "cr.openfuyao.cn/openfuyao"
     namespace: npu-dra-driver

   # NPU driver path configuration
   npu:
     driverHostPath: /usr/local/Ascend
     npuSmiHostPath: /usr/local/sbin/npu-smi

   # DRA Plugin configuration
   npuDraPlugin:
     shareCount: 16
     chipCapabilitiesConfigMap: vnpu-template-config
     draProfileConfigMap: dra-profile-config
     # Soft partitioning mount items (only needed when using soft partitioning)
     softShareMounts:
     - hostPath: /opt/xpu/bin/enpu-monitor
       containerPath: /opt/enpu/vcann-rt/tools/enpu-monitor
       options: [ro, rbind]
     - hostPath: /opt/xpu/bin/systemd-detect-virt
       containerPath: /usr/bin/systemd-detect-virt
       options: [ro, rbind]
     # Node NPU partitioning configuration, key is the K8s node name (obtained via kubectl get nodes)
     # Default is empty; configure as needed when using hard or soft partitioning
     # Takes effect directly on first deployment; after subsequent modifications, restart the driver Pod: kubectl delete pod -n npu-dra-driver -l app=npu-dra-plugin
     # nodes:
     #   <node-name>:
     #   - physicalId: 0          # NPU physical ID, can be viewed via the `npu-smi info -m` command
     #     vnpuMode: full
     #   - physicalId: 1
     #     vnpuMode: hard
     #   - physicalId: 2
     #     vnpuMode: soft
     #     schedulingPolicy: elastic

   # vCANN-RT hijack library installer configuration (only needed when using soft partitioning)
   vcannrtInstaller:
     enabled: true   # When set to false, the vCANN-RT installer is not deployed
     image:
       swr_addr: "cr.openfuyao.cn/openfuyao/vnpu"
       # Image name, must match the NPU hardware model. Take 910B as an example
       # Valid options: acl-client-update-910b, acl-client-update-910c, acl-client-update-310p
       name: acl-client-update-910b
       version: "26.9.0"

   # Chip template configuration (hard partitioning templates)
   chipCapabilities: |
     chips:
       - chipName: 310P3
         totalAiCore: 8
         totalAiCpu: 7
         totalMemoryMi: 21525
         templates:
           - { name: vir01, aiCore: 1, aiCpu: 1, memoryMi: 3072 }
           - { name: vir02, aiCore: 2, aiCpu: 2, memoryMi: 6144 }
           - { name: vir02_1c, aiCore: 2, aiCpu: 1, memoryMi: 6144 }
           - { name: vir04, aiCore: 4, aiCpu: 4, memoryMi: 12288 }
           - { name: vir04_3c, aiCore: 4, aiCpu: 3, memoryMi: 12288 }
       - chipName: 910B4
         totalAiCore: 20
         totalAiCpu: 6
         totalMemoryMi: 32768
         templates:
           - { name: vir05_1c_8g, aiCore: 5, aiCpu: 1, memoryMi: 8192 }
           - { name: vir10_3c_16g, aiCore: 10, aiCpu: 3, memoryMi: 16384 }
           - { name: vir10_4c_16g_m, aiCore: 10, aiCpu: 4, memoryMi: 16384 }
           - { name: vir10_3c_16g_nm, aiCore: 10, aiCpu: 3, memoryMi: 16384 }
       - chipName: Ascend910C
         totalAiCore: 20
         totalAiCpu: 6
         totalMemoryMi: 32768
         templates:
           - { name: vir05_1c_16g, aiCore: 5, aiCpu: 1, memoryMi: 16384 }
           - { name: vir10_3c_32g, aiCore: 10, aiCpu: 3, memoryMi: 32768 }

   # DeviceClass definition
   deviceClass:
     enabled: true

   Configuration Notes:

   • chipCapabilities configures the chip specifications and vNPU templates supported by hard partitioning. The driver precisely matches templates based on the requested aiCore+aiCPU. Templates may differ across chip models and driver versions. Please query via npu-smi info -t vnpu-template in the actual environment and use the actual values as the standard, modifying this configuration as needed. Table 4 below provides common template references.
   • Whether to install the vCANN-RT hijack library: Controlled by vcannrtInstaller.enabled. Only needs to be set to true when using soft partitioning (vnpuMode=soft).
   • If the environment has the hijack library pre-installed: Set vcannrtInstaller.enabled to false to skip installer deployment, and modify the hostPath in softShareMounts to the actual hijack library file path in the environment.
   • For detailed configuration of the vCANN-RT hijack library, see vCANN-RT Hijack Library Configuration.

2. (Optional) Configure the partitioning mode through node labels.

If you do not want to modify values.yaml or do not know the node names, you can leave nodes empty and label the nodes before deployment. The driver will read the node label as the default partitioning mode for all NPUs on that node.

Execute the following commands to view node names and apply labels:

# View node names
kubectl get nodes

# Label the node with partitioning mode (full/hard/soft)
kubectl label node <node-name> vnpu-mode=soft

# If using soft partitioning, also specify the scheduling policy (optional, default elastic)
kubectl label node <node-name> schedulingPolicy=elastic

Optional label values:

• vnpu-mode: full (default) / hard / soft
• schedulingPolicy: elastic (default) / fixed-share / best-effort (only effective when vnpu-mode=soft)

Note:

• Node labels are node-level configurations. All NPU cards on that node that are not configured in the ConfigMap will use this mode.
• If the same card is configured in both ConfigMap and node labels, ConfigMap takes precedence.
• After modifying labels or ConfigMap, the driver Pod must be restarted for the configuration to take effect:
  bash

  kubectl delete pod -n npu-dra-driver -l app=npu-dra-plugin

3. Deploy.

   Execute the following command to deploy npu-dra-plugin via Helm Chart:

   bash

   helm install npu-dra-driver oci://cr.openfuyao.cn/charts/npu-dra-driver --version 26.9.0 -f npu-dra-driver/values.yaml

4. Verify the deployment result.

   4.1 Check Pod status.

   bash

   kubectl get pods -n npu-dra-driver

   Expected result: Each NPU node has an npu-dra-plugin Pod with status Running. If the vCANN-RT installer is deployed, there will also be a vcannrt-installer Pod.

   4.2 Check whether ResourceSlice reports devices normally.

   bash

   kubectl get resourceslices

   Expected result: ResourceSlice starting with <node-name>-npu.huawei.com-.

   4.3 Check whether the device partitioning mode is correct.

   bash

   kubectl get resourceslices -o yaml | grep vnpuMode

   Expected result: The vnpuMode (full/hard/soft) of each device, consistent with the ConfigMap or label configuration.

   4.4 Check whether DeviceClass is created.

   bash

   kubectl get deviceclasses

   Expected result: Five DeviceClasses: full.npu.huawei.com, hard.npu.huawei.com, elastic.npu.huawei.com, fixed.npu.huawei.com, best-effort.npu.huawei.com.

vCANN-RT Hijack Library Configuration ​

The vCANN-RT hijack library is a prerequisite dependency for the soft partitioning feature. Whole-card allocation and hard partitioning do not require it. Users can choose one of the following two methods:

• Method A (recommended): Set vcannrtInstaller.enabled: true, and Helm automatically deploys the installer DaemonSet, installing vCANN-RT runtime files to the host /opt/xpu/ directory with continuous automatic repair. Keep the default paths in softShareMounts, no modification needed.

  The soft partitioning container mounts the following host files into the container through softShareMounts:

  Table 3 softShareMounts File Description

  hostPath (Host Path)	containerPath (Container Path)	Actual File Type	Description
  /opt/xpu/bin/enpu-monitor	/opt/enpu/vcann-rt/tools/enpu-monitor	Physical file	NPU monitoring tool, pre-installed by other components
  /opt/xpu/bin/systemd-detect-virt	/usr/bin/systemd-detect-virt	Physical file	Container detection script, installed by the installer

• Method B: If the environment has already installed the vCANN-RT hijack library through other means, set vcannrtInstaller.enabled to false to skip installer deployment, but must modify the hostPath in softShareMounts in values.yaml to point to the actual hijack library file path in the environment.

  For example, if the hijack library is installed in the /usr/local/enpu/ directory in the environment:

  yaml

  softShareMounts:
  - hostPath: /usr/local/enpu/bin/enpu-monitor             # Modify to actual path
    containerPath: /opt/enpu/vcann-rt/tools/enpu-monitor
    options: [ro, rbind]
  - hostPath: /usr/local/enpu/bin/systemd-detect-virt     # Modify to actual path
    containerPath: /usr/bin/systemd-detect-virt
    options: [ro, rbind]

Note:

• hostPath is the actual path of the hijack library file on the host, and containerPath is the path mounted into the business container (keep the default, do not modify).
• Ensure that all files listed in softShareMounts actually exist on the host; otherwise, the soft partitioning Pod will fail to start due to mount failure.
• You can check whether the hijack library files are complete on the host with the following command (replace the path with the actual installation path):
  bash

  ls -l /opt/xpu/bin/enpu-monitor /opt/xpu/bin/systemd-detect-virt

Using NPU Resources ​

Background Information ​

Through DRA technology, Kubernetes can manage the allocation and usage of Ascend NPU devices in a declarative manner. After a business Pod requests NPU resources through ResourceClaim, the driver automatically completes device discovery, reporting, allocation, and CDI injection, and ultimately the NPU device can be viewed and used within the container.

Using Whole-card Allocation ​

After configuring the NPU to vnpuMode: full, use the full.npu.huawei.com DeviceClass to request whole-card resources.

apiVersion: resource.k8s.io/v1
kind: ResourceClaimTemplate
metadata:
  name: npu-full
  namespace: default
spec:
  spec:
    devices:
      requests:
      - name: npu
        exactly:
          deviceClassName: full.npu.huawei.com
---
apiVersion: v1
kind: Pod
metadata:
  name: npu-full-demo
  namespace: default
spec:
  resourceClaims:
  - name: npu
    resourceClaimTemplateName: npu-full
  containers:
  - name: demo
    image: docker.io/library/ubuntu:22.04
    imagePullPolicy: IfNotPresent
    command: ["sleep", "infinity"]
    resources:
      claims:
      - name: npu
    env:
    - name: LD_LIBRARY_PATH
      value: "/usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64"
    volumeMounts:
    - name: ascend-driver
      mountPath: /usr/local/Ascend
      readOnly: true
    - name: npu-smi-command
      mountPath: /usr/local/bin/npu-smi
      readOnly: true
  volumes:
  - name: ascend-driver
    hostPath:
      path: /usr/local/Ascend
      type: Directory
  - name: npu-smi-command
    hostPath:
      path: /usr/local/bin/npu-smi
      type: File

Using Hard Partitioning ​

After configuring the NPU to vnpuMode: hard, use the hard.npu.huawei.com DeviceClass to precisely match vNPU templates through aiCore+aiCPU.

Notice:

• Hard partitioning Pods must be configured with runtimeClassName: ascend. Before using hard partitioning, ensure that ascend-docker-runtime is installed on the node. You can confirm this with which ascend-docker-runtime or ls /usr/local/Ascend/Ascend-Docker-Runtime/ascend-docker-runtime. If not installed, please refer to the Ascend official documentation to complete installation and configuration.

• Hard partitioning Pods must be configured with securityContext.capabilities.add: ["SYS_ADMIN"] permission. SYS_ADMIN is a high-risk Linux capability that grants the container significant system operation permissions. Please grant it only as needed in hard partitioning scenarios, and follow these security recommendations:

• Restrict this permission to hard partitioning business Pods only; do not grant it to non-hard-partitioning Pods.

• Combine with Pod Security Standards (Restricted level) and admission control policies to prevent abuse.

• Run container processes as a non-root user whenever possible to reduce privilege escalation risks.

apiVersion: resource.k8s.io/v1
kind: ResourceClaimTemplate
metadata:
  name: npu-hard-vnpu
  namespace: default
spec:
  spec:
    devices:
      requests:
      - name: npu
        exactly:
          deviceClassName: hard.npu.huawei.com
          capacity:
            requests:
              aiCore: 5
              aiCPU: 1
---
apiVersion: v1
kind: Pod
metadata:
  name: npu-hard-demo
  namespace: default
spec:
  runtimeClassName: ascend
  resourceClaims:
  - name: npu
    resourceClaimTemplateName: npu-hard-vnpu
  containers:
  - name: demo
    image: docker.io/library/ubuntu:22.04
    imagePullPolicy: IfNotPresent
    command: ["sleep", "infinity"]
    resources:
      claims:
      - name: npu
    env:
    - name: LD_LIBRARY_PATH
      value: "/usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64"
    volumeMounts:
    - name: ascend-driver
      mountPath: /usr/local/Ascend
      readOnly: true
    - name: npu-smi-command
      mountPath: /usr/local/bin/npu-smi
      readOnly: true
  volumes:
  - name: ascend-driver
    hostPath:
      path: /usr/local/Ascend
      type: Directory
  - name: npu-smi-command
    hostPath:
      path: /usr/local/bin/npu-smi
      type: File

The values of aiCore and aiCPU must match the templates defined in the vnpu-template-config ConfigMap:

Table 4 Hard Partitioning Template Mapping Table

Note:

• aiCore is required, aiCPU is optional. When aiCPU is not specified or is 0, the first template that satisfies the condition is matched by aiCore.
• In the example, aiCore=5, aiCPU=1 corresponds to the vir05_1c_8g template for 910B4; if using 310P3, you can set aiCore=1, aiCPU=1 (corresponding to vir01); if using 910C (single-die), you can set aiCore=5, aiCPU=1 (corresponding to vir05_1c_16g).
• 910C must be set to single-die mode (see Prerequisites).
• Hard partitioning requires ascend-docker-runtime to be installed; otherwise, vNPU devices cannot be created.

Using Soft Partitioning ​

After configuring the NPU to vnpuMode: soft, use the elastic.npu.huawei.com (or fixed.npu.huawei.com, best-effort.npu.huawei.com) DeviceClass to specify memory and computing power quotas through memCapacity+coreCapacity.

apiVersion: resource.k8s.io/v1
kind: ResourceClaimTemplate
metadata:
  name: npu-soft-vnpu
  namespace: default
spec:
  spec:
    devices:
      requests:
      - name: npu
        exactly:
          deviceClassName: elastic.npu.huawei.com
          capacity:
            requests:
              memCapacity: 4Gi
              coreCapacity: 50
---
apiVersion: v1
kind: Pod
metadata:
  name: npu-soft-demo
  namespace: default
spec:
  resourceClaims:
  - name: npu
    resourceClaimTemplateName: npu-soft-vnpu
  containers:
  - name: demo
    image: docker.io/library/ubuntu:22.04
    imagePullPolicy: IfNotPresent
    command: ["sleep", "infinity"]
    resources:
      claims:
      - name: npu
    env:
    - name: LD_LIBRARY_PATH
      value: "/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/ascend-toolkit/latest/aarch64-linux/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64"
    volumeMounts:
    - name: npu-libs-driver
      mountPath: /usr/local/Ascend/driver/lib64/driver
    - name: npu-libs-common
      mountPath: /usr/local/Ascend/driver/lib64/common
    - name: ascend-toolkit
      mountPath: /usr/local/Ascend/ascend-toolkit
      readOnly: true
    - name: npu-smi
      mountPath: /usr/local/sbin/npu-smi
  volumes:
  - name: npu-libs-driver
    hostPath: { path: /usr/local/Ascend/driver/lib64/driver, type: DirectoryOrCreate }
  - name: npu-libs-common
    hostPath: { path: /usr/local/Ascend/driver/lib64/common, type: DirectoryOrCreate }
  - name: ascend-toolkit
    hostPath: { path: /usr/local/Ascend/ascend-toolkit, type: Directory }
  - name: npu-smi
    hostPath: { path: /usr/local/sbin/npu-smi, type: File }

Note:

• memCapacity: HBM memory quota, supported range from 1Mi to the physical NPU total memory, step 1Mi.

• coreCapacity: AI Core computing quota, range 1-100 (percentage), step 1.

• Description of the three soft partitioning scheduling strategies:

  Table 5 Soft Partitioning Scheduling Strategy Comparison

  Strategy	DeviceClass	Typical Scenario	Resource Guarantee Level	Applicable Workload Type
  elastic	elastic.npu.huawei.com	Large load fluctuation, peak staggering	Shared idle computing power, no fixed guarantee	Inference services, online inference
  fixed-share	fixed.npu.huawei.com	Requires stable computing power guarantee, multi-tenant isolation	Fixed quota, no mutual influence	Training tasks, batch processing
  best-effort	best-effort.npu.huawei.com	Low priority, can be preempted	Best-effort allocation, no guarantee	Development and testing, offline analysis

Using CEL Expressions to Filter Devices ​

Both ResourceClaimTemplate and ResourceClaim can use CEL expressions for device filtering. The following example selects devices by NUMA affinity:

apiVersion: resource.k8s.io/v1
kind: ResourceClaim
metadata:
  name: npu-numa-claim
  namespace: default
spec:
  devices:
    requests:
    - name: npu
      exactly:
        deviceClassName: full.npu.huawei.com
        count: 1
        selectors:
        - cel:
            expression: |-
              device.attributes["npu.huawei.com"].numaNode == 1
---
apiVersion: v1
kind: Pod
metadata:
  name: npu-numa-demo
  namespace: default
spec:
  resourceClaims:
  - name: npu
    resourceClaimName: npu-numa-claim
  containers:
  - name: demo
    image: docker.io/library/ubuntu:22.04
    imagePullPolicy: IfNotPresent
    command: ["sleep", "infinity"]
    resources:
      claims:
      - name: npu
    env:
    - name: LD_LIBRARY_PATH
      value: "/usr/local/Ascend/driver/lib64:/usr/local/Ascend/driver/lib64/common:/usr/local/Ascend/driver/lib64/driver:/usr/local/Ascend/ascend-toolkit/latest/lib64:/usr/local/Ascend/ascend-toolkit/latest/runtime/lib64"
    volumeMounts:
    - name: ascend-driver
      mountPath: /usr/local/Ascend
      readOnly: true
    - name: npu-smi-command
      mountPath: /usr/local/bin/npu-smi
      readOnly: true
  volumes:
  - name: ascend-driver
    hostPath:
      path: /usr/local/Ascend
      type: Directory
  - name: npu-smi-command
    hostPath:
      path: /usr/local/bin/npu-smi
      type: File

Using Topology Attributes for Affinity Scheduling ​

npu-dra-plugin publishes PCIe and NPU topology attributes in ResourceSlice based on the actual interconnect relationships returned by npu-smi info -t topo on the node. Topology affinity scheduling can be used in conjunction with CEL device filtering: filter candidate devices that meet chip model, NUMA, and other conditions through selectors[].cel, then require that devices allocated to the same request have the same topology attribute value through constraints.matchAttribute.

The grouping process does not depend on the server or NPU model. HCCS (Huawei Cache Coherence System) is a hardware direct-connect link; HCCS_SW is a connection through an HCCS Switch (HCCS switching device). Both types of connections are counted in the HCCS ring, and the same connectivity group uses the same ID, with IDs numbered starting from 0.

The following example requests 8 whole-card NPUs located in the same HCCS ring:

apiVersion: resource.k8s.io/v1
kind: ResourceClaim
metadata:
  name: npu-same-hccs-ring
  namespace: default
spec:
  devices:
    requests:
    - name: npu
      exactly:
        deviceClassName: full.npu.huawei.com
        allocationMode: ExactCount
        count: 8
        selectors:
        - cel:
            expression: device.attributes["npu.huawei.com"].chipName == "910B4"
    constraints:
    - requests: ["npu"]
      matchAttribute: "npu.huawei.com/topoHccsRingID"

The following shows the configuration that needs to be added or replaced when a Pod references this ResourceClaim; the container image, command, NPU driver, and npu-smi mounts and other configurations remain consistent with the CEL example above:

spec:
  resourceClaims:
  - name: npu
    resourceClaimName: npu-same-hccs-ring
  containers:
  - name: demo
    # Image, command, environment variables, and mount configuration are consistent with the CEL example above.
    resources:
      claims:
      - name: npu

If you also require the 8 NPUs to be on the same NUMA node, you can add the following to the same constraints list:

- requests: ["npu"]
  matchAttribute: "npu.huawei.com/numaNode"

If you also require the NUMA node of the container's exclusively allocated CPU to match the NUMA node of the NPU card, you can add the following to the same constraints list:

- requests: ["cpu","npu"]
  matchAttribute: "resource.kubernetes.io/numaNode"

Note:

• When the corresponding HCCS or SIO interconnect does not exist in the hardware topology, the driver does not publish topoHccsRingID or topoSioID. Only after confirming that the corresponding attribute exists in the ResourceSlice can this attribute be used as a matchAttribute constraint.
• The old attribute busId is no longer published; please use resource.kubernetes.io/pciBusID. If an existing ResourceClaim's CEL selector references busId, after upgrading to a driver that no longer publishes this attribute, subsequent new allocations or re-allocations will not be able to match devices, and the Claim may remain Pending, preventing Pods referencing it from being scheduled. Already allocated Claims will not be automatically converted to the new attribute; before upgrading, new ResourceClaim or new ResourceClaimTemplate versions should be created based on resource.kubernetes.io/pciBusID, and business Pods should be switched to the new Claim.

Related Operations ​

Querying DRA-related CR Information ​

• Query all ResourceSlice. Execute the following command:

  bash

  kubectl get resourceslices

• Query detailed information of the corresponding ResourceSlice. Execute the following command:

  bash

  kubectl get resourceslices <resourceslice_name> -o yaml

  You can view all discovered device information, which can be used for device filtering with CEL expressions. An example is as follows.

  yaml

  apiVersion: resource.k8s.io/v1
  kind: ResourceSlice
  metadata:
    creationTimestamp: "2026-02-27T01:55:37Z"
    generateName: master-npu.huawei.com-
    generation: 1
    name: master-npu.huawei.com-9gv8l
    ownerReferences:
    - apiVersion: v1
      controller: true
      kind: Node
      name: master
      uid: 6ef76e72-da36-44e3-b9c3-93f44684a859
    resourceVersion: "2225369"
    uid: 0c1b399e-4fa8-4279-93f8-b92a1faeff6f
  spec:
    devices:
    - allowMultipleAllocations: true
      attributes:
        vnpuMode:
          string: soft
        schedulingPolicy:
          string: elastic
        physicalID:
          int: 0
        chipID:
          int: 0
        chipName:
          string: 910B4
        type:
          string: 910B
        numaNode:
          int: 6
        resource.kubernetes.io/pciBusID:
          string: "0000:81:00.0"
        resource.kubernetes.io/pcieRoot:
          string: pci0000:80
        resource.kubernetes.io/numaNode:
          int: 6
        topoHccsRingID:
          int: 0
        topoSioID:
          int: 0
        memoryTotal:
          int: 32768
        vdieID:
          string: 00000000-00000001-00000002-00000003-00000004
      capacity:
        coreCapacity:
          requestPolicy:
            default: "100"
            validRange:
              max: "100"
              min: "1"
              step: "1"
          value: "100"
        memCapacity:
          requestPolicy:
            default: 32Gi
            validRange:
              max: 32Gi
              min: 1Mi
              step: 1Mi
          value: 32Gi
        shareCount:
          requestPolicy:
            default: "1"
            validValues:
            - "1"
          value: "16"
      name: npu-0
    driver: npu.huawei.com
    nodeName: master
    pool:
      generation: 1
      name: master
      resourceSliceCount: 1

  Table 6 ResourceSlice Device Attribute Description

  Attribute	Description	Data Source
  vnpuMode	Device partitioning mode (full/hard/soft).	NPU partitioning configuration in draConfig.
  schedulingPolicy	Scheduling strategy (only has a value in soft mode: elastic/fixed-share/best-effort).	Scheduling strategy configuration in draConfig.
  physicalID	Physical NPU ID.	DCMI device discovery; falls back to npu-smi info when DCMI is unavailable.
  chipID	Chip ID.	DCMI device discovery; falls back to npu-smi info when DCMI is unavailable.
  chipName	Chip model (e.g., 910B4, 310P3, Ascend910C).	DCMI device discovery; falls back to npu-smi info when DCMI is unavailable.
  type	Chip series (e.g., 910B, 910C, 310P).	DCMI device discovery and PCI device information; falls back to npu-smi info when DCMI is unavailable.
  numaNode	NUMA node ID; not published when it cannot be obtained.	Read from node sysfs based on the NPU PCI bus address.
  resource.kubernetes.io/pciBusID	PCI bus address.	DCMI device discovery; falls back to npu-smi info when DCMI is unavailable.
  resource.kubernetes.io/pcieRoot	PCIe Root identifier.	Read from the PCIe hierarchy in node sysfs based on the NPU PCI bus address.
  resource.kubernetes.io/numaNode	NUMA node ID; not published when it cannot be obtained.	Read from node sysfs based on the NPU PCI bus address.
  topoHccsRingID	HCCS ring ID; both HCCS and HCCS_SW connections participate in grouping; not published when there is no HCCS interconnect.	npu-smi info -t topo output.
  topoSioID	SIO interconnect group ID; not published when there is no SIO interconnect.	npu-smi info -t topo output.
  memoryTotal	NPU total memory (Mi).	DCMI device discovery; falls back to npu-smi info when DCMI is unavailable.
  vdieID	Virtual die ID (chip unique identifier).	DCMI device discovery; generated by the plugin when not provided by the device.
  coreCapacity	AI Core computing quota (soft mode only, 1-100).	Soft partitioning capacity range defined by the plugin.
  memCapacity	HBM memory capacity (soft mode only).	Physical NPU memory capacity, converted by the plugin to soft partitioning capacity.
  shareCount	Maximum number of shared instances (soft mode only).	Plugin SHARE_COUNT configuration.

• Query all DeviceClass. Execute the following command:

  bash

  kubectl get deviceclasses

• Query all ResourceClaim. Execute the following command:

  bash

  kubectl get resourceclaims -n <namespace>

FAQ ​

What to do if a Pod remains Pending with status cannot allocate all claims? ​

1. Check whether the partitioning mode of devices in ResourceSlice is correct:

   bash

   kubectl get resourceslices -o yaml | grep vnpuMode

2. Check whether the ResourceClaim status is allocated:

   bash

   kubectl get resourceclaims -n <namespace>

3. If the Claim is pending, it may be due to insufficient capacity. Check whether the allocated capacity exceeds the physical limit:

   • Soft partitioning: The sum of memCapacity across multiple Pods cannot exceed the NPU total memory, and the sum of coreCapacity cannot exceed 100.
   • Hard partitioning: The sum of aiCore across multiple Pods cannot exceed the chip's total AiCore count.

What to do if hard partitioning Pod creation fails with no hard vNPU template matches? ​

1. Check whether the aiCore and aiCPU values match the templates defined in the vnpu-template-config ConfigMap. You can view the available templates via kubectl get cm vnpu-template-config -n npu-dra-driver -o jsonpath='{.data.capabilities\.yaml}'.

2. Confirm that ascend-docker-runtime is installed. Hard partitioning depends on it to create vNPU devices:

   bash

   which ascend-docker-runtime
   # or
   ls /usr/local/Ascend/Ascend-Docker-Runtime/ascend-docker-runtime

3. Confirm that the Pod is configured with runtimeClassName: ascend.

What to do if soft partitioning Pod fails to start with libboundscheck.so: no such file or directory? ​

1. Check whether the hijack library file corresponding to hostPath in softShareMounts actually exists on the host (default path is /opt/xpu/; if using Method B with a custom path, replace with the actual path):

   bash

   ls -l /opt/xpu/lib/libboundscheck.so /opt/xpu/bin/npu-monitor

2. If the file does not exist, deploy the vCANN-RT hijack library installer (see the vcannrtInstaller.enabled configuration in Installation), or manually add the missing files.

What to do if K8s 1.34 multi-mode coexistence scheduling fails? ​

K8s 1.34 has a known scheduler bug (PR #133706). When multiple partitioning modes are configured on the same node (e.g., npu-0=soft, npu-1=hard), it may cause Pod scheduling failures. Workarounds:

• Configure the NPU with physicalID=0 to the same partitioning mode as the business Pod.
• Or upgrade kube-scheduler to a version that includes the PR #133706 fix.
