AI Inference InferNex Bridge ​

Feature Introduction ​

InferNex Bridge is the core hub between InferNex and KServe, connecting the two deployment entry points via Validating/Mutating Webhook and the InferNexService CRD, supporting a dual-mode deployment strategy: it can seamlessly integrate into existing KServe ecosystems or run independently without KServe.

• Mode 1 (LLMInferenceService deployment entry): Set infernex.io/runtime: "true" on LLMInferenceService to connect to the InferNex chain; the inference engine and Hermes Router are orchestrated by KServe, while Bridge manages Mooncake KVCache, cache-indexer, PD-Orchestrator, Eagle-Eye, and other enhancement components, as well as LLMInferenceServiceConfig runtime compatibility.

• Mode 2 (InferNexService deployment entry): Without going through KServe, the inference engine, Hermes Router, and enhancement components are uniformly deployed by Bridge via InferNexService/InferNexServiceConfig.

Teams with existing KServe environments can continue using the LLMInferenceService workflow to obtain full InferNex acceleration capabilities; scenarios without KServe or requiring an independent control plane can also obtain the same full-stack inference acceleration capabilities (intelligent routing, Mooncake KVCache, elastic scaling, hardware observability, etc.) as AI Inference Integrated Deployment.

Note:
Unlike the AI Inference Integrated Deployment one-click full-stack installation entry via the InferNex main Chart, this document describes the standalone installation method for InferNex Bridge, with the focus on deploying via KServe + LLMInferenceService. For architecture and responsibility boundaries, see OFEP-0040 and InferNex-Bridge Technical Specification.

Application Scenarios ​

• The cluster has KServe installed, with supported versions from v0.17.0 to v0.19.0, and you want to deploy full InferNex capabilities via LLMInferenceService + infernex.io/runtime: "true".
• You need InferNex Bridge to automatically handle compatibility issues between KServe built-in Config and the InferNex runtime.
• You want to deploy InferNex inference capabilities via InferNex Bridge without using the InferNex main Chart one-click full-stack installation (either the KServe + LLMInferenceService deployment entry or the InferNexService deployment entry).

Capability Scope ​

• InferNex Bridge itself provides the control plane: standalone Helm Chart installation; deploys CRDs, RBAC, Webhooks, and default InferNexServiceConfig templates.

• Dual deployment entries: supports both KServe + LLMInferenceService and InferNexService paths.

• Instances deployed via InferNex Bridge have exactly the same inference acceleration capabilities (intelligent routing, Mooncake KVCache, scaling decisions, hardware observability, etc.) as AI Inference Integrated Deployment — Capability Scope. The differences lie only in the deployment entry and orchestration logic, not in the addition or reduction of capabilities.

Highlight Features ​

• KServe compatibility: continues using the LLMInferenceService workflow, entering the InferNex chain via labels.
• Dual deployment entries: KServe + LLMInferenceService deployment entry and InferNexService deployment entry coexist.

Implementation Principle ​

InferNex Bridge constitutes the KServe adaptation layer with Mutating/Validating Webhook and the InferNexService CRD: users still use LLMInferenceService as the entry point, supplementing InferNex enhancement components without modifying the KServe CRD; it also supports submitting InferNexService directly without KServe, deployed uniformly by Bridge. The Mutating Webhook triggers when a LLMInferenceService with infernex.io/runtime: "true" is created or updated, applying compatibility patches to 6 preset LLMInferenceServiceConfig in the kserve namespace (without modifying the LLMInferenceService object itself); the Validating Webhook performs admission validation on directly submitted InferNexService (in the KServe chain, InferNexService with sourceRef skips validation). InferNexService is associated with LLMInferenceService via sourceRef for read-only observation and does not merge llmisvc.spec to re-launch the inference engine or Router.

Logical View ​

The KServe LLMInferenceService controller manages the inference engine, Hermes Router, and Gateway/HTTPRoute/InferencePool. InferNex Bridge manages supplementary components such as proxy-server (P/D mode), Mooncake KVCache, Cache-Indexer, PD-Orchestrator, and Eagle-Eye. In P/D mode, traffic is split by proxy-server to prefill/decode.

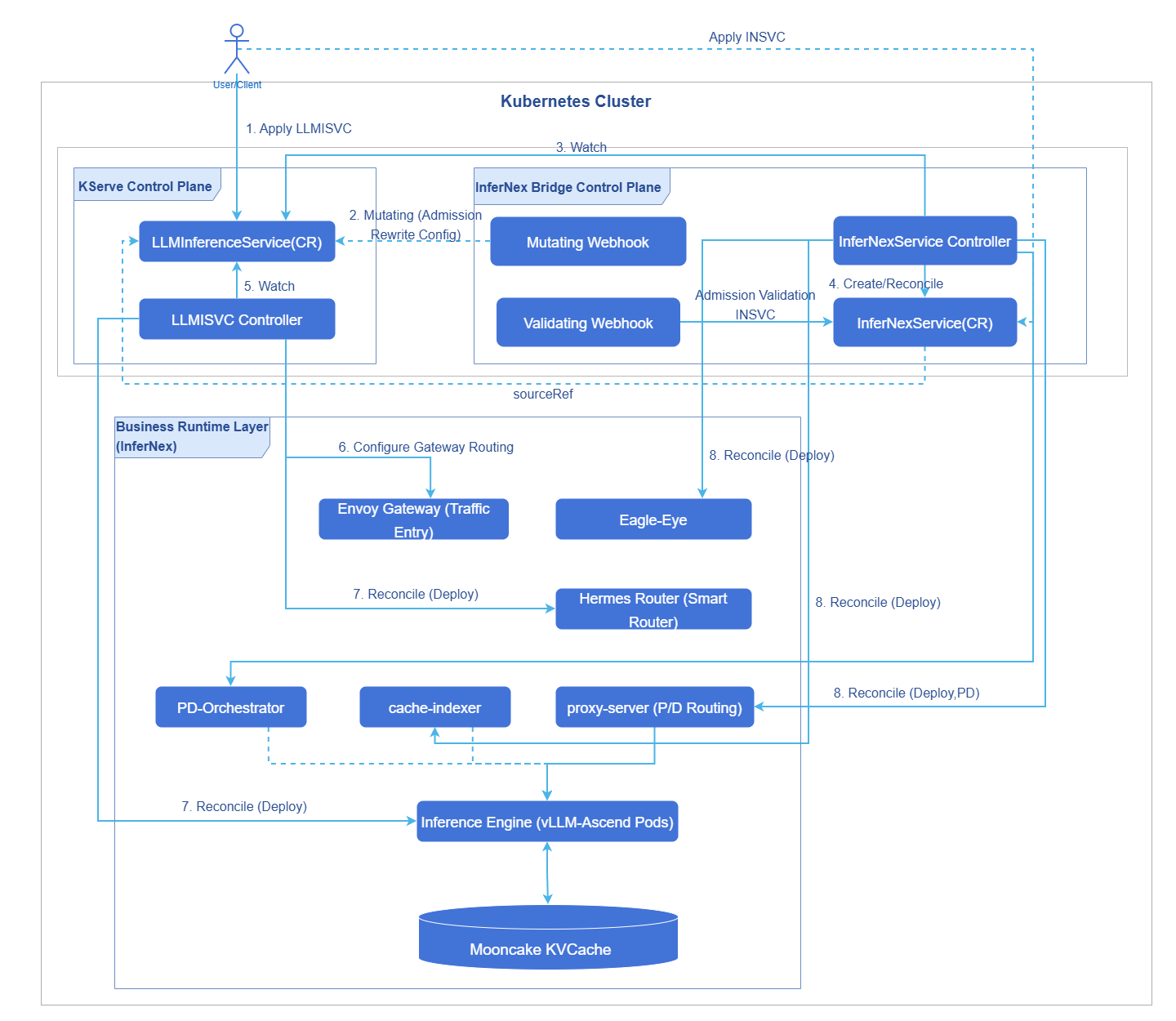

Figure 1 InferNex Bridge Logical View

Deployment View ​

KServe and InferNex Bridge are deployed as independent Helm Charts; the InferNex Bridge Pod integrates Mutating/Validating Webhook and the InferNexService controller: MutatingWebhookConfiguration applies compatibility patches to 6 preset LLMInferenceServiceConfig in the kserve namespace; ValidatingWebhookConfiguration performs admission validation on submitted InferNexService (in the KServe chain, auto-created InferNexService with sourceRef skips validation).

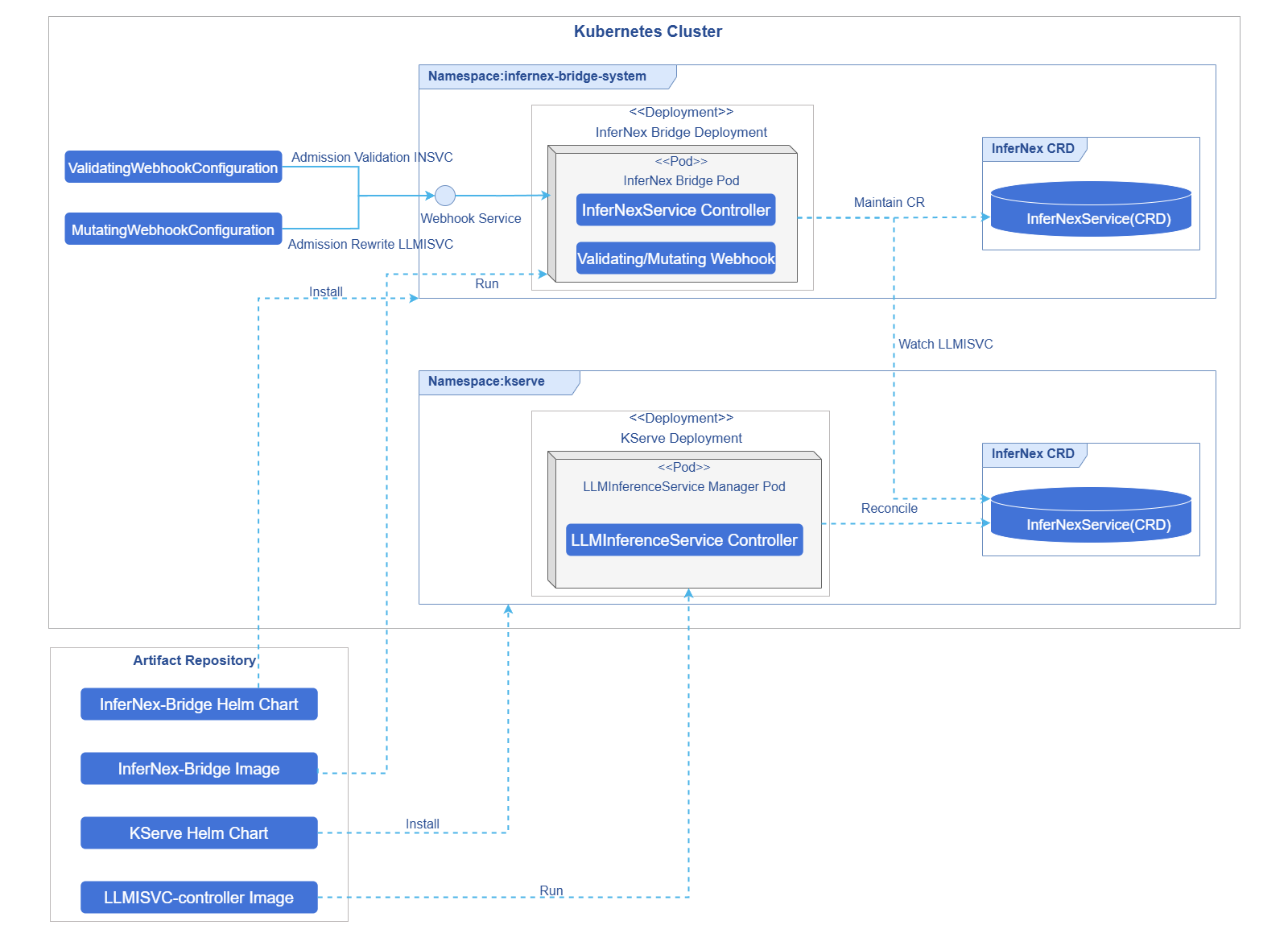

Figure 2 InferNex Bridge Deployment View

Runtime View ​

KServe + LLMInferenceService deployment entry: after the user submits a LLMInferenceService with infernex.io/runtime: "true", the Mutating Webhook first triggers compatibility patches on 6 preset LLMInferenceServiceConfig in the kserve namespace, then KServe and InferNex Bridge deploy their respective workloads in parallel. InferNexService deployment entry: when the user directly submits an InferNexService, it first goes through Validating Webhook admission validation.

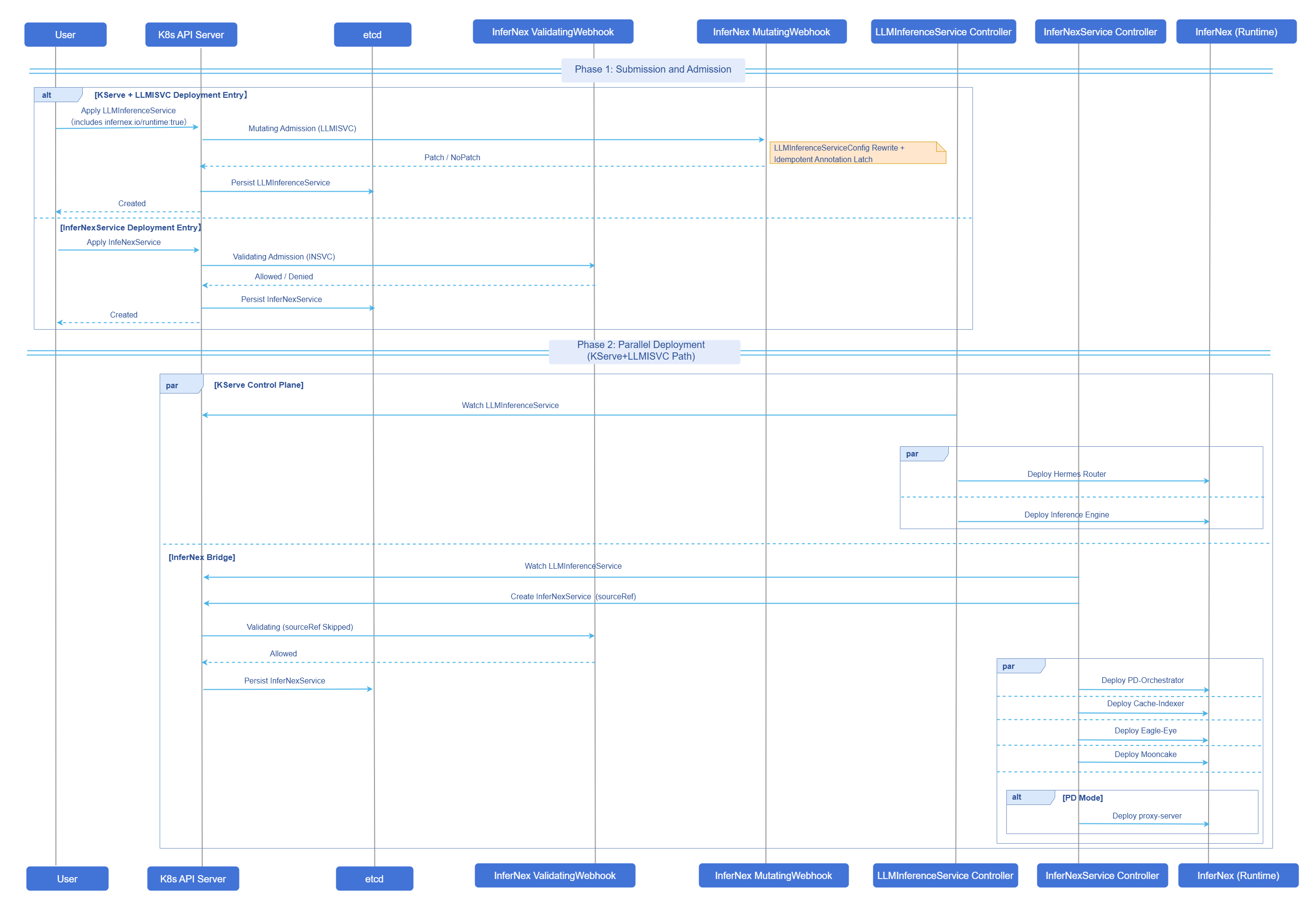

Figure 3 InferNex Bridge Runtime View

Relationship with Related Features ​

AI Inference Integrated Deployment installs the full InferNex stack (control plane and inference instances) in one click via the InferNex main Chart; this document describes the standalone installation method for InferNex Bridge, with the deployment entry being the InferNex Bridge Chart, covering both the KServe + LLMInferenceService deployment entry and the InferNexService deployment entry, different from the main Chart full-stack entry.

Installation ​

Prerequisites ​

InferNex Bridge Control Plane ​

• An available Kubernetes cluster with kubectl and Helm (v3 or above) installed.
• KServe: KServe installation version is v0.17.0 to v0.19.0; for installation prerequisites, see KServe LLMISVC Prerequisites.
• API versions: LLMInferenceService/LLMInferenceServiceConfig supports both serving.kserve.io/v1alpha1 and serving.kserve.io/v1alpha2; serving.kserve.io/v1alpha2 is recommended. InferNexService/InferNexServiceConfig is infernex.infernex.io/v1alpha1.
• Envoy Gateway and related CRDs such as Gateway API, Gateway API Inference Extension have been installed; when using the KServe + LLMInferenceService deployment method, Hermes Router routing and HTTPRoute for exposing inference services externally depend on these components.
• The cluster can access cr.openfuyao.cn and hub.oepkgs.net (or equivalent mirrors configured).
• It is recommended that the namespace infernex-bridge-system is in Active state; avoid installing multiple sets of InferNex Bridge Webhooks.

Note:
For image lists, version compatibility, deployment scenarios, and Webhook patch behavior on LLMInferenceServiceConfig, see Deployment Specification, Deployment Scenarios, Webhook Patch Description, and Appendix A Default Images. For Hermes Router container naming requirements, see Appendix — Hermes Router Container Naming Convention in this document.

Inference Cluster Environment (General) ​

Before deploying inference instances (vLLM-Ascend, Mooncake KVCache, PD disaggregation, etc.), see AI Inference Integrated Deployment for hardware, software, and network prerequisites.

• For InferNex installation prerequisites, see Prerequisites (including cluster version, NPU Operator, LWS, etc.).
• For AI inference usage prerequisites, see Using AI Inference (including inference node resources, metrics-server, PD + Mooncake KVCache networking, etc.).
• For network configuration when PD disaggregation and Mooncake KVCache transmit via HCCS, see Ascend HCCS Device IP Address Configuration Example.
• For custom model weight host mount paths and cache directory structure, see Custom Model Directory Configuration.

Note:

• When deploying via the InferNex Bridge standalone installation method, pre-installation of the main Chart's inference-backend is not required; enhancement components such as Mooncake KVCache, cache-indexer, PD-Orchestrator are launched by InferNex Bridge per instance.
• When enabling Eagle-Eye, NATS and kube-prometheus-stack must be pre-installed; for configuration and usage, see AI Inference Eagle-Eye.

Getting Started with Installation ​

Method 1: Install Chart from InferNex Source Repository ​

git clone -b release-26.9.0 https://gitcode.com/openFuyao/InferNex.git
cd InferNex/component/InferNex-Bridge

helm upgrade --install infernex-bridge ./chart/infernex-bridge \
  -n infernex-bridge-system \
  --create-namespace \
  --wait \
  --timeout 10m

The Chart version corresponds one-to-one with the InferNex release version; this release corresponds to 26.9.0. Before installation, run the following command to view Chart metadata.

helm show chart ./chart/infernex-bridge

Method 2: Install from OCI Repository (Recommended) ​

helm upgrade --install infernex-bridge oci://cr.openfuyao.cn/charts/infernex-bridge \
  --version 26.9.0 \
  -n infernex-bridge-system \
  --create-namespace \
  --wait \
  --timeout 10m

--version specifies the Chart version; this release uses 26.9.0. Before installation, run the following command to view Chart metadata.

helm show chart oci://cr.openfuyao.cn/charts/infernex-bridge --version 26.9.0

Webhook TLS Certificate (Optional) ​

InferNex Bridge Webhook requires a TLS certificate. The Chart supports two methods, switched via webhooks.certGenerator.enabled (default true) and certManager.enabled (default false).

Table 1 Webhook TLS Certificate Configuration Methods

When cert-manager is already deployed in the cluster, run the following command to set certManager.enabled=true.

helm upgrade --install infernex-bridge oci://cr.openfuyao.cn/charts/infernex-bridge \
  --version 26.9.0 \
  -n infernex-bridge-system \
  --create-namespace \
  --set certManager.enabled=true \
  --wait \
  --timeout 10m

Verify Deployment ​

helm list -n infernex-bridge-system
kubectl get pods,svc -n infernex-bridge-system
kubectl get secret webhook-server-cert -n infernex-bridge-system
kubectl get mutatingwebhookconfiguration,validatingwebhookconfiguration | grep infernex-bridge
kubectl get endpoints webhook-service -n infernex-bridge-system

Expected output.

• The InferNex Bridge controller Pod is Running with READY as 1/1.
• Webhook certificate, configuration, and Service endpoint are all ready and can properly receive Admission requests.

Uninstall ​

Uninstall the InferNex Bridge control plane (controller, Webhook, and related Release resources).

helm uninstall infernex-bridge -n infernex-bridge-system

Note:
When the default webhooks.certGenerator.enabled=true and certManager.enabled=false, the pre-delete Hook Job cleanup-webhook-cert additionally cleans up Mutating/ValidatingWebhookConfiguration and the webhook-server-cert Secret; when certManager.enabled=true, this Job is not created, Webhook configuration is deleted with the Release, and the certificate Secret is managed by cert-manager. CRDs deployed by the Chart are not deleted with the Release by default and need to be handled manually. If there are no other resources to retain in the infernex-bridge-system namespace, you can run kubectl delete namespace infernex-bridge-system to delete the namespace and its residual resources.

Using InferNex Bridge ​

A single inference instance should not have two sets of the same type of enhancement components installed redundantly via two deployment entries; please select either KServe + LLMInferenceService or InferNexService for each instance, and do not mix them.

Using LLMInferenceService ​

Applicable to scenarios where KServe is already installed: the inference engine and Hermes Router are reconciled by KServe; enhancement components are reconciled by InferNex Bridge.

Prerequisites ​

• The InferNex Bridge control plane and inference cluster environment checks in the prerequisites of this document have been completed.
• InferNex Bridge and Webhook are running normally.
• You have permissions to create LLMInferenceService and LLMInferenceServiceConfig.
• Envoy Gateway and GIE-related CRDs are ready (if gateway access is needed).

Background Information ​

Table 2 Config and LLMISVC Responsibilities

Setting the infernex.io/runtime label only on Config is ineffective. It is recommended to first create the Config, then create the labeled LLMISVC and reference the Config via spec.baseRefs. For Hermes Router routing policies, plugins, and gateway-side configuration, see AI Inference Hermes Router.

Usage Restrictions ​

• The infernex.io/runtime label must only be set on LLMInferenceService; setting it on LLMInferenceServiceConfig is ineffective.
• KServe's LLMInferenceServiceConfig system must be used and cannot be mixed with InferNexServiceConfig.
• In the examples, replicas: 1 is the default fixed replica for the inference engine; to enable PD-Orchestrator scaling, you must omit replicas on spec.template/spec.prefill in the LLMISVC Config, as well as LLMISVC spec.replicas and spec.prefill.replicas; see Appendix — Inference Engine Replicas and Scaling.

Operation Steps ​

1. Prepare the ingress Gateway (as needed).

   In the example LLMISVC, spec.router.gateway: {} and route: {} indicate that KServe creates the HTTPRoute and attaches it to the default ingress Gateway (commonly kserve-ingress-gateway in the kserve namespace). If it does not exist in the cluster, it must be created first.

   yaml

   apiVersion: gateway.networking.k8s.io/v1
   kind: Gateway
   metadata:
     name: kserve-ingress-gateway
     namespace: kserve
   spec:
     gatewayClassName: envoy
     infrastructure:
       labels:
         serving.kserve.io/gateway: kserve-ingress-gateway
     listeners:
       - name: http
         protocol: HTTP
         port: 80
         allowedRoutes:
           namespaces:
             from: All

   Save the above YAML as kserve-ingress-gateway.yaml, then run the following commands to create the ingress Gateway and confirm it is ready.

   bash

   kubectl apply -f kserve-ingress-gateway.yaml
   kubectl get gateway -n kserve kserve-ingress-gateway

2. Create LLMInferenceServiceConfig and configure the engine template.

   storageInitializer (disabled by default in the example, can be enabled as needed).

   yaml

     storageInitializer:
       enabled: false

   Table 3 storageInitializer.enabled Behavior Description

   enabled	Behavior
   false (recommended)	Does not inject KServe storage-initializer init; faster cold start. Model is prepared by node hostPath cache or inference engine initContainers (e.g., huggingface-download).
   true	KServe pulls the model built-in via spec.model.uri; typically slower on first start, consistent with KServe native hf:// flow.

   The Hermes Router EPP container must use the fixed container name main and named port grpc (see Appendix — Hermes Router Container Naming Convention).

   yaml

     router:
       scheduler:
         pool:
           spec:
             selector:
               matchLabels:
                 app.kubernetes.io/name: ex-ag-01-sn-sc
             endpointPickerRef:
               kind: Service
               name: ex-ag-01-sn-sc-epp-service
         template:
           spec:
             containers:
               - name: tokenizer
                 image: cr.openfuyao.cn/openfuyao/hermes-tokenizer:latest
               - name: main
                 image: cr.openfuyao.cn/openfuyao/hermes-router:latest
                 ports:
                   - name: grpc
                     containerPort: 9002

   The fixed main is to ensure that when sidecars such as tokenizer exist, EndpointPickerRef uniquely locates the EPP via the Service targetPort; otherwise, it may connect to the tokenizer's 8000 port, which typically manifests externally as HTTP 500.

3. Create a labeled LLMInferenceService.

   When entering the InferNex chain, only label the LLMInferenceService.

   yaml

   metadata:
     labels:
       infernex.io/runtime: "true"

   Label and baseRefs (aggregate getting-started example instance name ex-ag-01-sn-sc).

   yaml

   apiVersion: serving.kserve.io/v1alpha2
   kind: LLMInferenceService
   metadata:
     name: ex-ag-01-sn-sc
     namespace: kserve
     labels:
       infernex.io/runtime: "true"
   spec:
     baseRefs:
       - name: ex-ag-01-sn-sc-config
     model:
       uri: hf://Qwen/Qwen2.5-0.5B
       name: Qwen/Qwen2.5-0.5B

4. Deploy the complete example.

   Before deployment, modify the namespace, node, nodeName, hostPath, model URI, image tag, etc. according to your environment. Examples are maintained in separate directories by scenario (single-node single-card/single-node multi-card/cross-node MoE + LWS, etc.); for the complete list, see the InferNex repository component/InferNex-Bridge/config/examples/llmisvc/.

   • Aggregate getting started: ag-01-single-node-single-card.yaml (Aggregate Mode Sample Directory)
   • P/D getting started: pd-01-single-node-single-card.yaml (PD Disaggregated Mode Sample Directory)
   bash

   git clone -b release-26.9.0 https://gitcode.com/openFuyao/InferNex.git
   cd InferNex/component/InferNex-Bridge/config/examples/llmisvc
   kubectl apply -f aggregate/ag-01-single-node-single-card.yaml
   # or
   kubectl apply -f disaggregated/pd-01-single-node-single-card.yaml

   bash

   kubectl get llminferenceservice,llminferenceserviceconfig -n kserve
   kubectl get pods -n kserve

5. Verify the inference service via the gateway.

   After the instance is Ready, access via Envoy; the URL format is: http://<gateway-IP-address>:<port>/<path-prefix>/v1/chat/completions.

   5.1 Check the gateway IP address and port.

   bash

   kubectl get svc -A | grep -i envoy
   kubectl get nodes -o wide

   5.2 Confirm the path prefix and send a request.

   The path prefix for KServe default routing is /<metadata.namespace>/<metadata.name>, where the first segment is the namespace of the LLMInferenceService and the second segment is the instance name; it is not fixed to kserve. When the namespace and instance name are unchanged from the getting-started example YAML, the aggregate reference path is /kserve/ex-ag-01-sn-sc, and P/D is /kserve/ex-pd-01-sn-sc. The model in the request body must match the spec.model.name of the deployed YAML.

   bash

   curl -X POST "http://<gateway-IP>:<port>/kserve/ex-ag-01-sn-sc/v1/chat/completions" \
     -H "Content-Type: application/json" \
     -d '{"model":"<spec.model.name>","messages":[{"role":"user","content":"hello"}]}'

Follow-up Operations ​

Delete the LLMISVC instance. Delete the LLMInferenceService with infernex.io/runtime: "true" (aggregate getting-started example, namespace kserve; for P/D, change the instance name to ex-pd-01-sn-sc).

kubectl delete llminferenceservice ex-ag-01-sn-sc -n kserve

kubectl get llminferenceservice,insvc -n kserve
kubectl get pods -n kserve | grep ex-ag-01-sn-sc

After deletion, KServe reclaims the inference engine, Hermes Router, HTTPRoute, etc.; InferNex Bridge deletes the auto-created InferNexService with the same name, as well as enhancement components such as Mooncake KVCache, cache-indexer, PD-Orchestrator, and Eagle-Eye.

Delete LLMISVCConfig (optional). LLMInferenceServiceConfig is a reusable template and is not automatically deleted with LLMISVC; execute when you need to remove a custom Config.

kubectl delete llminferenceserviceconfig ex-ag-01-sn-sc-config -n kserve

Notice:

• If you have scaled out additional inference engine replicas via PD-Orchestrator (Elastic-Scaler/ResourceScalingGroup), after deleting the LLMISVC, check whether there are residual Deployment, ElasticScaler, ResourceScalingGroup, and other CRs, and clean them up manually if necessary.
• When the namespace remains in Terminating for a long time, check whether InferNexService is stuck at the finalizer stage, and confirm no residual Pods before processing the finalizer.

Using InferNexService ​

Applicable to scenarios that do not depend on KServe, deployed natively via InferNexService/InferNexServiceConfig CRD by InferNex Bridge: the inference engine, Hermes Router, and enhancement components are all reconciled by InferNex Bridge. The InferNexService resource is abbreviated as insvc, and InferNexServiceConfig as insvccfg (CRD shortNames); the kubectl examples below use these abbreviations.

Prerequisites ​

• The InferNex Bridge control plane and inference cluster environment checks in the prerequisites of this document have been completed.
• Default templates (infernex-default-aggregate-template/infernex-default-pd-template) have been installed in the template namespace (default infernex-bridge-system); these contain only enhancement components and IGR default values, without inference engine Pod templates; deploying an instance requires referencing example Config or building a custom spec.engine.
• If an external ingress is needed: Envoy Gateway and GatewayClass are available; spec.intelligentGatewayRouting.router.enabled: true with Gateway/HTTPRoute/InferencePool configured.

Background Information ​

• InferNexService references InferNexServiceConfig via spec.baseRefs to merge configuration; spec.engine can be written in InferNexService or InferNexServiceConfig (examples reference Config via baseRefs; flat structure: root fields are aggregate/decode workloads, with an additional prefill sub-block for P/D); InferNexService also specifies model, IGR, component switches, etc. Chart default templates (infernex-default-aggregate-template/infernex-default-pd-template) contain only enhancement components and IGR default values, without engine Pod templates; deploying an inference instance requires referencing example Config or building a custom engine template.
• Mooncake KVCache, cache-indexer, proxy-server (PD), PD-Orchestrator, Eagle-Eye, etc. are launched by the controller from built-in assets or merged with platform default Config, without needing to expand the full PodTemplate in user YAML.
• For Hermes Router routing policies, plugins, and gateway-side configuration, see AI Inference Hermes Router.

spec Field Description ​

InferNexService and InferNexServiceConfig division of labor: baseRefs are merged in order, with later ones overriding earlier ones; spec.engine can be written in InferNexService or InferNexServiceConfig (examples typically place it in Config); InferNexService also specifies model, IGR, component switches, etc. The two Config systems cannot be mixed with LLMInferenceServiceConfig.

Table 4 InferNexService Field Description

spec.engine Field Description ​

spec.engine is a flat structure (no longer using engine.aggregate/engine.pd nested blocks). Each workload segment (root field or prefill) shares the same set of fields.

Table 5 spec.engine Workload Fields (applicable to both root field and prefill)

Mode determination: After merge is complete, if prefill.template contains valid containers, it is P/D (root field is decode, prefill must be configured simultaneously); otherwise, it is aggregate (only root field template). The Chart default template names still distinguish aggregate/pd for component default value fallback, unrelated to the spec.engine YAML shape.

The YAML skeleton for aggregate and P/D is as follows (for complete Pod templates, see example Config):

# aggregate
spec:
  engine:
    template:
      spec:
        containers: [...]
    # Optional: replicas, dataParallelSize, dataParallelSizeLocal, worker

# P/D (root template=decode, prefill=prefill)
spec:
  engine:
    template:
      spec:
        containers: [...]   # decode
    prefill:
      template:
        spec:
          containers: [...]

For more LWS/Admission constraints and scaling prerequisites, see Appendix — Inference Engine Replicas and Scaling in this document.

IGR and Gateway Objects ​

• router.enabled: Master switch for the external ingress. When false, only the in-cluster inference engine and enhancement components are deployed, and InferNex Bridge does not reconcile Gateway/HTTPRoute/InferencePool.
• When router.enabled: true, the Hermes Router EPP template must be configured (container name main, port name grpc, see Appendix — Hermes Router Container Naming Convention); gateway, httpRoute, inferencePool each support two approaches.
  • ref: References an existing resource name in the cluster (Bring Your Own).
  • spec: Creates or updates the managed object by InferNex Bridge based on the fields.
  • ref and spec are mutually exclusive on the same object and cannot be specified simultaneously.
• When router is enabled and no ref is specified for gateway/httpRoute/inferencePool, InferNex Bridge manages the corresponding Gateway API objects according to default rules (examples typically only write the router section).

Component Switches (spec.components) ​

For InferNexService created under the InferNexService deployment entry (without spec.sourceRef), if a component block is declared in YAML, enabled: true or false must be explicitly written and cannot be omitted. Common fields.

• mooncake.enabled, cacheIndexer.enabled
• pdOrchestrator.elasticScaler/tidal/resourceScalingGroup
• eagleEye.hardwareMonitor/hardwareDiagnosis (NATS and kube-prometheus-stack must be installed before enabling)

spec.sourceRef ​

Under the KServe chain, InferNex Bridge automatically creates a same-named InferNexService with sourceRef. Such objects are reconciled by InferNex Bridge only for enhancement components; do not manually modify engine/router; IGR is managed by KServe, and InferNex Bridge does not touch Gateway API objects.

Usage Restrictions ​

• The InferNexService deployment entry does not require the infernex.io/runtime label; this label is only for the KServe + LLMInferenceService deployment entry.
• Under the InferNexService deployment entry, Hermes Router uses labels such as openfuyao.com/pdRole and openfuyao.com/pdGroupID; this differs from the app.kubernetes.io/* label system of the KServe + LLMInferenceService deployment entry, and they must not be mixed.
• Under the InferNexService deployment entry, for InferNexService without spec.sourceRef, if a component block is declared in spec.components in YAML, enabled: true or false must be explicitly written.
• For InferNexService auto-created under the KServe chain with spec.sourceRef, do not manually modify the engine/router fields.
• In the examples, replicas: 1 is the default fixed replica for the inference engine; to enable PD-Orchestrator scaling, you must omit replicas on the engine root field and engine.prefill; see Appendix — Inference Engine Replicas and Scaling.

Operation Steps ​

1. Confirm default templates and namespace.

   bash

   kubectl get insvc,insvccfg -n infernex-bridge-system
   kubectl get pods -n infernex-bridge-system
   kubectl get gateway,httproute,inferencepool -n infernex-bridge-system

2. Prepare InferNexServiceConfig (customize engine template as needed).

   Custom engine templates are written in InferNexServiceConfig and referenced by InferNexService via spec.baseRefs; you can also use the default templates installed by the Chart.

3. Create an InferNexService instance.

   yaml

   apiVersion: infernex.infernex.io/v1alpha1
   kind: InferNexService
   metadata:
     name: ex-ag-01-sn-sc
     namespace: infernex-bridge-system
   spec:
     baseRefs:
       - name: ex-ag-01-sn-sc-engine
     model:
       uri: hf://Qwen/Qwen2.5-0.5B
       name: Qwen/Qwen2.5-0.5B
     intelligentGatewayRouting:
       router:
         enabled: true

   The Hermes Router template must use the fixed EPP container name main and port name grpc (see Appendix — Hermes Router Container Naming Convention).

4. Deploy the complete example.

   Examples are maintained in separate directories by scenario (single-node single-card/single-node multi-card/cross-node MoE + LWS, etc.); each YAML contains an InferNexServiceConfig (spec.engine) and an InferNexService (model + IGR) with the same Spec ID. For the complete list, see the InferNex repository component/InferNex-Bridge/config/examples/insvc/.

   • Aggregate getting started: ag-01-single-node-single-card.yaml (Aggregate Mode Sample Directory)
   • P/D getting started: pd-01-single-node-single-card.yaml (PD Disaggregated Mode Sample Directory)
   bash

   cd InferNex/component/InferNex-Bridge/config/examples/insvc
   kubectl apply -f aggregate/ag-01-single-node-single-card.yaml
   # or
   kubectl apply -f disaggregated/pd-01-single-node-single-card.yaml

5. Verify the inference service via the gateway.

   Similar to LLMISVC, check Gateway/HTTPRoute and then curl; the path prefix is also /<namespace>/<instance-name> (InferNex Bridge managed routes are also generated according to this rule). The model must match spec.model.name. The aggregate getting-started instance name is ex-ag-01-sn-sc, and P/D is ex-pd-01-sn-sc (per the example YAML).

Follow-up Operations ​

Delete the InferNexService instance. After deleting InferNexService, InferNex Bridge reclaims the inference engine, Hermes Router, enhancement components reconciled for this instance, as well as Gateway/HTTPRoute/InferencePool created when IGR is enabled (subject to controller ownership). Aggregate getting-started example (namespace infernex-bridge-system).

kubectl delete insvc ex-ag-01-sn-sc -n infernex-bridge-system

kubectl get insvc,pods -n infernex-bridge-system | grep ex-ag-01-sn-sc
kubectl get gateway,httproute,inferencepool -n infernex-bridge-system

Delete InferNexServiceConfig (optional). InferNexServiceConfig is a reusable engine template and is not automatically deleted with the InferNexService instance. When deleting an instance, typically only insvc needs to be deleted; Config does not need to be deleted.

• User custom templates (e.g., example ex-ag-01-sn-sc-engine). After confirming no other InferNexService references it via spec.baseRefs, it can be deleted as needed.

kubectl delete insvccfg ex-ag-01-sn-sc-engine -n infernex-bridge-system

• Chart default templates (infernex-default-aggregate-template, infernex-default-pd-template): installed by the InferNex Bridge Chart in the template namespace, for new instances to reference via baseRefs or as controller default fallback, with no binding relationship to individual inference instances. When deleting an InferNexService, there is no need to delete them and they should not be deleted; only clean them up together when uninstalling the InferNex Bridge control plane and confirming the cluster no longer uses this Bridge.

Notice:
If PD-Orchestrator scaling produces additional workloads, after deleting the instance, please also check whether related resources such as Deployment, ElasticScaler, ResourceScalingGroup are residual, and clean them up manually if necessary.

Related Operations ​

In addition to deleting instances, common operations commands are as follows.

View the InferNex Bridge control plane.

helm status infernex-bridge -n infernex-bridge-system
kubectl get pods -n infernex-bridge-system

View inference instances (KServe + LLMInferenceService deployment entry).

kubectl get llminferenceservice,insvc -n kserve
kubectl get pods -n kserve -l infernex.io/runtime=true

View inference instances (InferNexService deployment entry).

kubectl get insvc -n infernex-bridge-system
kubectl get pods -n infernex-bridge-system

Appendix ​

Hermes Router Container Naming Convention ​

Hermes Router (Endpoint Picker, EPP) is deployed in the same Pod as sidecars such as tokenizer. When InferencePool.endpointPickerRef points to the EPP Service, the controller resolves the backend by fixed container name and port name; when the naming does not conform to the convention, traffic may be misrouted to a sidecar (e.g., tokenizer's 8000), which typically manifests externally as HTTP 500.

Table 6 Hermes Router EPP Template Constraints

Under the KServe + LLMInferenceService path, the Hermes image, main container args, and sidecars such as tokenizer must be configured in router.scheduler.template; it is recommended to explicitly declare writable volumes such as tokenizer-tmp and tokenizer-cache (consistent with Chart examples). For Webhook compatibility patches on 6 preset LLMInferenceServiceConfig (clearing llm-d initContainers, etc.), see Technical Specification — Mutating Webhook Patch Description.

Minimal EPP snippet example (tokenizer and main order is interchangeable):

containers:
  - name: tokenizer
    image: cr.openfuyao.cn/openfuyao/hermes-tokenizer:latest
  - name: main
    image: cr.openfuyao.cn/openfuyao/hermes-router:latest
    ports:
      - name: grpc
        containerPort: 9002

Inference Engine Replicas and Scaling ​

PD-Orchestrator (including Elastic-Scaler, Tidal Controller, ResourceScalingGroup) has been adapted for both KServe + InferNex Bridge entry points. Whether scaling takes effect depends on whether the inference engine omits replicas in YAML (not writing the field, rather than writing 0). Hermes Router, enhancement components, etc. can still write replicas: 1.

Table 7 Comparison of Inference Engine Scaling Support Under Two Deployment Methods

Note:
In component/InferNex-Bridge/config/examples, replicas: 1 is only for fixed replica demonstration. Before enabling scaling, please delete engine.replicas (aggregate or decode), engine.prefill.replicas, and LLMISVC spec.replicas, spec.prefill.replicas, and other engine/template-related replicas fields. For multi-Pod DP (where dataParallelSize/dataParallelSizeLocal makes groupSize>1), Bridge uses LeaderWorkerSet, where replicas represents the LWS group count rather than individual Pod count.

After omitting engine.replicas, see the following documents for how to use each scaling capability.

• AI Inference Elastic Scaling — Configuring Scaling Policies
• ResourceScalingGroup — Using ResourceScalingGroup
• AI Inference Tidal Algorithm — Using AI Inference Tidal Algorithm
