最佳实践 ​

K8s集群安装部署最佳实践 ​

当集群达到一定规模后，普通形态部署的集群控制面难以支撑集群稳定运行，主要原因为kube-apiserver请求压力激增、etcd响应延时激增，因此需要部署高可用形态集群控制面并拆分集群元数据存到多套etcd集群，同时需要对K8s核心组件进行参数优化，以提高集群控制面的稳定性。

目标 ​

给出部署超大规模集群控制面与工作节点的部署步骤，并根据节点规模给出建议部署形态。

前提条件 ​

  • 要求待安装集群机器已安装操作系统。
  • 所有机器可使用root用户登录。
  • 所有机器间网络互通。
  • 所有节点环境干净，未安装runc、containerd、docker、docker-ce、kubeadm、kubectl、kubelet、crictl等组件。
  • 节点可通过yum工具安装软件包。

使用限制 ​

支持操作系统 ​

操作系统版本架构
openEuler22.03ARM64、x86_64

说明：
其他版本操作系统暂未测试，可能会出现不在预期内的问题。

支持Kubernetes版本 ​

  • v1.28：1.28.15
  • v1.33: 1.33.1
  • v1.34: 1.34.3

部署形态 ​

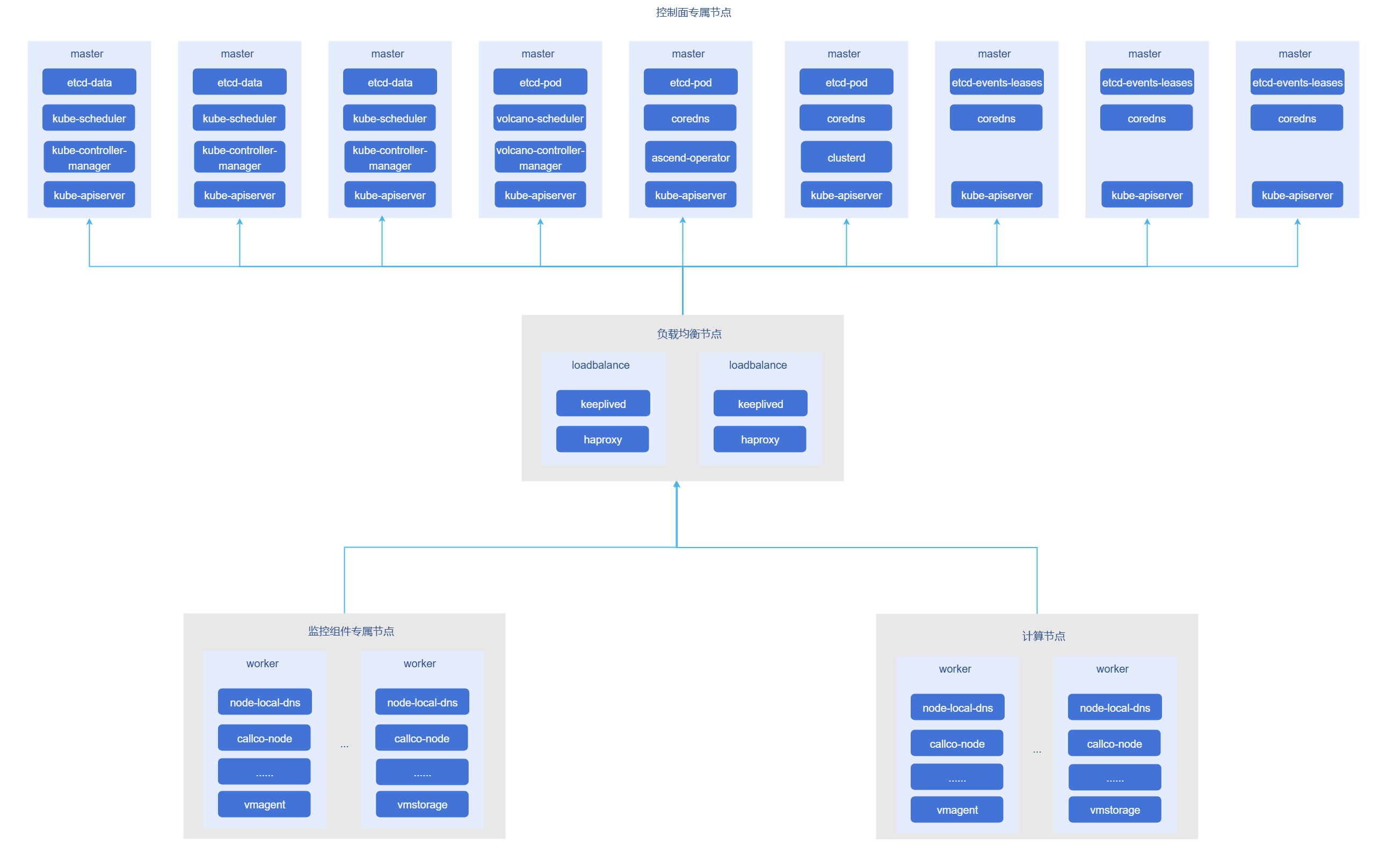

  1. 部署1.6万节点超大规模集群时，最好将集群控制面组件直接部署在多CPU、大内存物理机中，防止因控制面资源不足导致kube-apiserver等核心组件雪崩。建议将控制面组件部署在CPU核心数大于80、内存大于500GB、存储大于1T的物理机中，并推荐采用如下架构部署：

    说明：
    当集群节点数量大于5000时均推荐采用上述部署方案。

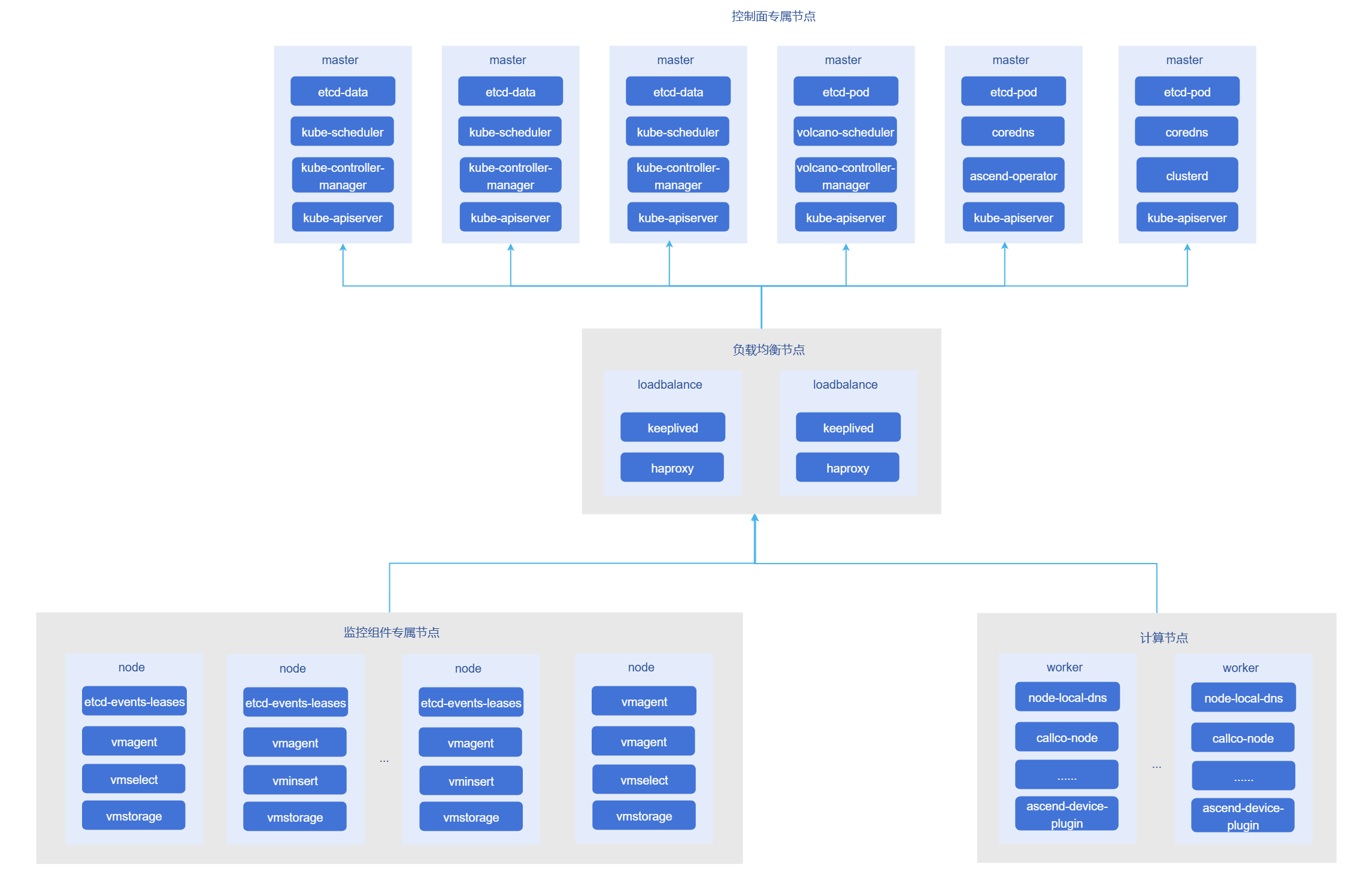

  2. 部署3k~5k节点大规模集群时，也建议将集群控制面组件直接部署在多CPU、大内存物理机中，并推荐采用如下架构部署：

操作步骤 ​

此操作步骤给出支持1.6万节点集群控制面与工作节点的部署步骤，假设控制面与部分工作节点机器如下表：

表1： 控制面与工作节点信息

iphostname组件角色CPU(vCPU)内存(BG)
192.168.200.240node1keepalived、haproxyloadbalance3264
192.168.200.239node2keepalived、haproxyloadbalance3264
192.168.200.238node3kube-apiserver、etcd(data)、kube-controller-manager、kube-schedulermaster80700
192.168.200.237node4kube-apiserver、etcd(data)、kube-controller-manager、kube-schedulermaster80700
192.168.200.236node5kube-apiserver、etcd(data)、kube-controller-manager、kube-schedulermaster80700
192.168.200.235node6kube-apiserver、etcd(pod)、volcano-controller-manager、volcano-schedulermaster80700
192.168.200.234node7kube-apiserver、etcd(pod)、coredns、ascend-operatormaster80700
192.168.200.233node8kube-apiserver、etcd(pod)、coredns、clusterdmaster80700
192.168.200.232node9kube-apiserver、etcd(events-leases)、corednsmaster80700
192.168.200.231node10kube-apiserver、etcd(events-leases)、corednsmaster80700
192.168.200.230node11kube-apiserver、etcd(events-leases)、corednsmaster80700
192.168.200.229node12victoriametrics软件栈worker80700
192.168.200.228node13victoriametrics软件栈worker80700
192.168.200.227node14victoriametrics软件栈worker80700
192.168.200.226node15业务组件worker1632
192.168.200.225node16业务组件worker1632
192.168.200.224node17业务组件worker1632
192.168.200.223node18业务组件worker1632
192.168.200.222--高可用部署虚拟IP--

  1. 以root用户登录node3节点。

  2. 进行基础配置，关闭swap分区、selinux等，并安装基础组件包，所有节点都配置、安装。

    shell
    # 关闭swap分区
swapoff -a

# 关闭selinux
sudo setenforce 0
sudo sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config

# 关闭并禁用防火墙
systemctl stop firewalld && systemctl disable firewalld

yum install -y tar wget

  3. 安装containerd，集群内除负载均衡节点其他节点都安装。

    3.1 配置桥接网络流量。

    shell
    cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

  sudo modprobe overlay
  sudo modprobe br_netfilter

# 设置所需的 sysctl 参数，参数在重新启动后保持不变
cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

  # 应用 sysctl 参数而不重新启动
  sudo sysctl --system

  lsmod | grep br_netfilter
  lsmod | grep overlay

  sysctl net.bridge.bridge-nf-call-iptables net.bridge.bridge-nf-call-ip6tables net.ipv4.ip_forward

  # 配置ipv4转发
  echo "1" >> /proc/sys/net/ipv4/ip_forward

    3.2 安装containerd，并配置containerd.service。

    shell
    ARCH=$(uname -m)
case $ARCH in
  x86_64) ARCH="amd64";;
  aarch64) ARCH="arm64";;
esac
VERSION="1.7.14"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/containerd/containerd/releases/download/v${VERSION}/containerd-${VERSION}-linux-${ARCH}.tar.gz
tar Cxzvf /usr/local/bin containerd-${VERSION}-linux-${ARCH}.tar.gz


wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/containerd/containerd/releases/download/v{VERSION}/containerd.service
mkdir -p /usr/local/lib/systemd/system
# 将之前下载的containerd.service复制到对应目录
cp containerd.service /usr/local/lib/systemd/system/

# 重新加载配置，并让containerd开机自启
sudo systemctl daemon-reload

    3.3 生成containerd配置文件，并修改使用systemd驱动与社区沙箱镜像。

    shell
    mkdir -p /etc/containerd/
containerd config default > /etc/containerd/config.toml
# 使用systemd cgroup驱动
sed -i 's/SystemdCgroup = false/SystemdCgroup = true/' /etc/containerd/config.toml

# 修改sandbox_image
sed -i 's|sandbox_image = "registry.k8s.io/pause:3.8"|sandbox_image = "cr.openfuyao.cn/openfuyao/kubernetes/pause:3.9"|' /etc/containerd/config.toml

    3.4 启动containerd，并配置开机自启。

    shell
    systemctl enable containerd
systemctl start containerd

  4. 安装runc，集群内所有节点都安装。

    shell
    ARCH=$(uname -m)
case $ARCH in
    x86_64) ARCH="amd64";;
    aarch64) ARCH="arm64";;
esac
VERSION="1.1.12"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/opencontainers/runc/releases/download/v${VERSION}/runc-${ARCH}

install -m 755 runc-${ARCH} /usr/local/sbin/runc

  5. 安装cni-plugins，集群内所有节点都安装。

    shell
    ARCH=$(uname -m)
case $ARCH in
    x86_64) ARCH="amd64";;
    aarch64) ARCH="arm64";;
esac
VERSION="1.4.1"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/containernetworking/plugins/releases/download/v${VERSION}/cni-plugins-linux-${ARCH}-v${VERSION}.tgz

mkdir -p /opt/cni/bin
tar Cxzvf /opt/cni/bin cni-plugins-linux-${ARCH}-v${VERSION}.tgz

  6. 安装etcd，部署etcd节点均需要安装。

    shell
    ARCH=$(uname -m)
case $ARCH in
    x86_64) ARCH="amd64";;
    aarch64) ARCH="arm64";;
esac
VERSION="v3.5.18"

# 下载etcd安装包
wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/etcd-io/etcd/releases/download/${VERSION}/etcd-${VERSION}-linux-${ARCH}.tar.gz

# 安装etcd
tar -xvf etcd-"${VERSION}"-linux-${ARCH}.tar.gz
cp -rf etcd-"${VERSION}"-linux-${ARCH}/etcd* /usr/local/bin/
chmod +x /usr/local/bin/{etcd,etcdctl,etcdutl}

  7. 启动etcd群集，使用自动化脚本启动etcd集群，启动集群前需要配置node3到所有etcd节点的免密登录，并在node3节点安装yq和step工具。

    7.1 安装yq工具。

    shell
    ARCH=$(uname -m)
case $ARCH in
    x86_64) ARCH="amd64";;
    aarch64) ARCH="arm64";;
esac
VERSION="4.43.1"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/mikefarah/yq/releases/download/v${VERSION}/yq_linux_${ARCH}

cp -f yq_linux_${ARCH} /usr/local/bin/
chmod +x /usr/local/bin/yq

    7.2 安装step工具。

    shell
    ARCH=$(uname -m)
case $ARCH in
 x86_64) ARCH="amd64";;
 aarch64) ARCH="arm64";;
esac
VERSION="0.28.2"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/smallstep/cli/releases/download/v${VERSION}/step_linux_"${VERSION}"_${ARCH}.tar.gz

tar -xvf step_linux_"${VERSION}"_${ARCH}.tar.gz
mv step_"${VERSION}"/bin/step /usr/local/bin/step
chmod +x /usr/local/bin/step

    7.3 在node3节点配置到其他部署etcd节点的免密登录。

    shell
    # 生成公钥，有提示直接回车即可
ssh-keygen

# 上传登录公钥到其他etcd节点
for ip in 192.168.200.238 192.168.200.237 192.168.200.236 192.168.200.235 192.168.200.234 192.168.200.233 192.168.200.232 192.168.200.231 192.168.200.230; do
 # 此处会提示输入密码，可直接输入密码并按回车
 ssh-copy-id -i ~/.ssh/id_rsa.pub root@${ip}
done

    7.4 安装基础组件。

    shell
    yum install -y systemd-pam

    7.5 在node3上保存下面启动脚本到etcd-bootstrap.sh。

    shell
    #!/bin/bash

main() {
 local workspace
 local version=3.5.18
 local hosts=()
 local prefix=etcd
 local use_tmpfs=false
 local out_certs=.
 while (($# > 0)); do
     case "$1" in
         -c|--workspace) workspace=$2; shift;;
         --workspace=*) workspace=${1#--workspace=};;
         -V|--version) version=$2; shift;;
         --version=*) version=${1#--version=};;
         -p|--prefix) prefix=$2; shift;;
         --prefix=*) prefix=${1#--prefix=};;
         -t|--use-tmpfs) use_tmpfs=true;;
         -o|--out-certs) out_certs=$2; shift;;
         --out-certs=*) out_certs=${1#--out-certs=};;
         --);;
         -*|--*) echo "Unknown option: $1"; exit 1;;
         *) hosts+=("$1");;
     esac
     shift
 done

 local config=$(get_embedded etcd-config)
 local script=$(get_embedded client-script)
 local defrag_script=$(get_embedded defrag-script)

 os=$(get_os)
 arch=$(get_arch)
 . <(get_embedded pkgman)
 prepare_ws "$workspace"
 check_prerequisites "$version" "$os" "$arch"
 gen_jwt_auth
 gen_etcd_ca
 echo "$defrag_script" > "local/bin/etcd-defrag.sh"
 chmod +x "local/bin/etcd-defrag.sh"
 local config=$(update_config "$config" "$use_tmpfs" "$(step crypto rand --format=hex)")
 local i host name args
 for i in "${!hosts[@]}"; do
     host=${hosts[$i]}
     name=$prefix-$i
     args=("$script" _ "$use_tmpfs")
     gen_etcd_certs "$name" "$host"
     ssh -o StrictHostKeyChecking=no root@"$host" bash -c "$(printf '%q ' "${args[@]}")" < <(
         create_payload "$(update_peer_config "$config" "$name" "$host")"
     )
 done
 gen_apiserver_cert
 output_certs "$out_certs"

 exit
}

get_os() {
 local os=$(uname | tr '[:upper:]' '[:lower:]')
 case "$os" in
     darwin) echo 'darwin';;
     linux) echo 'linux';;
     freebsd) echo 'freebsd';;
     mingw*|msys*|cygwin*) echo 'windows';;
     *) echo "Unsupported OS: ${os}" >&2; exit 1;;
 esac
}

get_arch() {
 local arch=$(uname -m)
 case "$arch" in
     amd64|x86_64) echo 'amd64';;
     i386) echo '386';;
     ppc64) echo 'ppc64';;
     ppc64le) echo 'ppc64le';;
     s390x) echo 's390x';;
     armv6*|armv7*) echo 'arm';;
     aarch64) echo 'arm64';;
     *) echo "Unsupported architecture: ${arch}" >&2; exit 1;;
 esac
}

get_embedded() {
 local embedded=$1
 sed -n "/^# >>>>> BEGIN $embedded\$/,/^# <<<<< END $embedded\$/{//!p}" "$0" | head -n-1 | tail -n+2
}

prepare_ws() {
 local workspace=$1
 local ws=${workspace:-$(mktemp -d)}
 export PATH=$PATH:$ws/bin
 [ -z "$workspace" ] &&
     trap "{
         cd /
         rm -rf '$ws'
     }" EXIT
 mkdir -p "$ws" && cd "$ws"
 mkdir -p bin local/{bin,{etc,share}/etcd}
}

check_prerequisites() {
 local version=$1
 local os=$2
 local arch=$3
 cat <<'EOF' > "step-ca.json"
{
 "subject": {{toJson .Subject}},
 "issuer": {{toJson .Subject}},
 "keyUsage": ["digitalSignature", "keyEncipherment", "certSign"],
 "basicConstraints": {
     "isCA": true
 }
}
EOF
 cat <<'EOF' > "step-leaf.json"
{
 "subject": {{toJson .Subject}},
 "sans": {{toJson .SANs}},
 "keyUsage": ["digitalSignature", "keyEncipherment"],
 "extKeyUsage": ["serverAuth", "clientAuth"]
}
EOF
}

gen_jwt_auth() {
 step crypto keypair local/share/etcd/jwt_ec384{.pub,} \
     --kty=EC --crv=P-384 \
     -f --insecure --no-password
}

gen_etcd_ca() {
 [ -f "etcd-ca.crt" ] && [ -f "etcd-ca.key" ] ||
     step certificate create etcd-ca etcd-ca.{crt,key} \
         --kty=OKP --crv=Ed25519 \
         --not-after=87600h \
         --template "step-ca.json" \
         -f --insecure --no-password
 cp -alf {etcd-,local/share/etcd/}ca.crt
}

gen_etcd_certs() {
 local name=$1
 local host=$2
 step certificate create "$name" local/share/etcd/server.{crt,key} \
     --kty=OKP --crv=Ed25519 \
     --ca="etcd-ca.crt" --ca-key="etcd-ca.key" \
     --not-after=87600h \
     --san="$name" --san=localhost --san=127.0.0.1 --san=0:0:0:0:0:0:0:1 --san="$host" \
     --template "step-leaf.json" \
     -f --insecure --no-password
 step certificate create "$name" local/share/etcd/peer.{crt,key} \
     --kty=OKP --crv=Ed25519 \
     --ca="etcd-ca.crt" --ca-key="etcd-ca.key" \
     --not-after=87600h \
     --san="$name" --san=localhost --san=127.0.0.1 --san=0:0:0:0:0:0:0:1 --san="$host" \
     --template "step-leaf.json" \
     -f --insecure --no-password
}

gen_apiserver_cert() {
 step certificate create apiserver-etcd-client apiserver-etcd-client.{crt,key} \
     --kty=OKP --crv=Ed25519 \
     --ca="etcd-ca.crt" --ca-key="etcd-ca.key" \
     --not-after=87600h \
     --template "step-leaf.json" \
     -f --insecure --no-password
}

create_payload() {
 local config=$1
 echo "$config" > "local/etc/etcd/config.yaml.tmpl"
 tar Cczf "local" - bin etc share
}

output_certs() {
 local out=$1
 tar czf "$out/etcd-certs.tar.gz" {etcd-ca,apiserver-etcd-client}.{crt,key}
}

update_config() {
 local config=$1
 local use_tmpfs=$2
 local token=$3
 local i cluster
 for i in "${!hosts[@]}"; do
     cluster="$cluster$prefix-$i=https://${hosts[$i]}:2380,"
 done
 cluster=${cluster::-1}
 config=$(yq "
     .initial-cluster = \"$cluster\" |
     .initial-cluster-token = \"$token\"
 " <<< "$config")
 if "$use_tmpfs"; then
     yq "
         .quota-backend-bytes = 8589934592 |
         .backend-batch-interval = 10000000 |
         .backend-batch-limit = 100 |
         .auto-compaction-mode = \"periodic\"
     " <<< "$config"
 else
     yq "
         .quota-backend-bytes = 68719476736 |
         .backend-batch-interval = 100000000 |
         .backend-batch-limit = 1000 |
         .auto-compaction-mode = \"\"
     " <<< "$config"
 fi
}

update_peer_config() {
 local config=$1
 local name=$2
 local host=$3
 yq "
     .name = \"$name\" |
     .listen-peer-urls = \"https://$host:2380\" |
     .listen-client-urls = \"https://$host:2379,https://localhost:2379\" |
     .initial-advertise-peer-urls = \"https://$host:2380\" |
     .advertise-client-urls = \"https://$host:2379\"
 " <<< "$config"
}

main "$@"

# >>>>> BEGIN client-script

set -e

# >>>>> BEGIN pkgman

has_cmd() {
 command -v "$1" &> /dev/null
}

_install_pkg_apt() {
 apt install -y --no-install-recommends "$@"
}

_install_pkg_dnf() {
 dnf install -y --setopt=install_weak_deps=False "$@"
}

_has_pkg_apt() {
 dpkg --get-selections | awk '{print $1}' | grep -qE "^$1(:|$)"
}

_has_pkg_dnf() {
 dnf list --installed | awk -F. '{print $1}' | grep -qE "^$1$"
}

_pkg_of_file_apt() {
 local file=$1
 pkg=$(dpkg -S "$file" | awk -F: '{print $1}')
 if [ -z "$pkg" ]; then
     echo "No package found for file: $file"
     exit 1
 fi
 echo "$pkg"
}

_pkg_of_file_dnf() {
 local file=$1
 if ! dnf repoquery -q --whatprovides "$file" --qf '%{name}'; then
     echo "No package found for file: $file"
     exit 1
 fi
}

shopt -s expand_aliases
for pkgman in apt dnf; do
 if has_cmd "$pkgman"; then
     alias install_pkg="_install_pkg_$pkgman"
     alias has_pkg="_has_pkg_$pkgman"
     alias pkg_of_file="_pkg_of_file_$pkgman"
     break
 fi
done
if ! has_cmd install_pkg; then
 echo "Unsupported package manager"
 exit 1
fi

# <<<<< END pkgman

use_tmpfs=$1

if [ "$(id -u)" != 0 ]; then
 echo "client install script must be run as root"
 exit 1
fi

has_cmd systemctl ||
 install_pkg systemd
has_cmd envsubst ||
 install_pkg gettext
has_cmd tar ||
 install_pkg tar
has_cmd python3 ||
 install_pkg python3
has_cmd mkfs.xfs ||
 install_pkg xfsprogs
systemctl daemon-reload

export ETCD_DATA_DIR=/usr/local/share/etcd
export ETCD_CONFIG_DIR=/usr/local/etc/etcd
export ETCD_STATE_DIR=/var/lib/etcd
export ETCD_LOG_DIR=/var/log/etcd

[ -f "$ETCD_STATE_DIR/.disk-uuid" ] &&
 uuid=$(< "$ETCD_STATE_DIR/.disk-uuid")

rm -rf --one-file-system "$ETCD_STATE_DIR" || true
rm -rf "$ETCD_STATE_DIR/member"/{.,}* || true

mkdir -p "$ETCD_STATE_DIR"
echo "$uuid" > "$ETCD_STATE_DIR/.disk-uuid"
tar Cxzf "/usr/local" -

units=(etcd-defrag.timer etcd.service var-lib-etcd-member.mount)
for unit in "${units[@]}"; do
 unit_file=/etc/systemd/system/$unit
 if [ -f "$unit_file" ]; then
     systemctl disable --now "$unit" || true
     rm -f "$unit_file"
 fi
done
systemctl daemon-reload

if grep -q "$ETCD_STATE_DIR/member " /etc/mtab; then
 umount "$ETCD_STATE_DIR/member" || true
 sed -i "\\:$ETCD_STATE_DIR/member :d" /etc/fstab
fi

envsubst < "$ETCD_CONFIG_DIR/config.yaml.tmpl" > "$ETCD_CONFIG_DIR/config.yaml"

cat <<EOF > /usr/local/sbin/etcd-tune.sh
#!/bin/bash -x
[ -e /sys/devices/system/cpu/cpu0/cpufreq/scaling_governor ] &&
 echo performance | tee /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor > /dev/null
EOF
chmod +x /usr/local/sbin/etcd-tune.sh
cat <<EOF > /etc/systemd/system/etcd-tune.service
[Unit]
Description=etcd tuning
After=local-fs.target var-lib-etcd-member.mount
Wants=local-fs.target var-lib-etcd-member.mount

[Service]
ExecStart=/usr/local/sbin/etcd-tune.sh
Type=oneshot
RemainAfterExit=yes

[Install]
WantedBy=default.target
EOF

chmod 700 "$ETCD_STATE_DIR"
mkdir -p "$ETCD_STATE_DIR/member"
if "$use_tmpfs"; then
 cat <<EOF > "/etc/systemd/system/var-lib-etcd-member.mount"
[Unit]
Description=etcd data disk
Before=local-fs.target

[Mount]
What=tmpfs
Where=$ETCD_STATE_DIR/member
Type=tmpfs
Options=nosuid,nodev,uid=0,gid=0,mode=700,size=16384M
TimeoutSec=60s

[Install]
WantedBy=multi-user.target
EOF
else
 [ -n "$uuid" ] && [ -h "/dev/disk/by-uuid/$uuid" ] &&
     dev=$(realpath "/dev/disk/by-uuid/$uuid")
 if [ -z "$dev" ] || [ "$(blkid "$dev" | sed -E 's/.* TYPE="([^"]+)".*/\1/')" != xfs ]; then
     dev=
     for blk in $(lsblk -o NAME,MOUNTPOINT | awk '{if ($2 == "") print $1}'); do
         set +e
         [ -b "/dev/$blk" ] &&
             blkid "/dev/$blk"
         status=$?
         set -e
         if [ "$status" == 2 ]; then
             dev=/dev/$blk
             echo "found unpartitioned disk: $dev"
             uuid=$(cat /proc/sys/kernel/random/uuid)
             mkfs.xfs -f "$dev" -m "uuid=$uuid"
             echo "$uuid" > "$ETCD_STATE_DIR/.disk-uuid"
             udevadm settle
             # 挂载磁盘
             cat <<EOF > "/etc/systemd/system/var-lib-etcd-member.mount"
[Unit]
Description=etcd data disk
Before=local-fs.target

[Mount]
What=/dev/disk/by-uuid/$uuid
Where=$ETCD_STATE_DIR/member
Type=xfs
Options=nosuid,nodev,noatime,nodiratime
TimeoutSec=60s

[Install]
WantedBy=multi-user.target
EOF
           serial=$(udevadm info -n "$dev" | grep ID_SERIAL= | awk -F= '{print $2}')
           mkdir -p /usr/local/sbin
           # 设置磁盘为写直通模式，避免数据丢失
           cat <<EOF >> /usr/local/sbin/etcd-tune.sh
serial=$serial
devname=\$(find /dev/disk/by-id -regex ".*-\$serial$")
devpath=/sys\$(udevadm info -n "\$devname" | grep devpath= | awk -F= '{print \$2}')
echo 'write through' > "\$(find -L "\$devpath" -name cache_type -print -quit 2> /dev/null)"
EOF
             break
         fi
     done
     if [ -z "$dev" ]; then
         echo 'no unpartitioned disk found, use / to store etcd data'
         mkdir -p "$ETCD_STATE_DIR/member"
         dev="$ETCD_STATE_DIR/member"
     fi
 fi
fi
echo 'exit 0' >> /usr/local/sbin/etcd-tune.sh

mkdir -p "/etc/systemd/system"
cat <<EOF > "/etc/systemd/system/etcd.service"
[Unit]
Description=etcd
After=network-online.target local-fs.target remote-fs.target time-sync.target
Wants=network-online.target local-fs.target remote-fs.target time-sync.target

[Service]
Type=simple
ExecStart=/usr/local/bin/etcd --config-file=$ETCD_CONFIG_DIR/config.yaml
TimeoutSec=0
Restart=always
RestartSec=3
StartLimitBurst=20
StartLimitInterval=60s
#LimitNOFILE=infinity
#LimitNPROC=infinity
#LimitCORE=infinity
#TasksMax=infinity
Delegate=yes
KillMode=mixed
# 设置CPU优先级
CPUSchedulingPolicy=rr
CPUSchedulingPriority=99
# 设置IO优先级
IOSchedulingClass=realtime
IOSchedulingPriority=0

[Install]
WantedBy=default.target
EOF
cat <<EOF > "/etc/systemd/system/etcd-defrag.service"
[Unit]
Description=etcd auto compact/defrag
After=etcd.service
Wants=etcd.service etcd-defrag.timer

[Service]
Environment=ETCD_CONFIG_DIR=$ETCD_CONFIG_DIR
Environment=ETCDCTL_CACERT=$ETCD_DATA_DIR/ca.crt
Environment=ETCDCTL_CERT=$ETCD_DATA_DIR/server.crt
Environment=ETCDCTL_KEY=$ETCD_DATA_DIR/server.key
ExecStart=/usr/local/bin/etcd-defrag.sh
Type=oneshot

[Install]
WantedBy=default.target
EOF
cat <<EOF > "/etc/systemd/system/etcd-defrag.timer"
[Unit]
Description=etcd auto compact/defrag timer

[Timer]
Unit=etcd-defrag.service
OnCalendar=*-*-* *:00/5:00

[Install]
WantedBy=timers.target
EOF

for file in /etc/{bash.bashrc,profile.d/etcdctl.sh}; do
 [ -f "$file" ] &&
     sed -i '/^# BEGIN external-etcd-envs$/,/^# END external-etcd-envs$/d' "$file"
 cat <<EOF >> "$file"

# BEGIN external-etcd-envs
# The following lines are managed by external etcd installer, please do not modify them manually.
export ETCD_DATA_DIR=$ETCD_DATA_DIR
export ETCD_CONFIG_DIR=$ETCD_CONFIG_DIR
export ETCD_STATE_DIR=$ETCD_STATE_DIR
export ETCD_LOG_DIR=$ETCD_LOG_DIR
export ETCDCTL_CACERT=\$ETCD_DATA_DIR/ca.crt
export ETCDCTL_CERT=\$ETCD_DATA_DIR/server.crt
export ETCDCTL_KEY=\$ETCD_DATA_DIR/server.key
# END external-etcd-envs
EOF
done

mkdir -p "$ETCD_LOG_DIR"
systemctl daemon-reload
mapfile -td '' units < <(printf '%s\0' "${units[@]}" | tac -s '')
for unit in "${units[@]}"; do
 if systemctl list-unit-files | grep -q "^$unit"; then
     systemctl enable --now "$unit"
 else
     echo "Warning: unit $unit not found, skipping"
 fi
done

# <<<<< END client-script

# >>>>> BEGIN etcd-config

# Human-readable name for this member.
name: etcd

# Path to the data directory.
data-dir: ${ETCD_STATE_DIR}

# Path to the dedicated wal directory.
# wal-dir: ${ETCD_STATE_DIR}/member-wal/wal

# List of URLs to listen on for peer traffic.
listen-peer-urls: https://localhost:2380

# List of URLs to listen on for client grpc traffic (and http as long as --listen-client-http-urls is not specified).
listen-client-urls: https://localhost:2379

# List of this member's peer URLs to advertise to the rest of the cluster.
initial-advertise-peer-urls: https://localhost:2380

# List of this member's client URLs to advertise to the public. The client URLs advertised should be accessible to
# machines that talk to etcd cluster. etcd client libraries parse these URLs to connect to the cluster.
advertise-client-urls: https://localhost:2379

# Initial cluster configuration for bootstrapping.
initial-cluster: etcd-0=https://etcd-0:2380,etcd-1=https://etcd-1:2380,etcd-2=https://etcd-2:2380

# Initial cluster state ('new' when bootstrapping a new cluster or 'existing' when adding new members to an existing
# cluster). After successful initialization (bootstrapping or adding), flag is ignored on restarts.
initial-cluster-state: new

# Initial cluster token for the etcd cluster during bootstrap. Specifying this can protect you from unintended
# cross-cluster interaction when running multiple clusters.
initial-cluster-token: random-token

# Number of committed transactions to trigger a snapshot to disk.
snapshot-count: 100000 # **

# Time (in milliseconds) of a heartbeat interval.
heartbeat-interval: 250 # **

# Time (in milliseconds) for an election to timeout. See tuning documentation for details.
election-timeout: 2500 # **

# Whether to fast-forward initial election ticks on boot for faster election.
initial-election-tick-advance: true

# Maximum number of snapshot files to retain (0 is unlimited).
max-snapshots: 10 # **

# Maximum number of wal files to retain (0 is unlimited).
max-wals: 10 # **

# Raise alarms when backend size exceeds the given quota (0 defaults to low space quota).
quota-backend-bytes: 34359738368 # **

# Maximum time before commit the backend transaction.
backend-batch-interval: 100000000 # **

# Maximum operations before commit the backend transaction.
backend-batch-limit: 1000 # **

# Maximum number of operations permitted in a transaction.
max-txn-ops: 16000 # **

# Maximum client request size in bytes the server will accept.
max-request-bytes: 128000000 # **

# Maximum concurrent streams that each client can open at a time.
max-concurrent-streams: 20000 # **

# Enable GRPC gateway.
enable-grpc-gateway: true

# Minimum duration interval that a client should wait before pinging server.
grpc-keepalive-min-time: 5000000000 # **

# Frequency duration of server-to-client ping to check if a connection is alive (0 to disable).
grpc-keepalive-interval: 7200000000000 # **

# Additional duration of wait before closing a non-responsive connection (0 to disable).
grpc-keepalive-timeout: 20000000000 # **

# Enable to run an additional Raft election phase.
pre-vote: true

# Auto compaction retention length. 0 means disable auto compaction.
auto-compaction-retention: '0' # **

# Interpret 'auto-compaction-retention', one of: periodic|revision. 'periodic' for duration based retention, defaulting
# to hours if no time unit is provided (e.g. '5m'). 'revision' for revision number based retention.
auto-compaction-mode: periodic # **

client-transport-security:
# Path to the client server TLS cert file.
cert-file: ${ETCD_DATA_DIR}/server.crt

# Path to the client server TLS key file.
key-file: ${ETCD_DATA_DIR}/server.key

# Enable client cert authentication.
client-cert-auth: true

# Path to the client server TLS trusted CA cert file.
trusted-ca-file: ${ETCD_DATA_DIR}/ca.crt

peer-transport-security:
# Path to the peer server TLS cert file.
cert-file: ${ETCD_DATA_DIR}/peer.crt

# Path to the peer server TLS key file.
key-file: ${ETCD_DATA_DIR}/peer.key

# Enable peer client cert authentication.
client-cert-auth: true

# Path to the peer server TLS trusted CA cert file.
trusted-ca-file: ${ETCD_DATA_DIR}/ca.crt

# List of supported TLS cipher suites between client/server and peers (empty will
# be auto-populated by Go).
cipher-suites:
- TLS_AES_128_GCM_SHA256
- TLS_AES_256_GCM_SHA384
- TLS_CHACHA20_POLY1305_SHA256
- TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
- TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
- TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256
- TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
- TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
- TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256

# Minimum TLS version supported by etcd. Possible values: TLS1.2, TLS1.3.
tls-min-version: TLS1.2

# Maximum TLS version supported by etcd. Possible values: TLS1.2, TLS1.3 (empty will be auto-populated by Go).
tls-max-version: TLS1.3

# Specify a v3 authentication token type and its options ('simple' or 'jwt').
auth-token: jwt,pub-key=${ETCD_DATA_DIR}/jwt_ec384.pub,priv-key=${ETCD_DATA_DIR}/jwt_ec384,sign-method=ES384,ttl=3600s

# Specify the cost / strength of the bcrypt algorithm for hashing auth passwords. Valid values are between 4 and 31.
bcrypt-cost: 10

# Currently only supports 'zap' for structured logging.
logger: zap

# Specify 'stdout' or 'stderr' to skip journald logging even when running under systemd, or list of output targets.
log-outputs:
- ${ETCD_LOG_DIR}/etcd.log

# Configures log level. Only supports debug, info, warn, error, panic, or fatal.
log-level: info

# Enable log rotation of a single log-outputs file target.
enable-log-rotation: true

# Configures log rotation if enabled with a JSON logger config. MaxSize(MB), MaxAge(days, 0=no limit),
# MaxBackups(0=no limit), LocalTime(use computers local time), Compress(gzip).
log-rotation-config-json: '{"maxsize": 128, "maxage": 7, "maxbackups": 1024, "localtime": true, "compress": true}'

# ExperimentalEnableLeaseCheckpoint enables primary lessor to persist lease remainingTTL to prevent indefinite
# auto-renewal of long lived leases.
experimental-enable-lease-checkpoint: true

# Enable persisting remainingTTL to prevent indefinite auto-renewal of long lived leases. Always enabled in v3.6.
# Should be used to ensure smooth upgrade from v3.5 clusters with this feature enabled. Requires
# experimental-enable-lease-checkpoint to be enabled.
experimental-enable-lease-checkpoint-persist: true

# Disables fsync, unsafe, will cause data loss.
unsafe-no-fsync: false

# <<<<< END etcd-config

# >>>>> BEGIN defrag-script

#!/bin/bash -x
SNAPSHOT_THRESHOLD=${SNAPSHOT_THRESHOLD:-90}
DEFRAG_THRESHOLD=${DEFRAG_THRESHOLD:-90}
(( SNAPSHOT_THRESHOLD >= 100 )) &&
 SNAPSHOT_THRESHOLD=90
(( SNAPSHOT_THRESHOLD <= 0 )) &&
 SNAPSHOT_THRESHOLD=90
(( DEFRAG_THRESHOLD >= 100 )) &&
 DEFRAG_THRESHOLD=90
(( DEFRAG_THRESHOLD <= 0 )) &&
 DEFRAG_THRESHOLD=90
. "$HOME/.profile"
disk_quota=$(yq -r '.quota-backend-bytes' "$ETCD_CONFIG_DIR/config.yaml")
read disk_size db_size revision < <(
 etcdctl endpoint status -w json | yq -r '.0.Status | .dbSize + " " + .dbSizeInUse + " " + .header.revision'
)
db_usage=$((100 * db_size / disk_size))
disk_usage=$((100 * disk_size / disk_quota))
(( db_usage >= SNAPSHOT_THRESHOLD )) &&
 etcdctl compact "$revision"
(( disk_usage >= DEFRAG_THRESHOLD )) &&
 etcdctl defrag
exit 0

# <<<<< END defrag-script

    7.6 启动etcd data集群。

    shell
    mkdir /root/etcd-install

# 需要替换真实ip地址
bash etcd-bootstrap.sh <etcd data节点ip, eg: 192.168.200.238 192.168.200.237 192.168.200.236> -c /root/etcd-install -p etcdData

    7.7 启动etcd Pod集群。

    shell
    mkdir /root/etcd-install

# 需要替换真实ip地址
bash etcd-bootstrap.sh <etcd data节点ip, eg: 192.168.200.235 192.168.200.234 192.168.200.233> -c /root/etcd-install -p etcdPods

    7.8 启动etcd events-leases集群。

    shell
    mkdir /root/etcd-install

# 需要替换真实ip地址
bash etcd-bootstrap.sh <etcd data节点ip, eg: 192.168.200.232 192.168.200.231 192.168.200.230> -c /root/etcd-install -p etcdPods --use-tmpfs

    7.9 确定etcd是否启动。

    在所有etcd节点执行systemctl status etcd，若出现running字样则说明etcd已经启动。

    7.10 在所有etcd节点执行如下命令查看etcd集群是否健康：

    • 若输出表格中HEALTH列均为true，则表明集群是健康状态。
    shell
    ETCDCTL_API=3 etcdctl --endpoints=https://127.0.0.1:2379 \
--cacert=/usr/local/share/etcd/ca.crt \     # 替换为实际证书地址
--cert=/usr/local/share/etcd/server.crt \   # 替换为实际证书地址
--key=/usr/local/share/etcd/server.key \    # 替换为实际证书地址
endpoint health --write-out=table

    7.11 复制etcd证书到/etc/kubernetes/pki目录下。

    shell
    tar -xf /root/etcd-install/etcd-certs.tar.gz

mkdir -p /etc/kubernetes/pki/etcd
cp /root/etcd-install/apiserver-etcd-client.{crt,key} /etc/kubernetes/pki/
cp /root/etcd-install/etcd-ca.{crt,key} /etc/kubernetes/pki/etcd

  8. 安装kubeadm，集群内所有节点都安装。

shell
ARCH=$(uname -m)
case $ARCH in
x86_64) ARCH="amd64";;
aarch64) ARCH="arm64";;
esac
VERSION="1.28.15-large-scale-cluster"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/kubernetes/kubernetes/releases/download/v${VERSION}/bin/linux/${ARCH}/kubeadm

cp kubeadm /usr/local/bin
chmod +x /usr/local/bin/kubeadm

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/kubernetes/kubernetes/releases/download/v${VERSION}/cmd/krel/templates/latest/kubeadm/10-kubeadm.conf
sed "s:/usr/bin:/usr/local/bin:g" 10-kubeadm.conf | sudo tee /etc/systemd/system/kubelet.service.d/10-kubeadm.conf
  1. 安装kubelet，并配置service文件，集群内所有节点都安装。
shell
ARCH=$(uname -m)
case $ARCH in
x86_64) ARCH="amd64";;
aarch64) ARCH="arm64";;
esac
VERSION="1.28.15-large-scale-cluster"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/kubernetes/kubernetes/releases/download/v${VERSION}/bin/linux/${ARCH}/kubelet

cp kubelet /usr/local/bin
chmod +x /usr/local/bin/kubelet

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/kubernetes/kubernetes/releases/download/v${VERSION}/cmd/krel/templates/latest/kubelet/kubelet.service

mkdir -p /etc/systemd/system/kubelet.service.d
sed "s:/usr/bin:/usr/local/bin:g" kubelet.service | sudo tee /etc/systemd/system/kubelet.service
  1. 安装kubectl，集群内所有节点都安装。
shell
ARCH=$(uname -m)
case $ARCH in
x86_64) ARCH="amd64";;
aarch64) ARCH="arm64";;
esac
VERSION="1.28.15-large-scale-cluster"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/kubernetes/kubernetes/releases/download/v${VERSION}/bin/linux/${ARCH}/kubectl

cp kubelet /usr/local/bin
chmod +x /usr/local/bin/kubectl
  1. 安装crictl，集群内所有节点都安装。
shell
ARCH=$(uname -m)
case $ARCH in
x86_64) ARCH="amd64";;
aarch64) ARCH="arm64";;
esac
VERSION="1.28.0"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/kubernetes-sigs/cri-tools/releases/download/v${VERSION}/crictl-v${VERSION}-linux-${ARCH}.tar.gz

tar Cxzvf /usr/local/bin crictl-v${VERSION}-linux-${ARCH}.tar.gz

  1. 安装负载均衡器，仅在负载均衡节点安装即可。

    12.1 安装haproxy和keepalived组件。

    shell
    yum install haproxy keepalived -y

    12.2 修改haproxy配置文件，增加对kube-apiserver的负载均衡等，编辑vi /etc/haproxy/haproxy.cfg文件，修改后配置文件示例如下：

    shell
    #---------------------------------------------------------------------
# Example configuration for a possible web application.  See the
# full configuration options online.
#
#   https://www.haproxy.org/download/1.8/doc/configuration.txt
#
#---------------------------------------------------------------------

global
  log         127.0.0.1 local2  # 日志输出配置
  chroot      /var/lib/haproxy  # chroot运行路径
  pidfile     /var/run/haproxy.pid  # 进程pid文件
  user        haproxy  # 运行haproxy的用户
  group       haproxy  # 运行haproxy的用户组
  daemon  # 以守护进程的形式运行
  maxconn     400000  # 默认最大链接数(单个进程最大并发连接数)

defaults
  mode                    http  # 处理级别(7层代理http， 4层tcp)
  log                     global # 引入global定义的日志格式
  option                  httplog  # 日志类别为http日志格式
  option                  dontlognull  # 不记录健康检查日志信息
  retries                 3  # 3次链接失败认为服务器不可用
  timeout queue           1m  # 默认队列超时时间
  timeout connect         5s  # 默认连接超时时间
  timeout client          1m  # 默认客户端超时时间
  timeout server          1m  # 默认服务器连接超时时间
  timeout http-keep-alive 5s  # 默认持久性连接超时时间
  timeout check           5s  # 设置心跳检查超时时间

frontend main
  mode tcp  # 制作代理，证书都用后端的
  bind *:6443  # 用于绑定ip和端口，可以将发送到该端口的请求代理到后端服务器上
  default_backend         k8s-apiserver  # 后端服务器，没有指定use_bakend时使用默认后端

backend k8s-apiserver
  mode tcp
  balance     roundrobin  # 后端服务器组的负载均衡算法
  option httpchk GET /readyz
  http-check expect status 200
  server  k8s-master01 192.168.200.238:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master02 192.168.200.237:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master03 192.168.200.236:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master04 192.168.200.235:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master05 192.168.200.234:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master06 192.168.200.233:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master07 192.168.200.232:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master08 192.168.200.231:6443 check check-ssl verify none #只需要修改ip即
  server  k8s-master09 192.168.200.230:6443 check check-ssl verify none #只需要修改ip即

    12.3 启动haproxy并配置开机自启。

    shell
    systemctl enable haproxy
systemctl start haproxy

    12.4 修改keepalived配置，编辑vi /etc/keepalived/keepalived.conf文件，修改后配置文件示例如下：

    shell
    vrrp_script chk_haproxy {  # 配置检测脚本，每隔3s检测haproxy状态，连续失败三次则认为此节点上haproxy不可用，连续成功2次则认为可用。
script "killall -0 haproxy"
interval 3
weight 100
fall 3
rise 2
}

vrrp_script chk_apiserver {  # 配置检测脚本，每隔3s检测集群是否可访问状态，连续失败三次则认为此节点上haproxy不可用，连续成功2次则认为可用。
script "/etc/keepalived/check_apiserver.sh"
interval 3
weight -100
fall 3
rise 2
}

vrrp_instance VI_1 {  # vrrp实例
  state BACKUP  # 服务器的状态
  interface eth0  # 绑定的网卡，需填写服务器上真实网卡
  virtual_router_id 32  # 这里设置VRID这里非常重要相同的VRID为一个组他将决定多播的MAC地址
  priority 100  # 权重 0~255
  advert_int 1  # 设置MASTER与BACKUP负载均衡之间同步即主备间通告时间检查的时间间隔,单位为秒，默认1s
  nopreempt  # 设置不抢占master，这里只能设置在state为backup的节点上而且这个节点的优先级必须别另外的高，比如master因为异常将调度圈交给了备份serve，master serve检修后没问题，如果不设置nopreempt就会将调度权重新夺回来，这样就容易造成业务中断问题
  authentication {
      auth_type PASS
      auth_pass 1111
  }
  virtual_ipaddress {
      192.168.200.241/24 dev eth0  # 需要修改为真实的浮动ip和网卡名字
  }
  track_script {  # 执行脚本
      chk_haproxy
      chk_apiserver
  }
}

vrrp_instance VI_2 {
  state BACKUP
  interface eth0  # 绑定的网卡，需填写服务器上真实网卡
  virtual_router_id 33
  priority 100
  advert_int 1
  nopreempt
  authentication {
      auth_type PASS
      auth_pass 1111
  }
  virtual_ipaddress {
      192.168.200.241/24 dev eth0  # 需要修改为真实的浮动ip和网卡名字
  }
  track_script {  # 执行脚本
      chk_haproxy
      chk_apiserver
  }
}

    12.5 配置检查集群状态脚本，编辑vi /etc/keepalived/check_apiserver.sh，并填写如下内容。

    shell
    #!/bin/sh
VIP_ADDRESS="192.168.200.241"  # 此处填写haproxy绑定的前端虚拟IP地址
VIP_BIND_PORT="6443"           # 此处填写haproxy绑定的前端端口
if ip addr | grep -q ${VIP_ADDRESS}; then
  curl --silent --max-time 2 --insecure https://${VIP_ADDRESS}:${VIP_BIND_PORT}/healthz
  exit $?
fi
exit 0

    12.6 启动keepalived，并配置开机自启。

    shell
    systemctl enable keepalived
systemctl start keepalived

  2. 安装基础组件包，并加载ipvs内核模块，集群内所有节点都安装配置。

shell
# 安装基础组件包
yum install -y ipvsadm ipset iptables conntrack socat openssl

# 加载ipvs内核模块
cat <<EOF | sudo tee /etc/modules-load.d/ipvs.conf
    # Load IPVS at boot
    ip_vs
    ip_vs_rr
    ip_vs_wrr
    ip_vs_sh
    ip_vs_lc
    nf_conntrack
EOF

    sudo modprobe -- ip_vs
    sudo modprobe -- ip_vs_rr
    sudo modprobe -- ip_vs_wrr
    sudo modprobe -- ip_vs_sh
    sudo modprobe -- nf_conntrack
    sudo modprobe -- ip_vs_lc
    # 确认内核模块加载成功
    sudo lsmod | grep -e ip_vs -e nf_conntrack

  1. 初始化第一个控制面节点。

    14.1 生成kubeadm配置文件。

    shell
    kubeadm config print init-defaults --component-configs KubeletConfiguration,KubeProxyConfiguration > init.yaml

    14.2 修改配置文件，配置外置etcd、kube-proxy模式、kubelet等，修改后的配置文件如下所示：

    yaml
    apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: 192.168.200.238  # 修改为当前节点ip
bindPort: 6443
nodeRegistration:
criSocket: unix:///var/run/containerd/containerd.sock
imagePullPolicy: IfNotPresent
name: node3  # 修改为当前节点名字
taints: null
---
apiServer:
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
controlPlaneEndpoint: 192.168.200.241:6443  # 添加vip地址和端口号
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  external:
    endpoints:  # 配置外部etcd
      - https://192.168.200.238:2379
      - https://192.168.200.237:2379
      - https://192.168.200.236:2379
      - https://192.168.200.235:2379
      - https://192.168.200.234:2379
      - https://192.168.200.233:2379
      - https://192.168.200.232:2379
      - https://192.168.200.231:2379
      - https://192.168.200.230:2379
    caFile: /etc/kubernetes/pki/etcd/etcd-ca.crt  # 配置etcd证书
    certFile: /etc/kubernetes/pki/apiserver-etcd-client.crt  # 配置etcd证书
    keyFile: /etc/kubernetes/pki/apiserver-etcd-client.key  # 配置etcd证书
imageRepository: cr.openfuyao.cn/openfuyao  # 修改镜像拉取地址
kind: ClusterConfiguration
kubernetesVersion: 1.28.15-large-scale-cluster  # 修改k8s版本
networking:
podSubnet: "172.0.0.0/8"  # 添加pod网络段，不要与主机IP冲突
dnsDomain: cluster.local
serviceSubnet: 10.96.0.0/12
scheduler: {}
---
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
anonymous:
  enabled: false
webhook:
  cacheTTL: 0s
  enabled: true
x509:
  clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
mode: Webhook
webhook:
  cacheAuthorizedTTL: 0s
  cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 169.254.20.10  # 修改为local-dns侦听地址
clusterDomain: cluster.local
containerRuntimeEndpoint: ""
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging:
flushFrequency: 0
options:
  json:
    infoBufferSize: "0"
verbosity: 0
memorySwap: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s
eventBurst: 100  # kubelet添加参数
eventRecordQPS: 50  # kubelet添加参数
kubeAPIBurst: 100  # kubelet添加参数
kubeAPIQPS: 50  # kubelet添加参数
serializeImagePulls: false  # kubelet添加参数
maxParallelImagePulls: 10  # kubelet添加参数
nodeLeaseDurationSeconds: 40  # kubelet添加参数
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
bindAddressHardFail: false
clientConnection:
acceptContentTypes: ""
burst: 0
contentType: ""
kubeconfig: /var/lib/kube-proxy/kubeconfig.conf
qps: 0
clusterCIDR: ""
configSyncPeriod: 0s
conntrack:
maxPerCore: null
min: null
tcpCloseWaitTimeout: null
tcpEstablishedTimeout: null
detectLocal:
bridgeInterface: ""
interfaceNamePrefix: ""
detectLocalMode: ""
enableProfiling: false
healthzBindAddress: ""
hostnameOverride: ""
iptables:
localhostNodePorts: null
masqueradeAll: false
masqueradeBit: null
minSyncPeriod: 0s
syncPeriod: 0s
ipvs:
excludeCIDRs: null
minSyncPeriod: 0s
scheduler: "lc"  # 修改调度算法为lc
strictARP: false
syncPeriod: 0s
tcpFinTimeout: 0s
tcpTimeout: 0s
udpTimeout: 0s
kind: KubeProxyConfiguration
logging:
flushFrequency: 0
options:
  json:
    infoBufferSize: "0"
verbosity: 0
metricsBindAddress: ""
mode: "ipvs"  # 修改为ipvs模式
nodePortAddresses: null
oomScoreAdj: null
portRange: ""
showHiddenMetricsForVersion: ""
winkernel:
enableDSR: false
forwardHealthCheckVip: false
networkName: ""
rootHnsEndpointName: ""
sourceVip: ""

    14.3 生成集群所需证书，在一个控制面节点生成即可。

    shell
    for cert_name in ca apiserver apiserver-kubelet-client front-proxy-ca front-proxy-client; do
  kubeadm init phase certs "$cert_name" --config init.yaml
done

kubeadm init phase certs sa

    14.4 生成kube-apiserver、kube-controller-manager、kube-scheduler静态pod yaml。

    shell
    kubeadm init phase control-plane all --config=init.yaml

    14.5 修改kube-apiserver静态pod yaml，需要增加调优参数并配置外置etcd等，修改后kube-apiserver静态pod yaml示例如下：

    yaml
    apiVersion: v1
kind: Pod
metadata:
annotations:
  kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 192.168.200.238:6443
creationTimestamp: null
labels:
  component: kube-apiserver
  tier: control-plane
name: kube-apiserver
namespace: kube-system
spec:
containers:
- command:
  - /kube-apiserver  # 前方添加/
  - --advertise-address=192.168.200.238
  - --allow-privileged=true
  - --authorization-mode=Node,RBAC
  - --client-ca-file=/etc/kubernetes/pki/ca.crt
  - --enable-admission-plugins=NodeRestriction
  - --enable-bootstrap-token-auth=true
  - --etcd-cafile=/etc/kubernetes/pki/etcd/etcd-ca.crt
  - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
  - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
  - --etcd-servers=https://192.168.200.238:2379,https://192.168.200.237:2379,https://192.168.200.236:2379  # 配置元数据分库存储
  - --etcd-servers-overrides=/pods#https://192.168.200.235:2379;https://192.168.200.234:2379;https://192.168.200.233:2379,/events#https://192.168.200.232:2379;https://192.168.200.231:2379;https://192.168.200.230:2379,/leases#https://192.168.200.232:2379;https://192.168.200.231:2379;https://192.168.200.230:2379   # 配置元数据分库存储
  - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
  - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
  - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
  - --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt
  - --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client.key
  - --requestheader-allowed-names=front-proxy-client
  - --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
  - --requestheader-extra-headers-prefix=X-Remote-Extra-
  - --requestheader-group-headers=X-Remote-Group
  - --requestheader-username-headers=X-Remote-User
  - --secure-port=6443
  - --service-account-issuer=https://kubernetes.default.svc.cluster.local
  - --service-account-key-file=/etc/kubernetes/pki/sa.pub
  - --service-account-signing-key-file=/etc/kubernetes/pki/sa.key
  - --service-cluster-ip-range=10.96.0.0/12
  - --tls-cert-file=/etc/kubernetes/pki/apiserver.crt
  - --tls-private-key-file=/etc/kubernetes/pki/apiserver.key
  # 添加如下额外启动参数
  - --goaway-chance=0.005
  - --delete-collection-workers=100
  - --max-requests-inflight=1800
  - --max-mutating-requests-inflight=5000
  - --default-not-ready-toleration-seconds=60
  - --default-unreachable-toleration-seconds=60
  - --etcd-max-call-recv-msg-size=2147483647
  - --etcd-max-call-send-msg-size=110100480
  - --hw-access-log-path=/etc/kubernetes/audit/kube-apiserver-access.log
  - --hw-access-log-check-log-deleted-period=5
  - --hw-access-log-permissions=0600
  - --audit-log-path=/etc/kubernetes/audit/kube-apiserver-audit.log
  - --audit-log-maxage=30
  - --audit-log-maxbackup=50
  - --audit-log-maxsize=10
  - --audit-log-mode=batch
  - --audit-policy-file=/etc/kubernetes/audit/audit-policy.yaml
  env:
     - name: GOGC
       value: "50"
     - name: GOMAXPROCS
       value: "32"
     - name: HTTP2_READ_IDLE_TIMEOUT_SECONDS
       value: "8"
     - name: HTTP2_PING_TIMEOUT_SECONDS
       value: "4"
  image: cr.openfuyao.cn/openfuyao/kube-apiserver:v1.28.15-large-scale-cluster   # 修改项
  imagePullPolicy: IfNotPresent
  livenessProbe:
    failureThreshold: 8
    httpGet:
      host: 192.168.200.238
      path: /livez
      port: 6443
      scheme: HTTPS
    initialDelaySeconds: 10
    periodSeconds: 10
    timeoutSeconds: 15
  name: kube-apiserver
  readinessProbe:
    failureThreshold: 3
    httpGet:
      host: 192.168.200.238
      path: /readyz
      port: 6443
      scheme: HTTPS
    periodSeconds: 1
    timeoutSeconds: 15
  resources:
    requests:
      cpu: 250m
  startupProbe:
    failureThreshold: 24
    httpGet:
      host: 192.168.200.238
      path: /livez
      port: 6443
      scheme: HTTPS
    initialDelaySeconds: 10
    periodSeconds: 10
    timeoutSeconds: 15
  volumeMounts:
  - mountPath: /etc/ssl/certs
    name: ca-certs
    readOnly: true
  - mountPath: /etc/pki
    name: etc-pki
    readOnly: true
  - mountPath: /etc/kubernetes/pki
    name: k8s-certs
    readOnly: true
  - mountPath: /etc/kubernetes/audit  # 添加项
    name: k8s-audit  # 添加项
hostNetwork: true
priority: 2000001000
priorityClassName: system-node-critical
securityContext:
  seccompProfile:
    type: RuntimeDefault
volumes:
- hostPath:
    path: /etc/ssl/certs
    type: DirectoryOrCreate
  name: ca-certs
- hostPath:  # 添加项
    path: /etc/kubernetes/audit  # 添加项
    type: DirectoryOrCreate  # 添加项
  name: k8s-audit  # 添加项
- hostPath:
    path: /etc/pki
    type: DirectoryOrCreate
  name: etc-pki
- hostPath:
    path: /etc/kubernetes/pki
    type: DirectoryOrCreate
  name: k8s-certs
status: {}

    14.6 修改kube-schdeuler静态pod yaml，增加调优参数等，修改后kube-schdeuler静态pod yaml示例如下：

    yaml
    apiVersion: v1
kind: Pod
metadata:
creationTimestamp: null
labels:
  component: kube-scheduler
  tier: control-plane
name: kube-scheduler
namespace: kube-system
spec:
containers:
- command:
  - /kube-scheduler    # 前方添加/
  - --authentication-kubeconfig=/etc/kubernetes/scheduler.conf
  - --authorization-kubeconfig=/etc/kubernetes/scheduler.conf
  - --bind-address=127.0.0.1
  - --kubeconfig=/etc/kubernetes/scheduler.conf
  - --leader-elect=true
  - --leader-elect-lease-duration=65s
  - --leader-elect-renew-deadline=60s
  # 添加启动参数
  - --kube-api-burst=10000
  - --kube-api-qps=5000
  env:
    - name: GOGC
      value: "70"
    - name: GOMEMLIMIT
      value: "67500MiB"
    - name: HTTP2_READ_IDLE_TIMEOUT_SECONDS
      value: "15"
    - name: HTTP2_PING_TIMEOUT_SECONDS
      value: "10"
    - name: GOMAXPROCS
      value: "32"
  image: cr.openfuyao.cn/openfuyao/kube-scheduler:v1.28.15-large-scale-cluster  #修改项
  imagePullPolicy: IfNotPresent
  livenessProbe:
    failureThreshold: 8
    httpGet:
      host: 127.0.0.1
      path: /healthz
      port: 10259
      scheme: HTTPS
    initialDelaySeconds: 10
    periodSeconds: 10
    timeoutSeconds: 15
  name: kube-scheduler
  resources:
    requests:
      cpu: 100m
  startupProbe:
    failureThreshold: 24
    httpGet:
      host: 127.0.0.1
      path: /healthz
      port: 10259
      scheme: HTTPS
    initialDelaySeconds: 10
    periodSeconds: 10
    timeoutSeconds: 15
  volumeMounts:
  - mountPath: /etc/kubernetes/scheduler.conf
    name: kubeconfig
    readOnly: true
hostNetwork: true
priority: 2000001000
priorityClassName: system-node-critical
securityContext:
  seccompProfile:
    type: RuntimeDefault
volumes:
- hostPath:
    path: /etc/kubernetes/scheduler.conf
    type: FileOrCreate
  name: kubeconfig
status: {}

    14.7 修改kube-controller-manager静态pod yaml，增加调优参数等，修改后kube-controller-manager静态pod yaml示例如下：

    yaml
    apiVersion: v1
kind: Pod
metadata:
creationTimestamp: null
labels:
  component: kube-controller-manager
  tier: control-plane
name: kube-controller-manager
namespace: kube-system
spec:
containers:
- command:
  - /kube-controller-manager  # 前面增加/
  - --allocate-node-cidrs=true
  - --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
  - --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
  - --bind-address=127.0.0.1
  - --client-ca-file=/etc/kubernetes/pki/ca.crt
  - --cluster-cidr=172.0.0.0/8
  - --cluster-name=kubernetes
  - --cluster-signing-cert-file=/etc/kubernetes/pki/ca.crt
  - --cluster-signing-key-file=/etc/kubernetes/pki/ca.key
  - --controllers=*,bootstrapsigner,tokencleaner
  - --kubeconfig=/etc/kubernetes/controller-manager.conf
  - --leader-elect=true
  - --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
  - --root-ca-file=/etc/kubernetes/pki/ca.crt
  - --service-account-private-key-file=/etc/kubernetes/pki/sa.key
  - --service-cluster-ip-range=10.96.0.0/12
  - --use-service-account-credentials=true
  - --leader-elect=true
  # 添加启动参数
  - --leader-elect-lease-duration=65s
  - --leader-elect-renew-deadline=60s
  - --kube-api-burst=15000
  - --kube-api-qps=10000
  - --node-monitor-period=5s
  - --node-monitor-grace-period=1m0s
  env:
    - name: GOGC
      value: "70"
    - name: GOMEMLIMIT
      value: "67500MiB"
    - name: HTTP2_READ_IDLE_TIMEOUT_SECONDS
      value: "15"
    - name: HTTP2_PING_TIMEOUT_SECONDS
      value: "10"
    - name: GOMAXPROCS
      value: "32"
  image: cr.openfuyao.cn/openfuyao/kube-controller-manager:v1.28.15-large-scale-cluster
  imagePullPolicy: IfNotPresent
  livenessProbe:
    failureThreshold: 8
    httpGet:
      host: 127.0.0.1
      path: /healthz
      port: 10257
      scheme: HTTPS
    initialDelaySeconds: 10
    periodSeconds: 10
    timeoutSeconds: 15
  name: kube-controller-manager
  resources:
    requests:
      cpu: 200m
  startupProbe:
    failureThreshold: 24
    httpGet:
      host: 127.0.0.1
      path: /healthz
      port: 10257
      scheme: HTTPS
    initialDelaySeconds: 10
    periodSeconds: 10
    timeoutSeconds: 15
  volumeMounts:
  - mountPath: /etc/ssl/certs
    name: ca-certs
    readOnly: true
  - mountPath: /etc/pki
    name: etc-pki
    readOnly: true
  - mountPath: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
    name: flexvolume-dir
  - mountPath: /etc/kubernetes/pki
    name: k8s-certs
    readOnly: true
  - mountPath: /etc/kubernetes/controller-manager.conf
    name: kubeconfig
    readOnly: true
hostNetwork: true
priority: 2000001000
priorityClassName: system-node-critical
securityContext:
  seccompProfile:
    type: RuntimeDefault
volumes:
- hostPath:
    path: /etc/ssl/certs
    type: DirectoryOrCreate
  name: ca-certs
- hostPath:
    path: /etc/pki
    type: DirectoryOrCreate
  name: etc-pki
- hostPath:
    path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
    type: DirectoryOrCreate
  name: flexvolume-dir
- hostPath:
    path: /etc/kubernetes/pki
    type: DirectoryOrCreate
  name: k8s-certs
- hostPath:
    path: /etc/kubernetes/controller-manager.conf
    type: FileOrCreate
  name: kubeconfig
status: {}

    14.8 创建审计日志目录，并配置审计日志文件。

    shell
    audit_policy_file="/etc/kubernetes/audit/audit-policy.yaml"
mkdir -p $(dirname ${audit_policy_file})

cat <<EOF | sudo tee ${audit_policy_file}
apiVersion: audit.k8s.io/v1
kind: Policy
omitStages:
- RequestReceived
rules:
- level: None
  verbs: ["get", "list", "watch"]
- level: None
  resources:
    - group: ""
      resources: ["events"]
- level: None
  verbs: ["update", "patch"]
  resources:
    - group: ""
      resources: ["*/status", "*/logs"]
    - group: "apps"
      resources: ["*/status"]
    - group: "batch"
      resources: ["*/status"]
- level: None
  userGroups: ["system:nodes", "system:kube-controller-managers", "system:kube-schedulers"]
  verbs: ["update", "patch"]
  namespaces: ["kube-system", "kube-node-lease"]
  resources:
    - group: "coordination.k8s.io"
      resources: ["leases"]
- level: Metadata
EOF

    14.9 执行如下命令，初始化控制节点。

    shell
    kubeadm init --config init.yaml --skip-phases preflight,certs,etcd,control-plane

    14.10 复制kubeconfig，便于执行kubectl命令。

    shell
    rm -rf "$HOME/.kube"
mkdir -p $HOME/.kube
sudo cp -f /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

    14.11 在node3上复制控制面证书与init.yaml到其他控制节点。

    shell
    # 节点ip替换后注意修改这里的ip地址
for ip in 192.168.200.238 192.168.200.237 192.168.200.236 192.168.200.235 192.168.200.234 192.168.200.233 192.168.200.232 192.168.200.231 192.168.200.230; do
   for cert_name in ca.crt ca.key apiserver-etcd-client.crt apiserver-etcd-client.key front-proxy-ca.crt front-proxy-ca.key front-proxy-client.crt front-proxy-client.key sa.key sa.pub; do
       SOURCE_FILE="/etc/kubernetes/pki/${cert_name}"
       DEST_DIR="/etc/kubernetes/pki/"

       ssh ${ip} "mkdir -p ${DEST_DIR}"
       scp ${SOURCE_FILE} root@${ip}:${DEST_DIR}

       echo "${cert_name} success"
   done

   for cert_name in etcd-ca.crt etcd-ca.key; do
       SOURCE_FILE="/etc/kubernetes/pki/etcd/${cert_name}"
       DEST_DIR="/etc/kubernetes/pki/etcd/"

       ssh ${ip} "mkdir ${DEST_DIR}"
       scp ${SOURCE_FILE} root@${ip}:${DEST_DIR}

       echo "${cert_name} success"
   done

   scp init.yaml root@${ip}:/root
done

  2. 向集群中添加其他控制节点，此步骤内操作需要在其他所有控制节点执行，此处给出在一个控制节点执行的命令示例。

    15.1 使用root用户登录node4节点。

    15.2 修改init.yaml，主要修改advertiseAddress和name两个字段，示例如下：

    yaml
    apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: 192.168.200.237  # 修改为当前节点ip
bindPort: 6443
nodeRegistration:
criSocket: unix:///var/run/containerd/containerd.sock
imagePullPolicy: IfNotPresent
name: node4  # 修改为当前节点名字
taints: null
……

    15.3 生成kube-apiserver、kube-controller-manager、kube-scheduler静态pod yaml。

    shell
    kubeadm init phase control-plane all --config=init.yaml

    15.4 修改kube-apiserver、kube-controller-manager、kube-scheduler静态pod yaml，可参考初始化第一个控制节点给出的yaml示例修改。

    15.5 创建审计日志目录，并配置审计日志文件，直接参考初始化第一个控制节点给出的示例修改即可。

    15.6 执行如下命令，生成apiserver和kubelet证书。

    shell
    kubeadm init certs/apiserver,certs/apiserver-kubelet-client --config init.yaml

    15.7 执行如下命令，加入节点。

    shell
    kubeadm join 192.168.200.241:6443 \   # 注意替换为真实的IP地址和端口号
--token abcdef.0123456789abcdef  \    # 注意替换为真实的token
--discovery-token-ca-cert-hash sha256:b67da97497548ace159d120ac148e94518753615e91e5062ebb474ea557a18f2 \  # 注意替换为真实的证书校验值
--control-plane \
--skip-phases control-plane-prepare/download-certs,control-plane-prepare/certs,control-plane-prepare/control-plane,control-plane-join/etcd,preflight \
--node-name node4 -v=5

    说明：
    对于只有kube-apiserver pod的控制面节点，可在完成join操作后执行rm -f /etc/kubernetes/manifests/kube-controller-manager.yaml和/etc/kubernetes/manifests/kube-scheduler.yaml命令删除静态pod。

  3. 执行如下命令向集群中添加工作节点。

说明：
需要在所有工作节点执行下面命令。

shell
kubeadm join 192.168.200.241:6443 \   # 注意替换为真实的IP地址和端口号
    --token abcdef.0123456789abcdef  \    # 注意替换为真实的token
    --discovery-token-ca-cert-hash sha256:b67da97497548ace159d120ac148e94518753615e91e5062ebb474ea557a18f2 \  # 注意替换为真实的证书校验值
    --node-name node12 -v=5  # 注意替换为真实的node-name

  1. 部署local-dns组件。

    17.1 获取local-dns部署yaml。

    shell
    wget https://raw.githubusercontent.com/kubernetes/kubernetes/refs/heads/master/cluster/addons/dns/nodelocaldns/nodelocaldns.yaml

    17.2 修改yaml文件，并执行如下命令进行部署。

    shell
    kubedns=`kubectl get svc kube-dns -n kube-system -o jsonpath={.spec.clusterIP}`
domain="cluster.local"    # 注意修改为真实集群域名
localdns="169.254.20.10"  # 注意修改为真是local-dns侦听地址
sed -i "s/__PILLAR__LOCAL__DNS__/$localdns/g; s/__PILLAR__DNS__DOMAIN__/$domain/g; s/,__PILLAR__DNS__SERVER__//g; s/__PILLAR__CLUSTER__DNS__/$kubedns/g" nodelocaldns.yaml

kubectl apply -f nodelocaldns.yaml

  2. 部署calico组件。

    18.1 安装基础组件，配置NetworkManager不管理Calico网络插件创建的虚拟网卡接口，集群内所有节点都要安装并配置。

    shell
    yum install -y NetworkManager

cat > /etc/NetworkManager/conf.d/calico.conf<<EOF
   [keyfile]
   unmanaged-devices=interface-name:cali*;interface-name:tunl*;interface-name:vxlan.calico;interface-name:vxlan-v6.calico;interface-name:wireguard.cali;interface-name:wg-v6.cali
EOF
systemctl restart NetworkManager

    18.2 登录node3节点，安装calicoctl组件，仅在node3节点安装即可。

    shell
    ARCH=$(uname -m)
case $ARCH in
   x86_64) ARCH="amd64";;
   aarch64) ARCH="arm64";;
esac
VERSION="3.27.3"

wget https://openfuyao.obs.cn-north-4.myhuaweicloud.com/projectcalico/calicoctl/releases/download/v${VERSION}/calicoctl-linux-${ARCH}

cp -f calicoctl-linux-${ARCH} /usr/local/bin/calicoctl
chmod +x /usr/local/bin/calicoctl

    18.3 获取calico部署yaml并执行如下命令进行安装。

    shell
    kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v${VERSION}/manifests/tigera-operator.yaml

curl https://raw.githubusercontent.com/projectcalico/calico/v${VERSION}/manifests/custom-resources.yaml -O

yq -e 'select(di == 0).spec.calicoNetwork.ipPools[0].cidr = "172.0.0.0/8"' -i ./resources/custom-resources.yaml
kubectl apply -f ./resources/custom-resources.yaml

    18.4 执行如下命令，配置calico bgp路由反射模式。

    shell
    cat > BGPConfiguration.yaml<<EOF
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
 name: default
spec:
 logSeverityScreen: Info
 nodeToNodeMeshEnabled: false
 asNumber: 64512
EOF

cat > BGPPeer.yaml<<EOF
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
 name: peer-with-route-reflectors
spec:
 nodeSelector: all()
 peerSelector: route-reflector == 'true'
EOF

calicoctl apply -f BGPConfiguration.yaml

rr_node_names="node3 node5 node7 node9 node11"  # 注意替换为集群内真实的node-name
IFS=',' read -r -a nodes <<< "$rr_node_names"
for node_name in "${nodes[@]}"; do
   kubectl label node "${node_name}" route-reflector=true
   kubectl annotate node "${node_name}" projectcalico.org/RouteReflectorClusterID="244.0.0.1"
done

calicoctl apply -f BGPPeer.yaml

后续步骤 ​

此处主要用于配置组件参数调优，以提升超大规模集群的稳定性。

  1. 执行如下命令，配置coreDNS参数调优，只在一个控制节点执行即可。
shell
echo '
apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |-
    .:53 {
        errors
        health {
            lameduck 5s
        }
        ready
        kubernetes cluster.local in-addr.arpa ip6.arpa {
            fallthrough in-addr.arpa ip6.arpa
            ttl 600
        }
        prometheus :9153
        forward . /etc/resolv.conf {
            max_concurrent 1000
        }
        cache 600
        loop
        reload
        loadbalance
    }
' | kubectl apply -f -

# 节点打标签
SchedulerNodeNames="node7,node8,node9,node10,node11"  # 注意修改为集群内真实node-name
IFS=',' read -r -a nodes <<< "$SchedulerNodeNames"
for node in "${nodes[@]}"; do
    kubectl label nodes "$node" large-cluster/coredns=coredns --overwrite
done

# 修改副本数量、添加nodeSelector
kubectl patch deployment/coredns -n kube-system --type='merge' \
  -p '{
    "spec": {
      "replicas": 5,
      "template": {
        "spec": {
          "nodeSelector": {
            "large-cluster/coredns": "coredns"
          }
        }
      }
    }
  }'

结论 ​

此部署方案支持部署一套超大规模场景下的高可用K8s集群，此部署形态的控制面已经过模拟测试，可支撑1.6w节点的K8s集群稳定运行。

参考资料 ​

遵循 木兰宽松许可证第2版（MulanPSL2）

版权所有 © 2026 openFuyao 保留一切权利ICP备案号：粤A2-20044005号-306粤公网安备44030002007300号
隐私政策法律声明关于cookies
隐私政策法律声明关于cookies
遵循木兰宽松许可证第2版（MulanPSL2）
版权所有 © 2026 openFuyao 保留一切权利
粤公网安备44030002007300号ICP备案号：粤A2-20044005号-306
